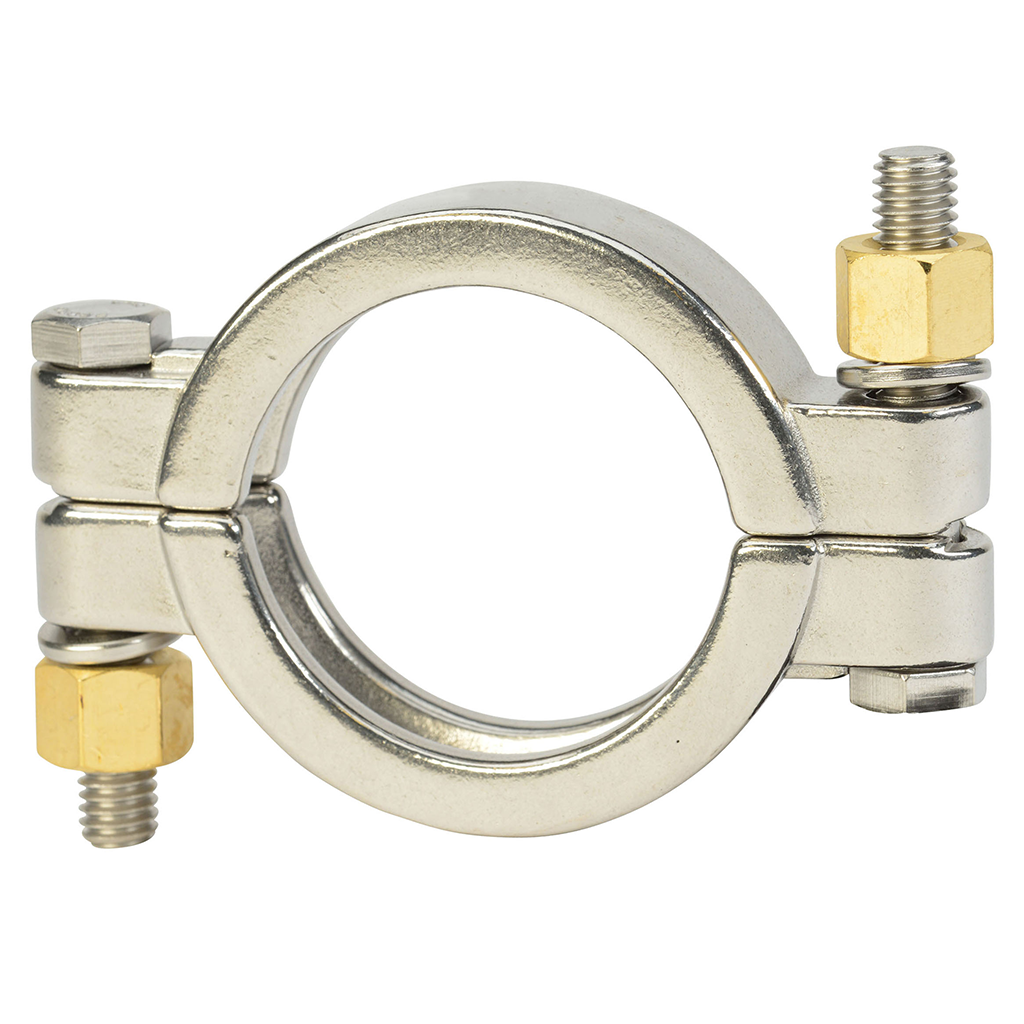

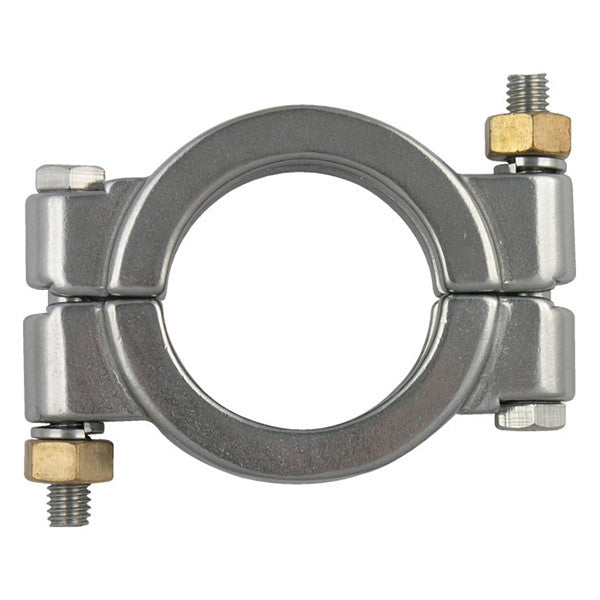

The 13MHP High-Pressure Bolted Tri-Clamp is a bolted clamp for use with Tri-Clamp ferrules. This sanitary clamp is made of 304 stainless steel and is 3A certified. We do not recommend PTFE gaskets for use with the 13MHP. Other sizes are available upon request; please call with any inquiries.

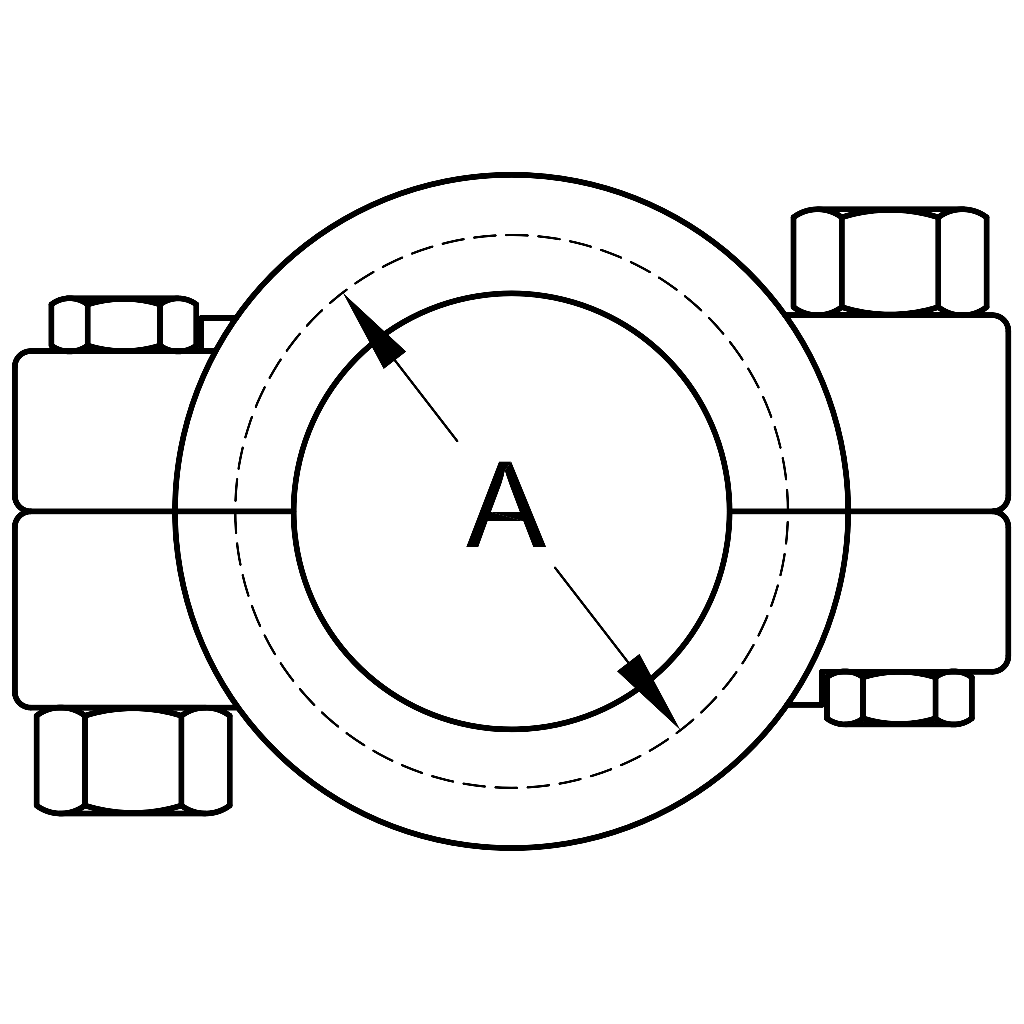

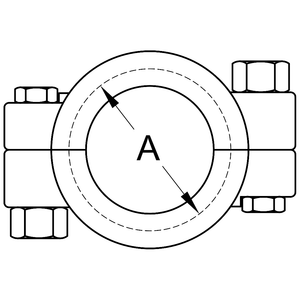

| Tube O.D. | Service Pressure Rating @70°F | Service Pressure Rating @250°F | A Measure |
| 1/2" & 3/4" | 1500 |
1200 |
1.06 |
| 1" & 1-1/2" | 1500 | 1200 | 2.05 |
| 2" | 1000 | 800 | 2.58 |
| 2-1/2" | 1000 | 800 | 3.11 |
| 3" | 1000 | 800 | 3.64 |
| 4" | 800 | 600 | 4.74 |
| 5" | 300 | 200 | 5.83 |
| 6" | 300 | 200 | 6.63 |
| 8" | 250 | 150 | 8.64 |
| 10" | 200 | 125 | 10.74 |
| 12" | 150 | 100 | 12.74 |
* All nuts are tightened to 20 ft. lb. of torque
