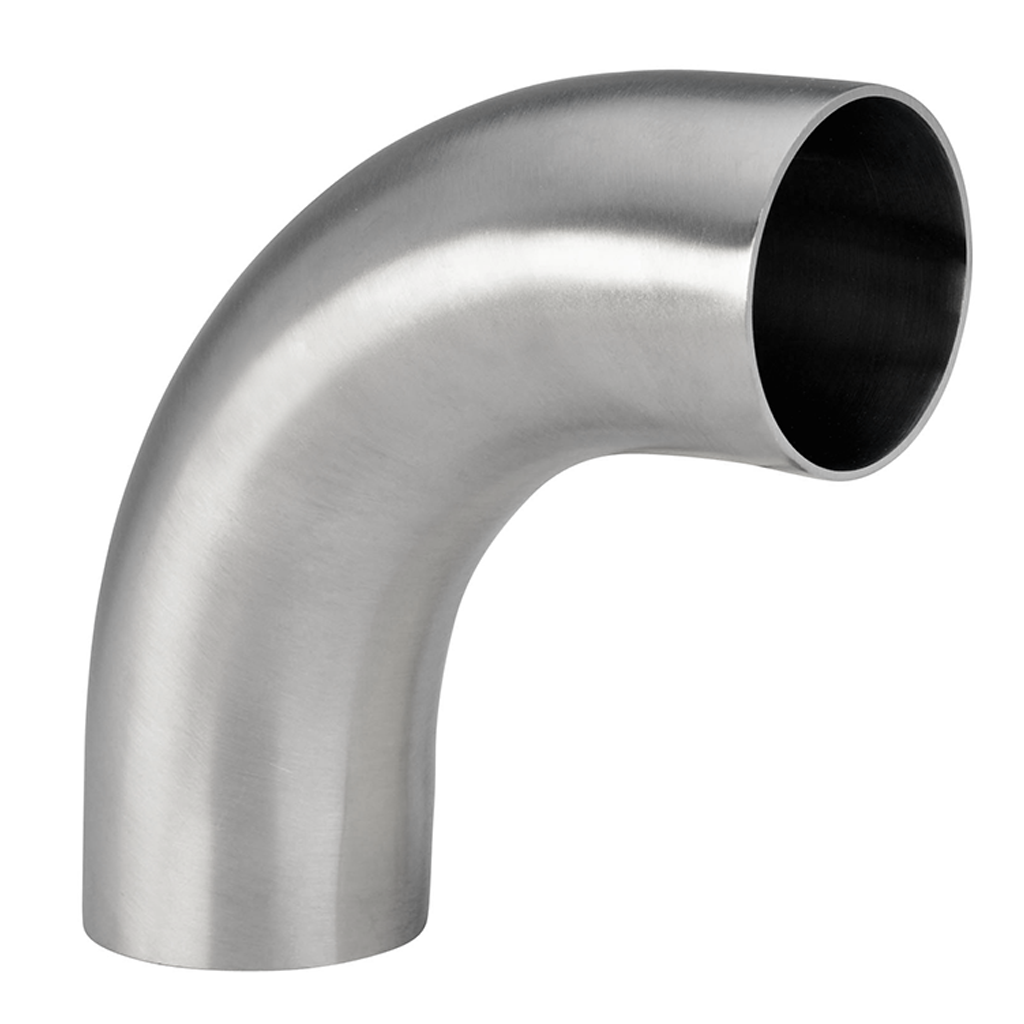

L2S - Butt-Weld Long 90° Elbow - Polished
From$16.79
Unit price
/
Unavailable
Description
Description
The L2S Butt-Weld Long 90° Elbow is a sanitary weld elbow designed to be welded into permanent installations. This fitting is constructed of 304 or 316 stainless steel, and comes in sizes ranging from 1/2" to 6".
Other sizes are available upon request; please call with any inquiries.

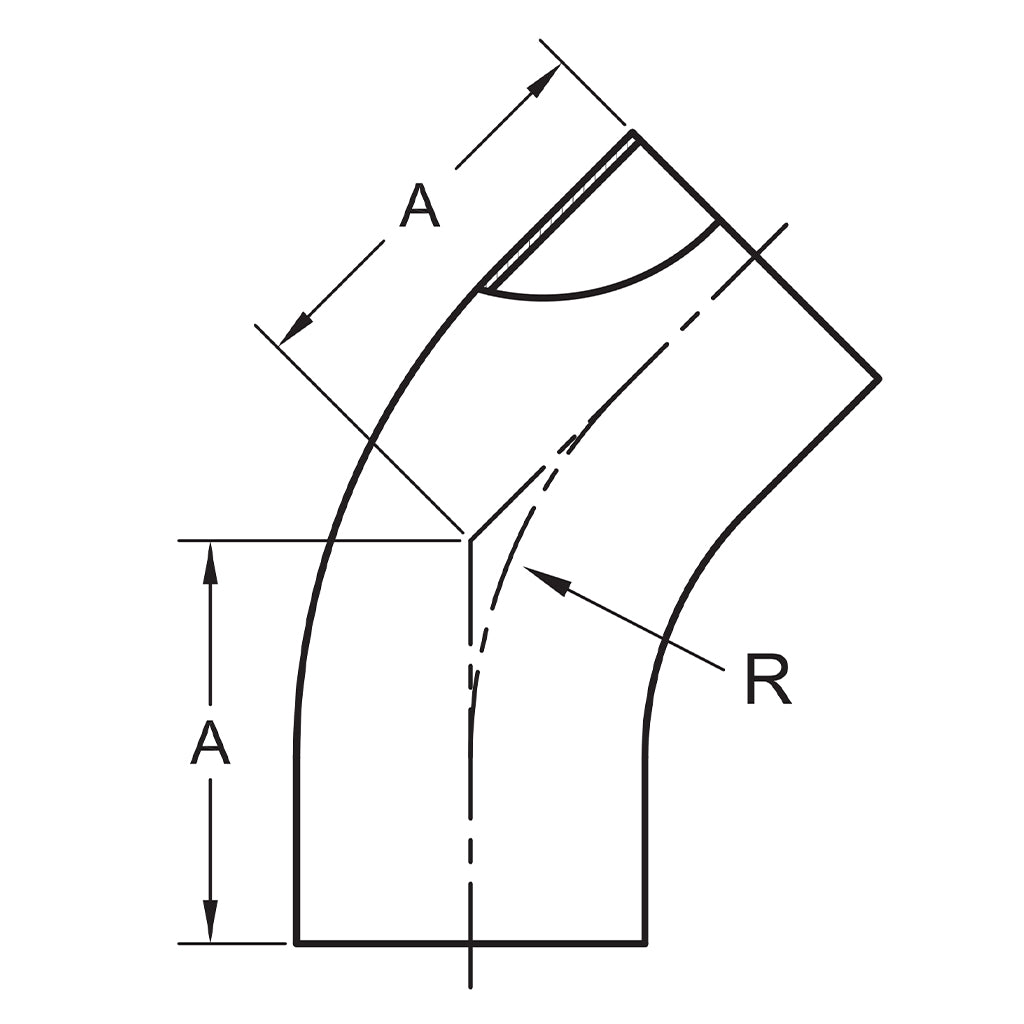

| Tube O.D. | A | R |
| 1/2" | 3.00 | 1.12 |
| 3/4" |
3.00 |
1.12 |
| 1" | 2.06 | 1.50 |
| 1-1/2" |
2.94 |
2.25 |
| 2" |
4.06 |
3.00 |
| 2-1/2" | 5.19 | 3.75 |
| 3" | 6.31 | 4.50 |
| 4" | 8.31 | 6.00 |
| 6" | 11.25 | 9.00 |
