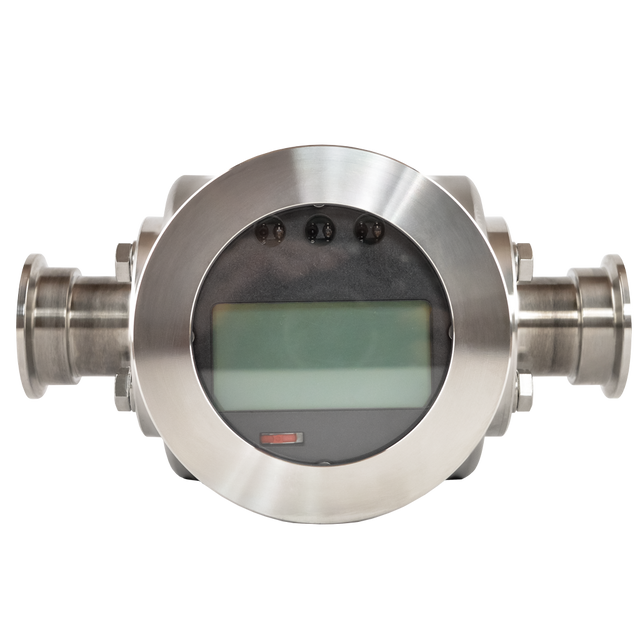

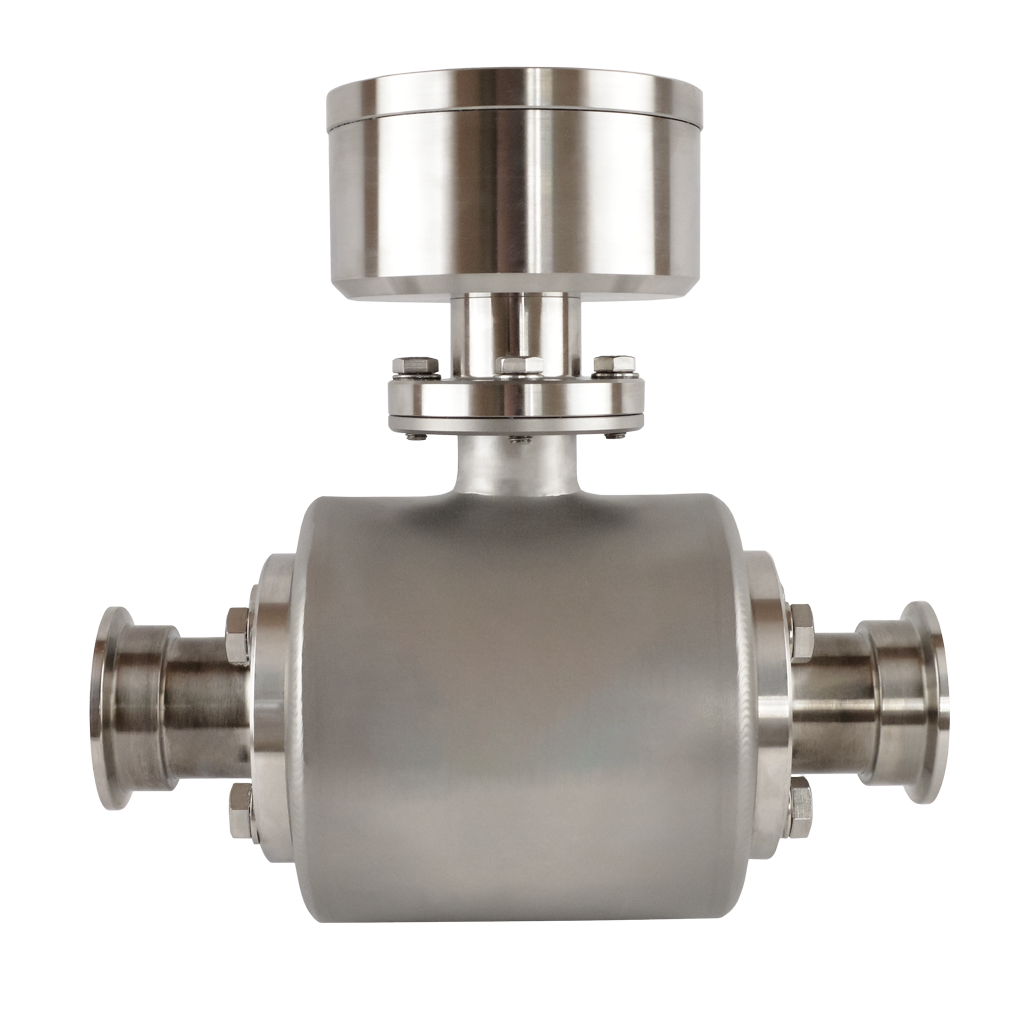

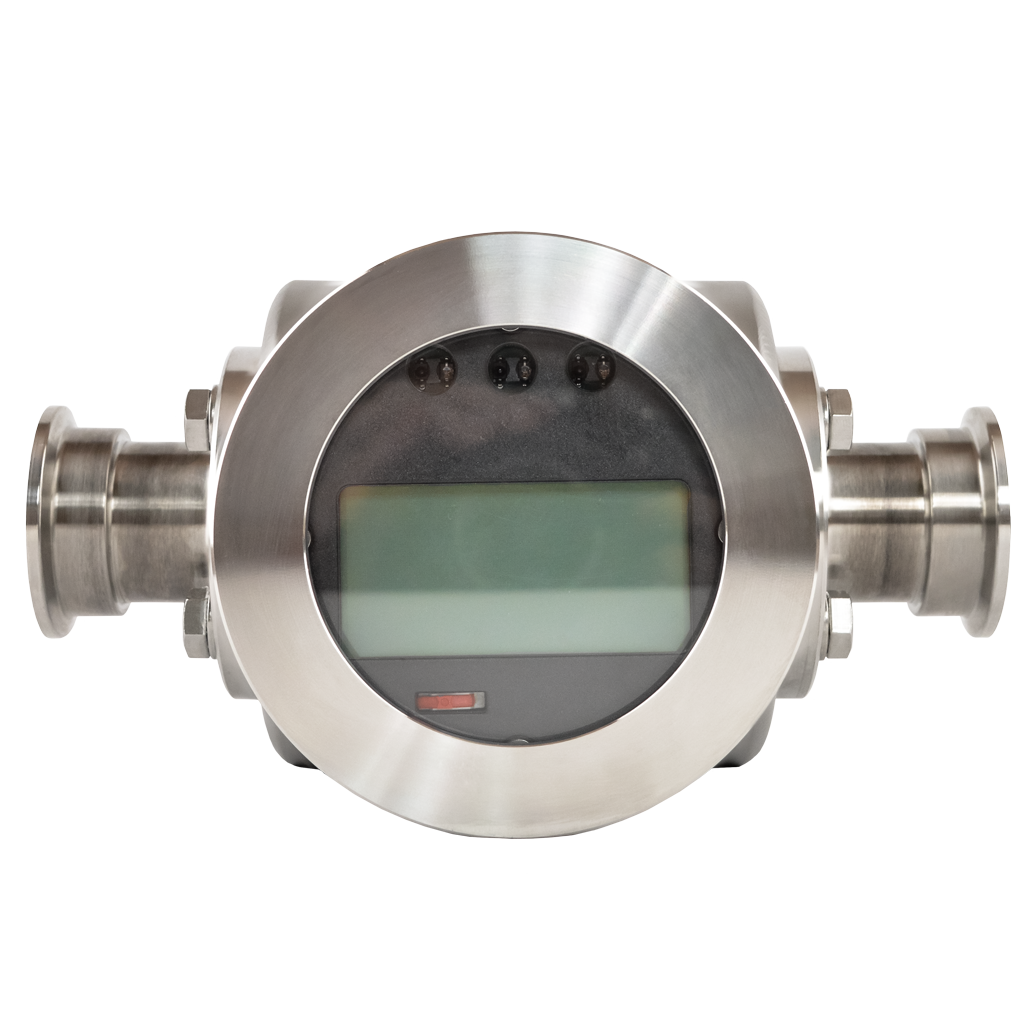

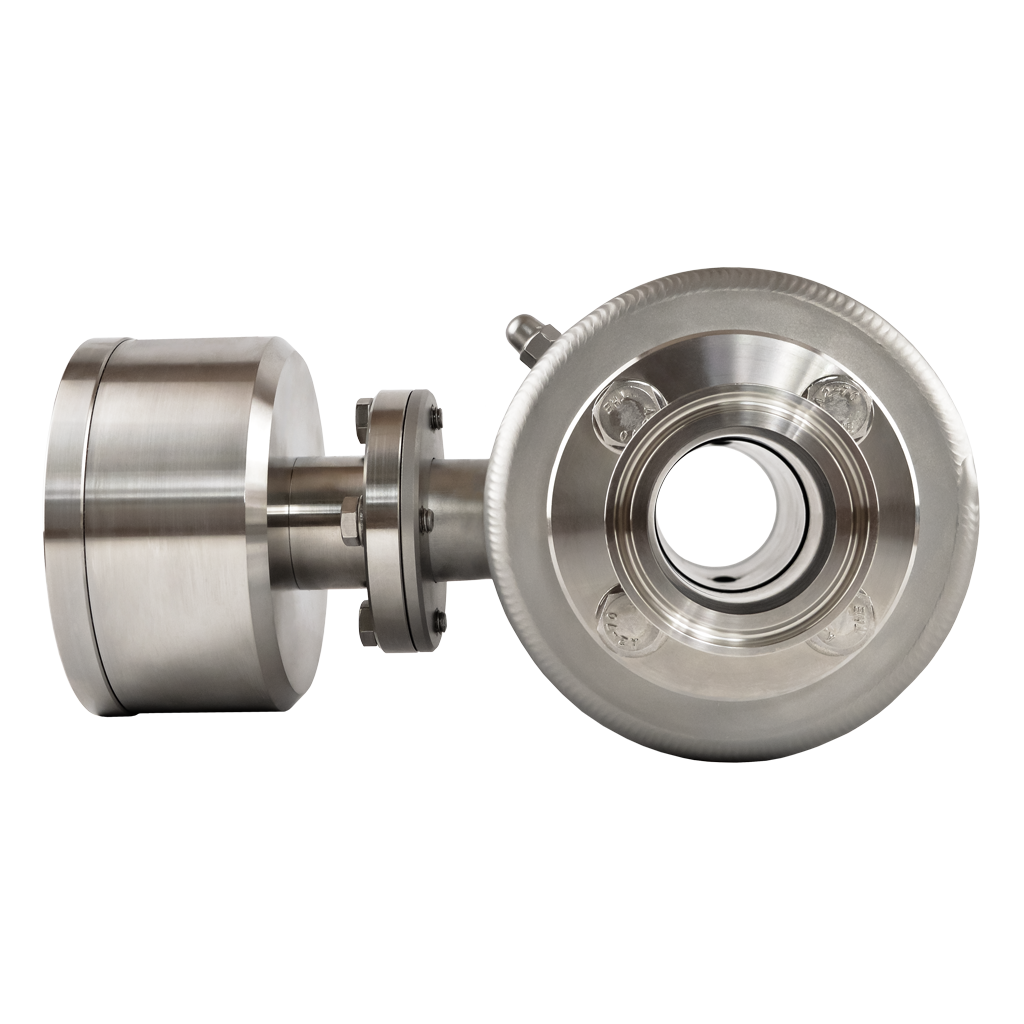

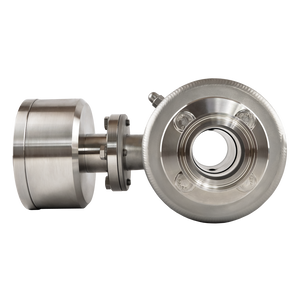

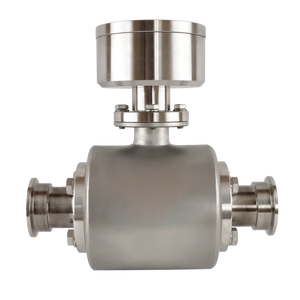

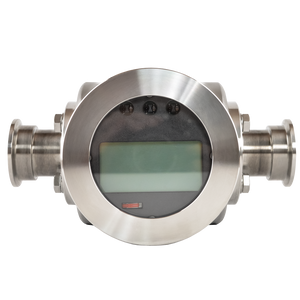

FMQ Electromagnetic Flow Meter
Description
Description
The FMQ is an electromagnetic flow meter by Anderson-Negele. The FMQ delivers reliable and consistent measurements of conductive media. Designed to fill a variety of roles in numerous industries the FMQ is able to handle applications including batching, filling, dosing, filling, and more. This electromagnetic flow meter is built to be durable and robust, making it suitable for the harsh environments of processing facilities. The encapsulated measuring system, stainless steel construction, and vacuum-proof coating make the FMQ one of the most durable flow meters on the market. It is designed to withstand CIP cleaning applications and handle temperatures of 130 °C for up to 30 minutes. The FMQ is able to work with all conductive media, including both high and low viscosities and pastes with less than 5% solid content.
Features:
- Stainless steel construction with EPDM elastomers
- 3-A Conforming
- Compact design
| Pipe DN (mm) | Connections | Measurement Range |
| 10 mm | 1/2" Tri-Clamp |
30 - 3, 000 l/h (0.132 - 13.208 gpm) |
| 15 mm | 1" Tri-Clamp |
70 - 7,000 l/h (0.308 - 30.820 gpm) |
| 25 mm | 1" Tri-Clamp |
180 - 18,000 l/h (0.792 - 79.251 gpm) |
| 32 mm | 1-1/2" Tri-Clamp |
300 - 30,000 l/h (1.321 - 132.086 gpm) |
| 40 mm | 1-1/2" Tri-Clamp |
450 - 45,000 l/h (1.981 - 198.129 gpm) |
| 50 mm | 2" Tri-Clamp |
700 - 70,000 l/h (3.082 - 308.201 gpm) |
| 65 mm | 2-1/2" Tri-Clamp |
1,200 - 120,000 l/h (5.283 - 528.344 gpm) |
| 80 mm | 3" Tri-Clamp |
1,800 - 180,000 l/h (7.925 - 792.516 gpm) |
| 100 mm | 4" Tri-Clamp |
2,800 - 280,000 (12.328 - 1232.803 gpm) |
