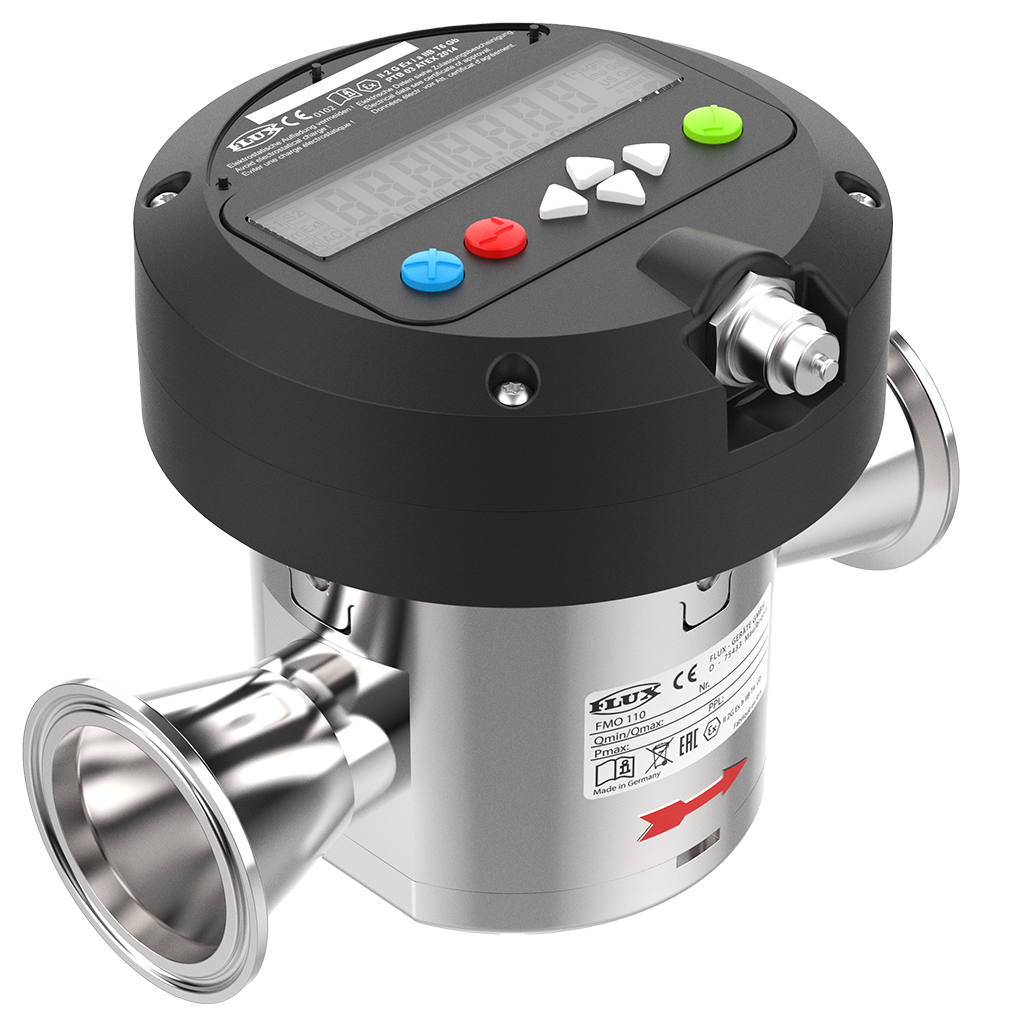

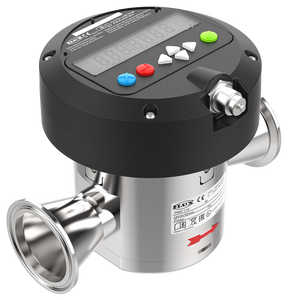

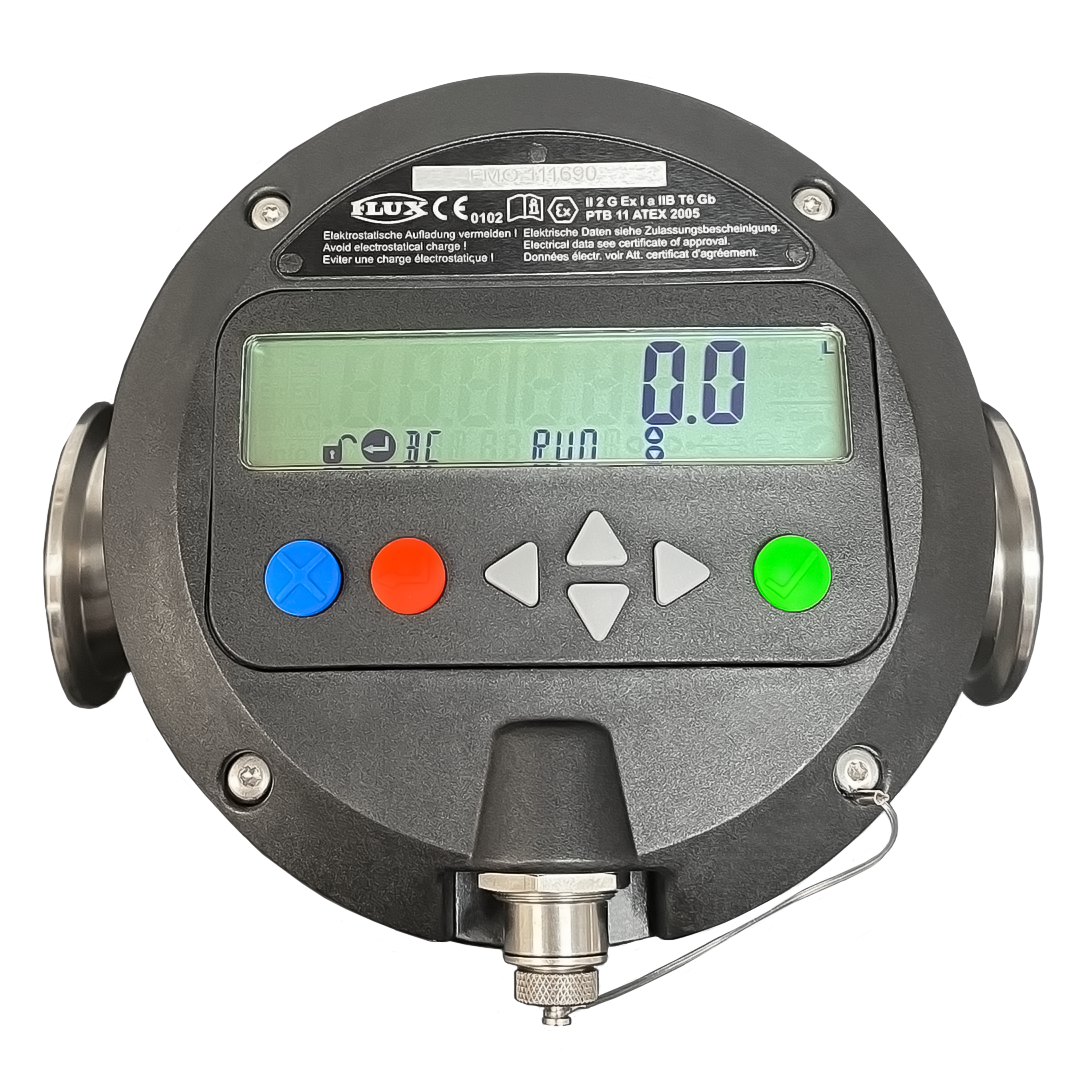

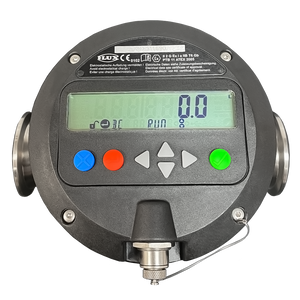

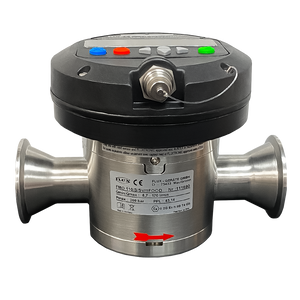

FMO110 Foodgrade Oval Rotor Flowmeter

The FMO oval rotor flow meter is a sanitary positive displacement flow meter with Tri-Clamp ends designed for food and beverage processing applications. The oval rotor design allows the FMO flow meter to handle a variety of viscosities, ranging from thin to high, and pulsating flow while minimizing pressure loss. The FMO 110 has high precision and high chemical resistance. This flowmeter has a stainless steel housing and is FDA and Foodsafe certified for use in food and beverage processing applications. The FMO 110 has two output signals that can used to control valves or pumps for automatic batching control.

General Specifications

• Connections: Tri-Clamp
• Maximum Viscosity: 500,000 cPs
• Repeat Accuracy: ±0,03%
• Pulse/litre: 45
• Maximum Operating Pressure: 16 bar
• Protect Class: 54
• Two Discreet Batching Outputs
• Explosion Proof rated for Zone 1

Materials

• Housing: Stainless Steel
• Oval Rotors: Stainless Steel
• Shaft: Stainless Steel
• Seal: FKM/FFKM/EPDM

Flow Rate accuracy

• At Viscosity < 5 mPas: ± 2%
• At Viscosity > 5 mPas: ± 0,5%

 Flow Rate Range

• At Viscosity < 5 mPas: 9,5-150 LPM (2.5 - 39 GPM)
• At Viscosity > 5 mPas: 5,7-170 LPM (1.5 - 44 GPM)
