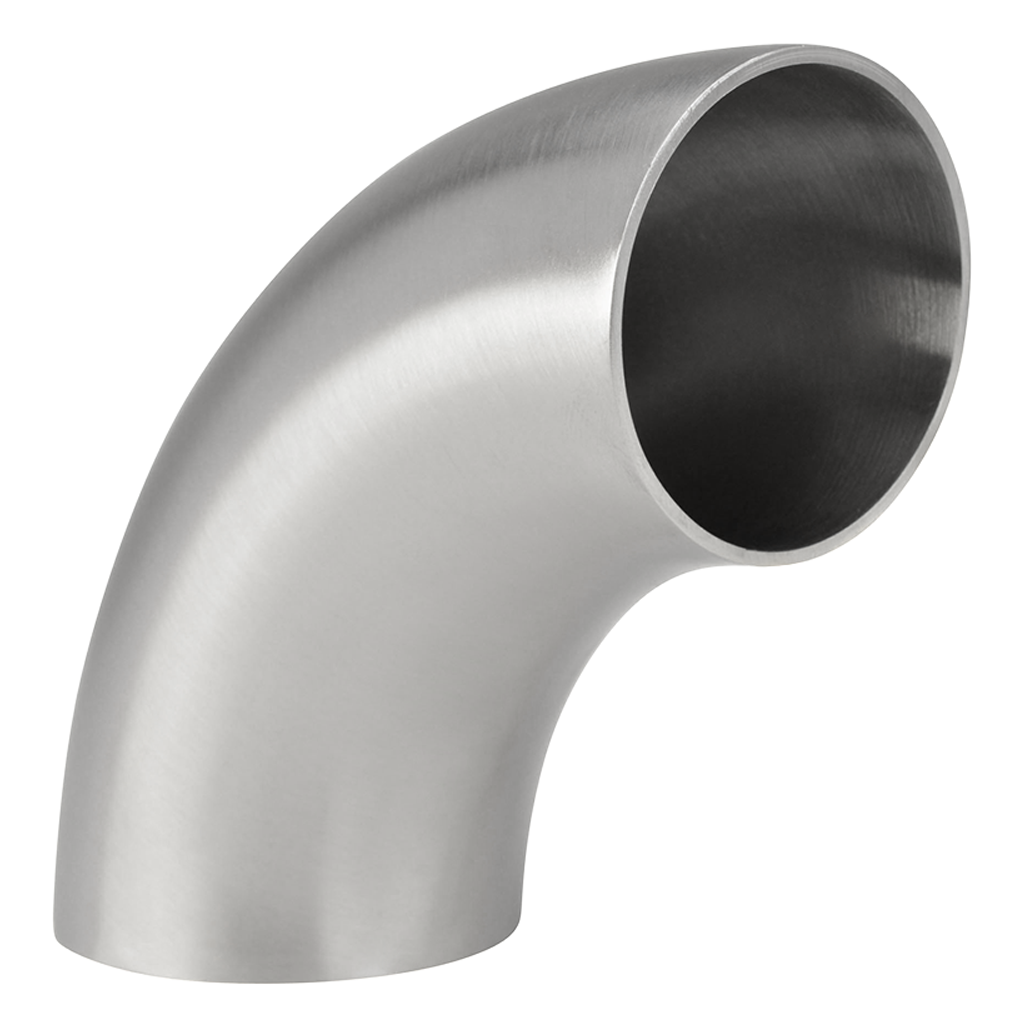

The 2WCL Butt-Weld Short 90° Elbow is a sanitary fitting designed to be welded into permanent installations. The butt-weld short elbow creates a 90° angle within sanitary tubing. This fitting is constructed of either 304 or 316 stainless steel, and comes in sizes ranging from 1/2" to 12".
Other sizes are available upon request; please call with any inquiries.

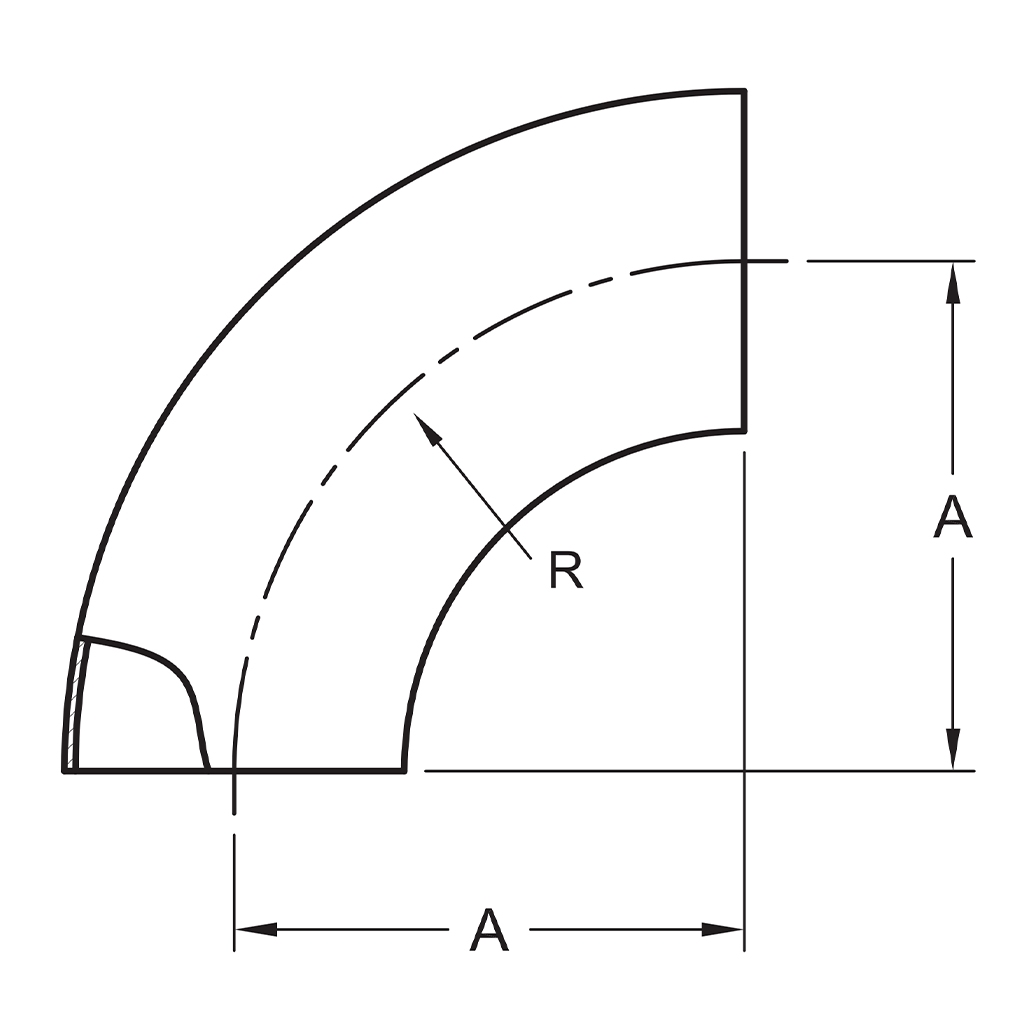

| Tube O.D. | A | R |
| 1/2" | 1.12 | 1.12 |
| 3/4" |
1.12 |
1.12 |
| 1" | 1.50 | 1.50 |
| 1-1/2" |
2.25 |
2.25 |
| 2" |
3.00 |
3.00 |
| 2-1/2" | 3.75 | 3.75 |
| 3" | 4.50 | 4.50 |
| 4" | 6.00 | 6.00 |
| 6" | 9.00 | 9.00 |
| 8" | 12.00 | 12.00 |
| 10" | 15.00 | 15.00 |
| 12" | 18.00 | 18.00 |
