The 2KMP Tri-Clamp 45° Degree Elbow is a sanitary fitting used in systems where it is desirable to avoid a hard bend in the flow direction. It comes in two materials, 304 and 316L stainless steel, and a variety of sizes. The tube has an outside diameter (O.D.) of ½" up to 12".
It is 3A certified for use in food and beverage processing industries.

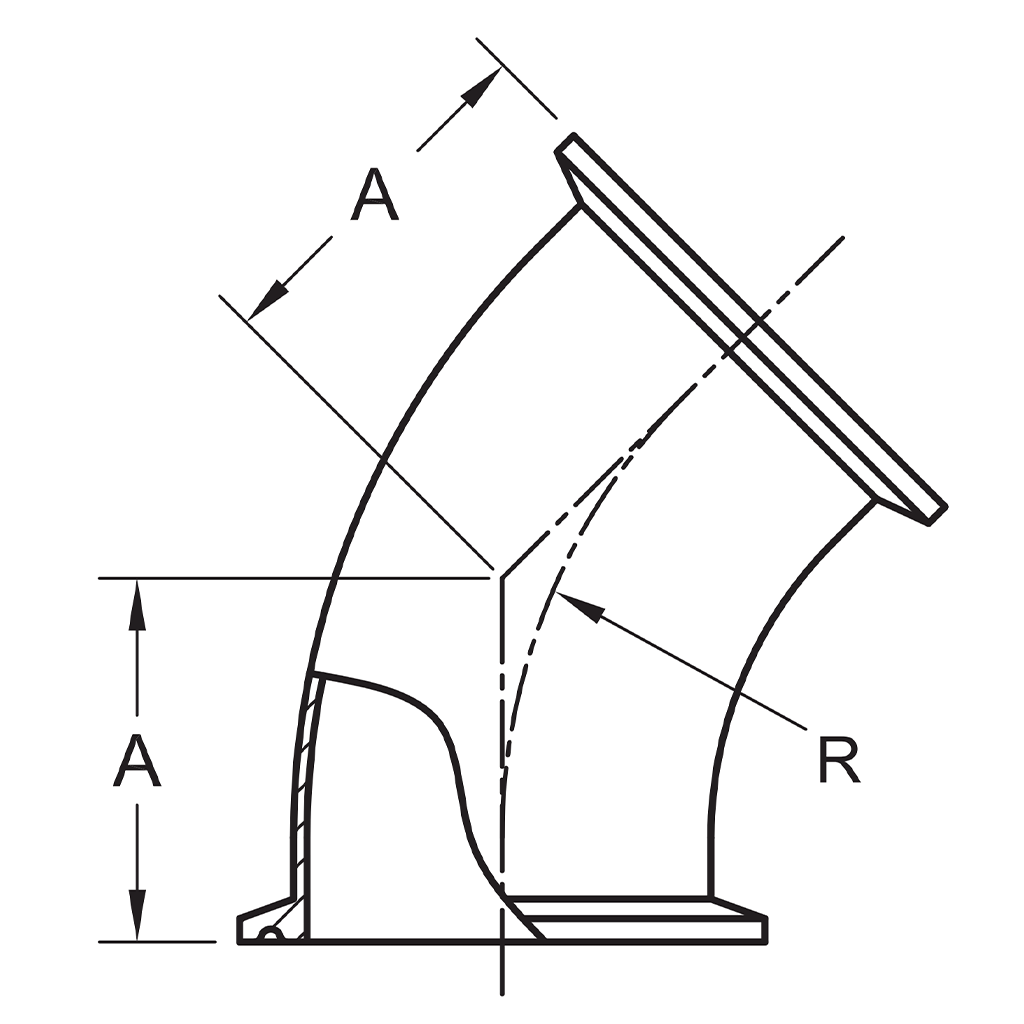

| Tube O.D. | A | R |
| 1/2" | 0.97 | 1.12 |
| 3/4" | 0.97 | 1.12 |
| 1" | 1.12 | 1.50 |
| 1-1/2" | 1.44 | 2.25 |
| 2" | 1.75 | 3.00 |
| 2-1/2" | 2.06 | 3.75 |
| 3" | 2.37 | 4.50 |
| 4" | 3.12 | 6.00 |
| 6" | 4.62 | 9.00 |
| 8" | 5.87 | 12.00 |
| 10" | 7.12 | 15.00 |
| 12" | 8.37 | 18.00 |
