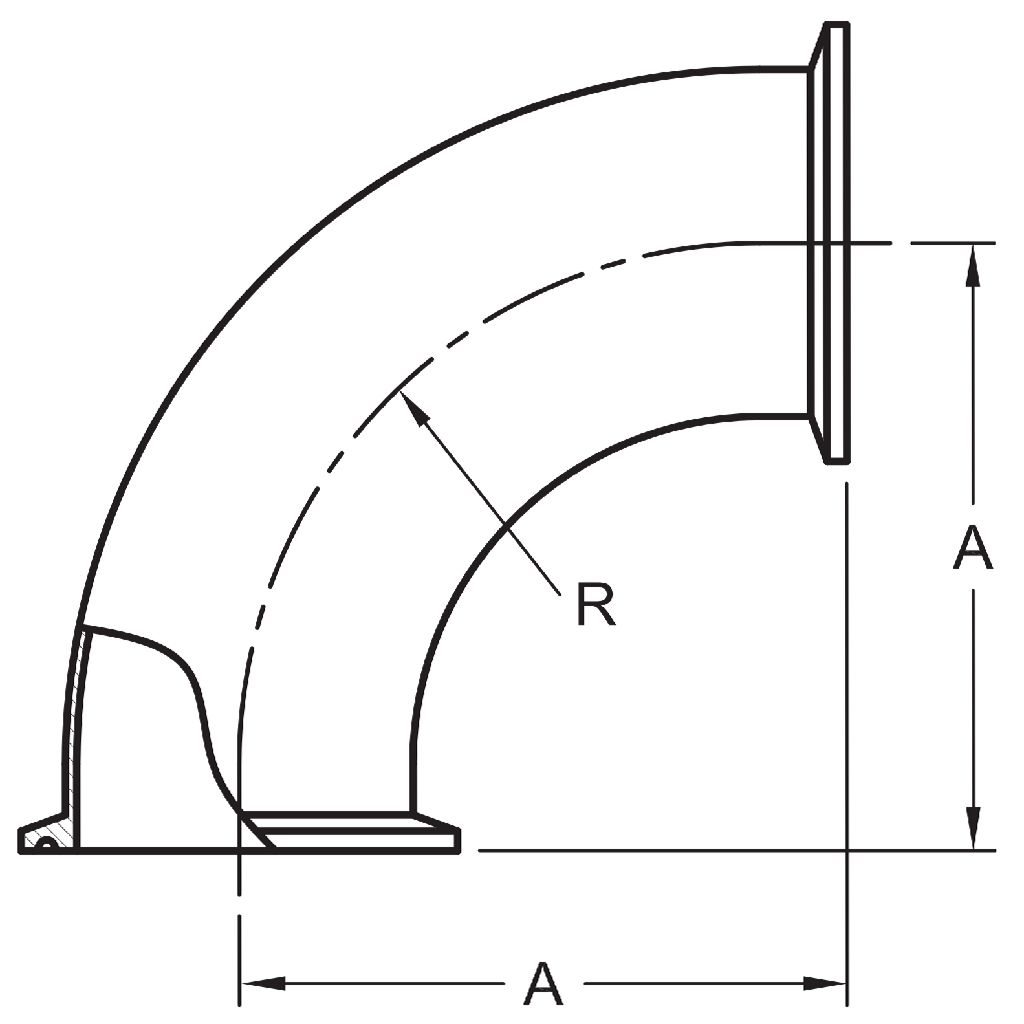

The 2CMP Tri-Clamp 90° Elbow is a sanitary fitting designed to offer a secure leak-proof connection. It comes in two materials, 304 and 316L stainless steel, and a variety of sizes. The tube has an outside diameter (O.D.) of ½" up to 12".
It is 3A certified for use in food and beverage processing industries.
| Tube O.D. | A | R |
| 1/2" | 1.62 |
1.12 |
| 3/4" | 1.62 | 1.12 |
| 1" | 2.00 | 1.50 |
| 1-1/2" | 2.75 | 2.25 |
| 2" | 3.50 | 3.00 |
| 2-1/2" | 4.25 | 3.75 |
| 3" | 5.00 | 4.50 |
| 4" | 6.62 | 6.00 |
| 6" | 9.87 | 9.00 |
| 8" | 12.87 | 12.00 |
| 10" | 15.87 | 15.00 |
| 12" | 18.87 | 18.00 |
