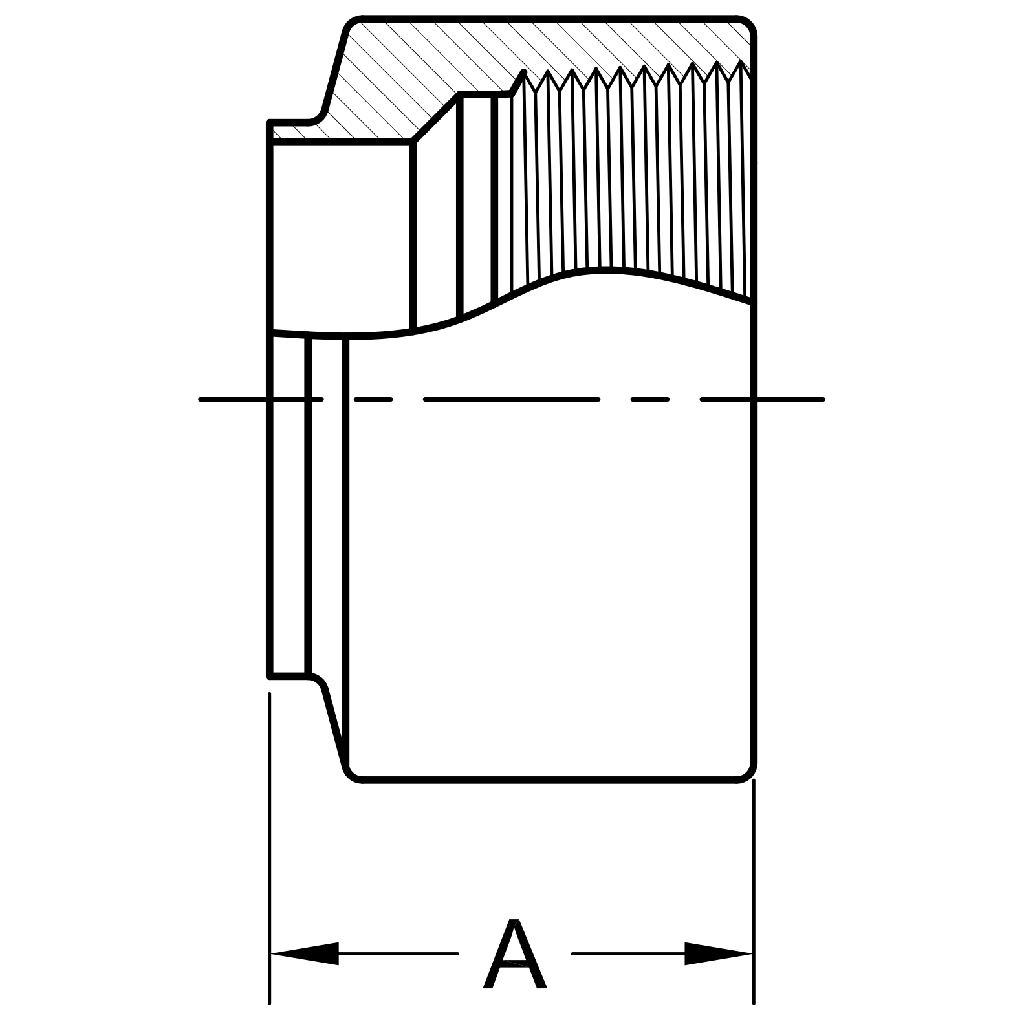

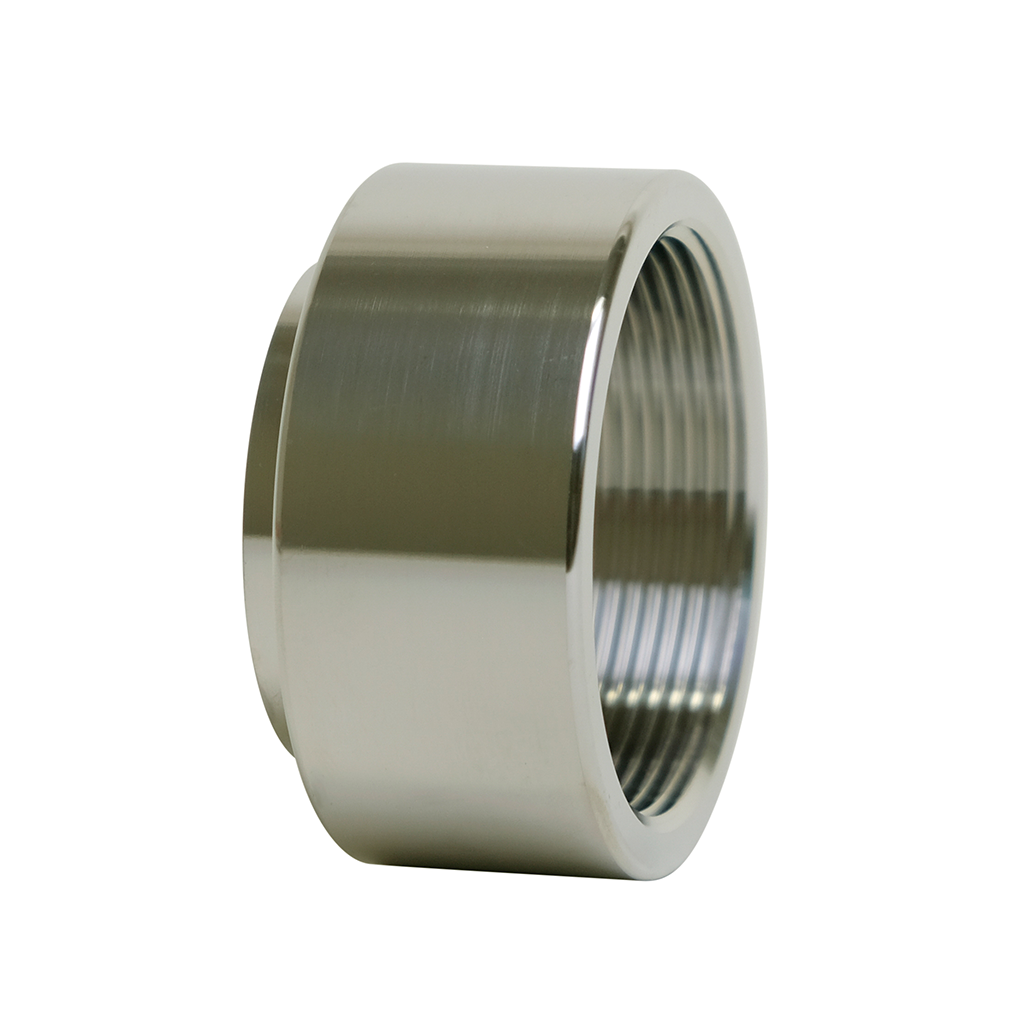

The 22WB - Butt-Weld X Female NPT Adapter is a sanitary fitting designed to be welded into permanent installations. This adapter is constructed of 316L stainless steel and is machine-finished to 32Ra. The 22WB adapter allows you to connect male NPT ends to tubing. Other sizes are available upon request; please call with any inquiries.
| Tube O.D. | A |
| 1/2" | 1.25 |
| 3/4" | 1.62 |
| 1" | 1.75 |
| 1-1/2" | 1.75 |
| 2" | 1.81 |
| 2-1/2" | 2.31 |
| 3" | 2.50 |
| 4" | 2.50 |
| 6" | 3.25 |
