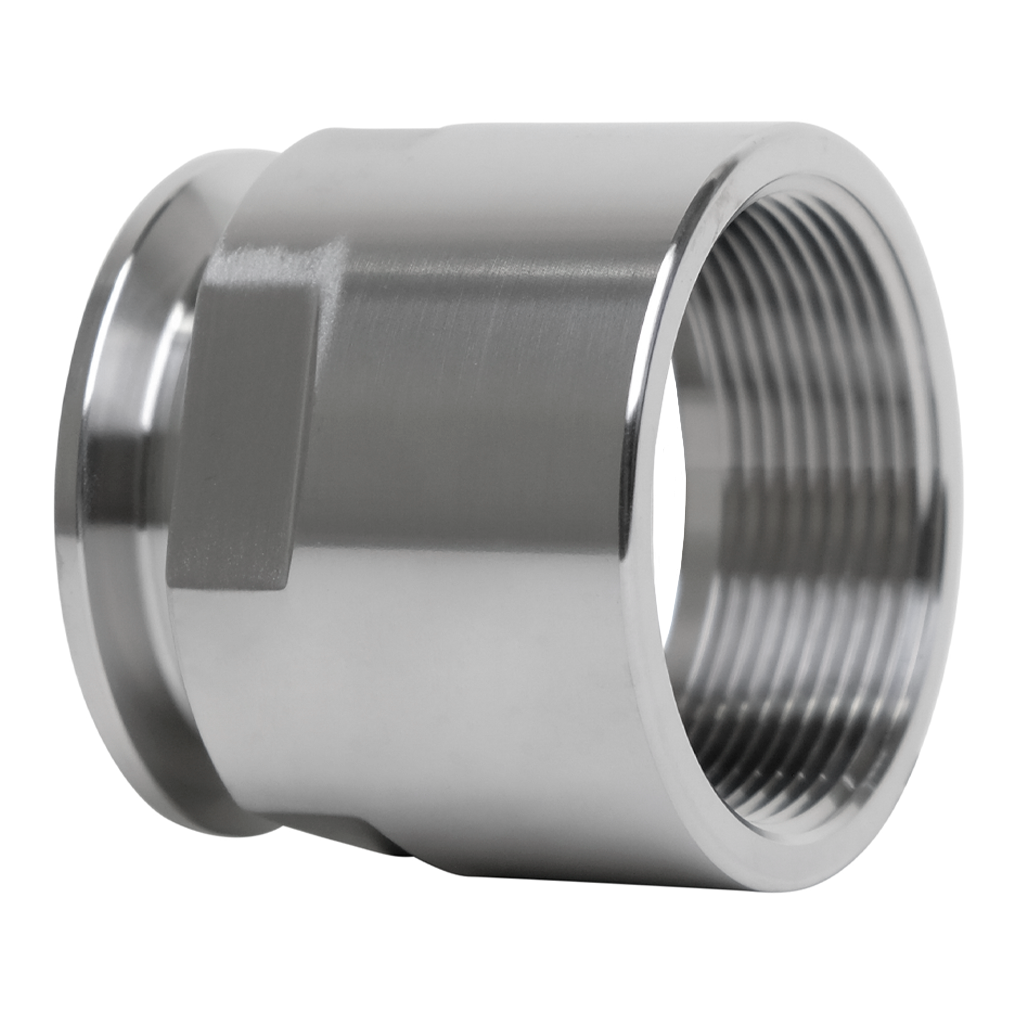

The 22MP Tri-Clamp and Female NPT Adapter is a popular sanitary clamp fitting designed to connect Tri-Clamp ferrules to male NPT pipes, valves, or equipment. It comes in two materials, 304 and 316L stainless steel, and a variety of sizes. The tube has an outside diameter (O.D.) of ½" up to 4". The female NPT threaded connection ranges in size from ¼" to 4".
They are designed for use in sanitary applications.

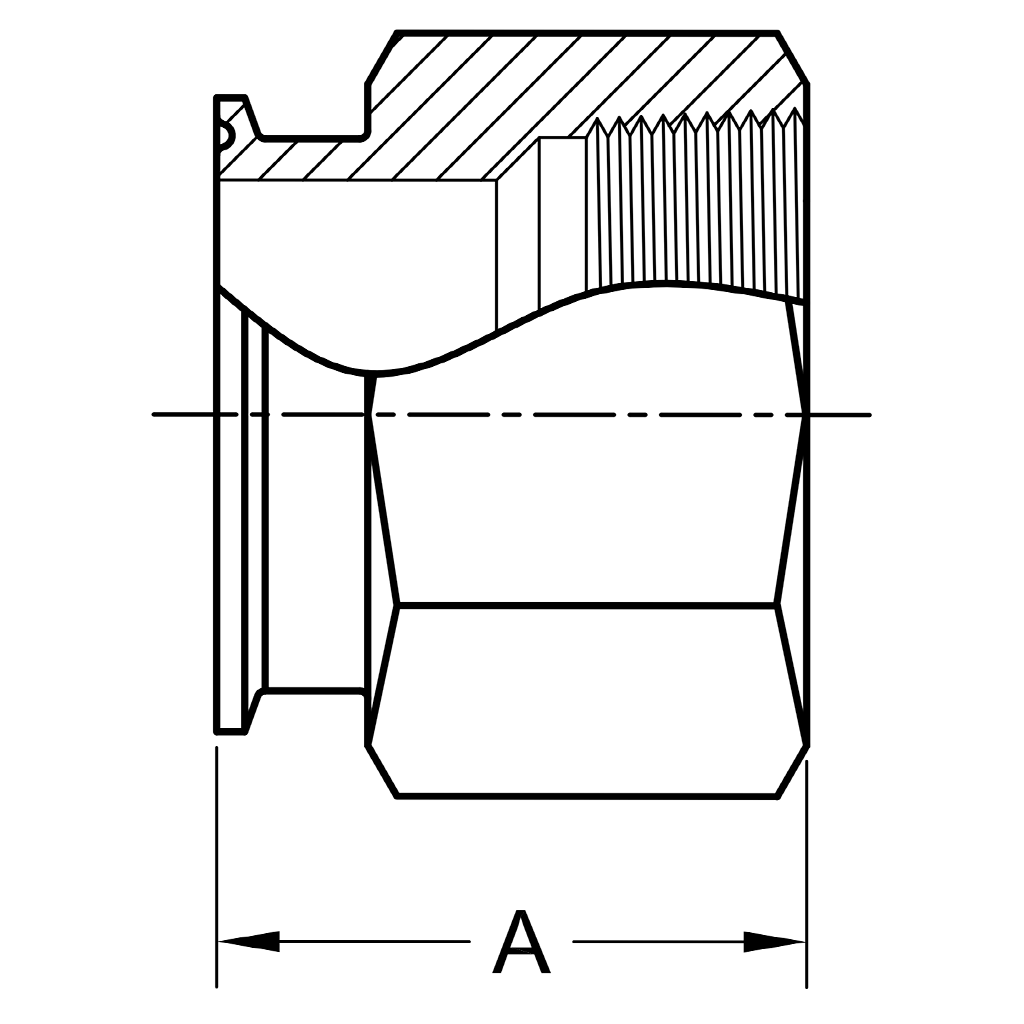

| Tube O.D. | NPT Size | A | ||||||||||||
| 1/2" |
|
|
||||||||||||
| 3/4" |
|
|
||||||||||||
| 1" |
|
|
||||||||||||
| 1-1/2" |
|
|
||||||||||||
| 2" |
|
|
||||||||||||
| 2-1/2" |
|
|
||||||||||||
| 3" |
|
|
||||||||||||
| 4" | 4" | 3.65 |
