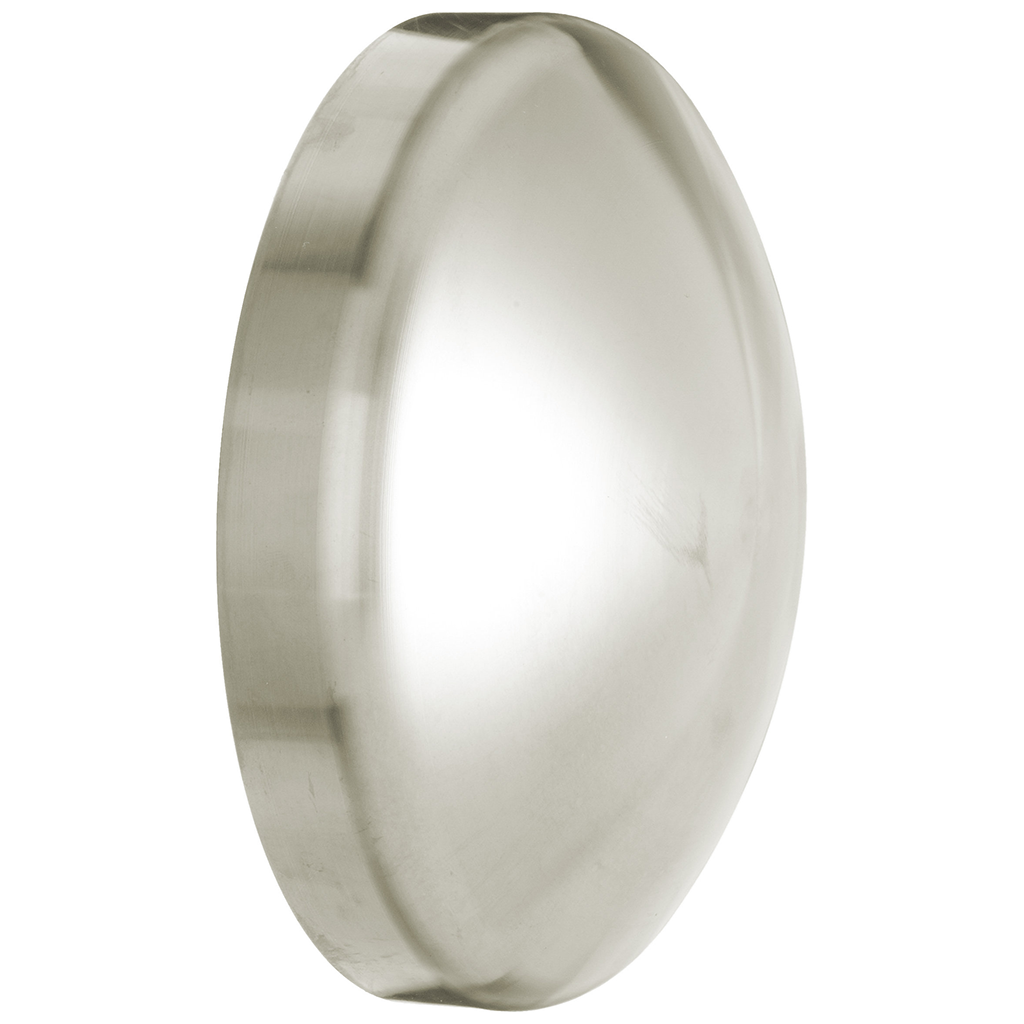

The 16W Butt-Weld Dome Cap is made of 316L stainless and is polished to 32Ra ID/OD with a mirror finish. The dome cap is designed to securely seal a tube, such as at the end of a standpipe, railing, or pulsation dampener. This fitting is 3A certified for use in sanitary environments.

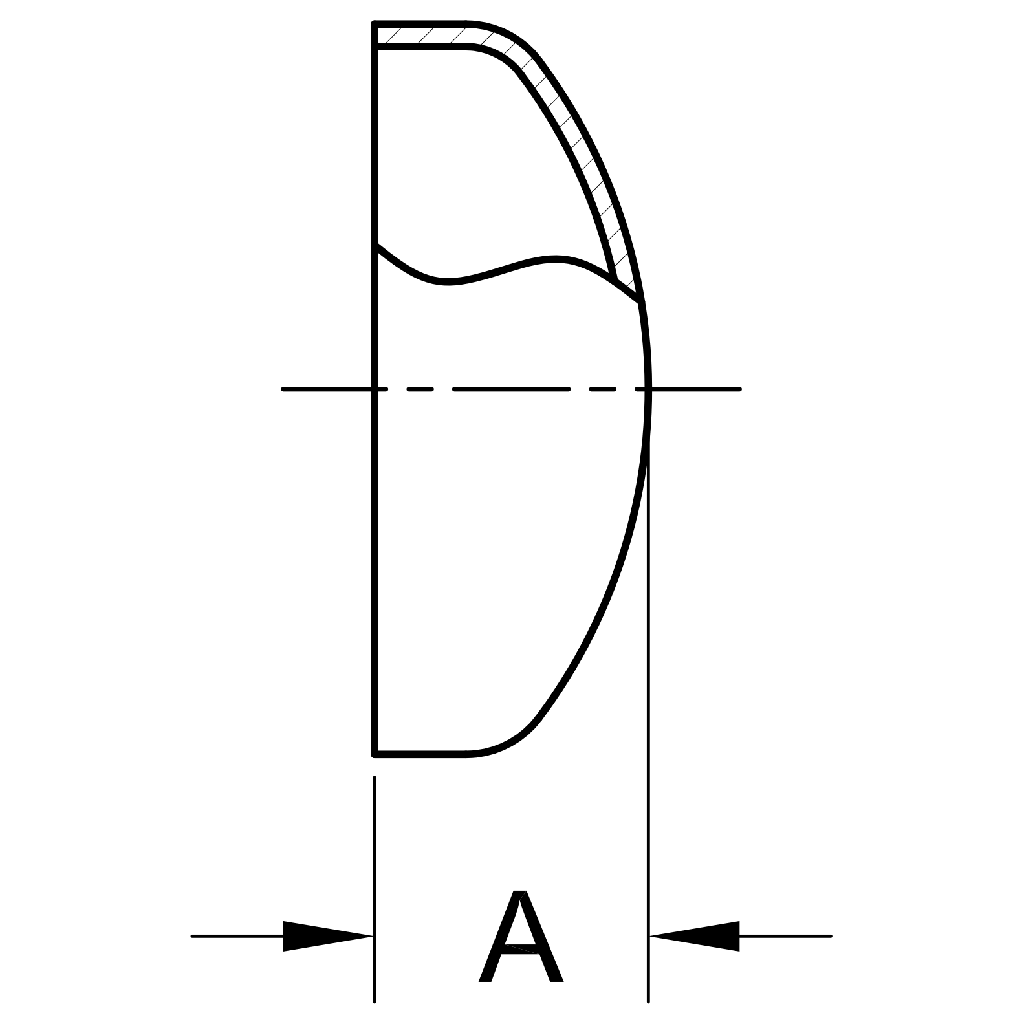

| Tube O.D. | A |
| 1/2" |
0.25 |
| 3/4" |
0.31 |
| 1" |
0.37 |
| 1-1/2" |
0.56 |
| 2" |
0.75 |
| 2-1/2" |
1.04 |
| 3" |
1.25 |
| 4" |
1.50 |
| 6" |
1.97 |
| 8" |
2.64 |
| 10" |
3.23 |
| 12" |
3.86 |
