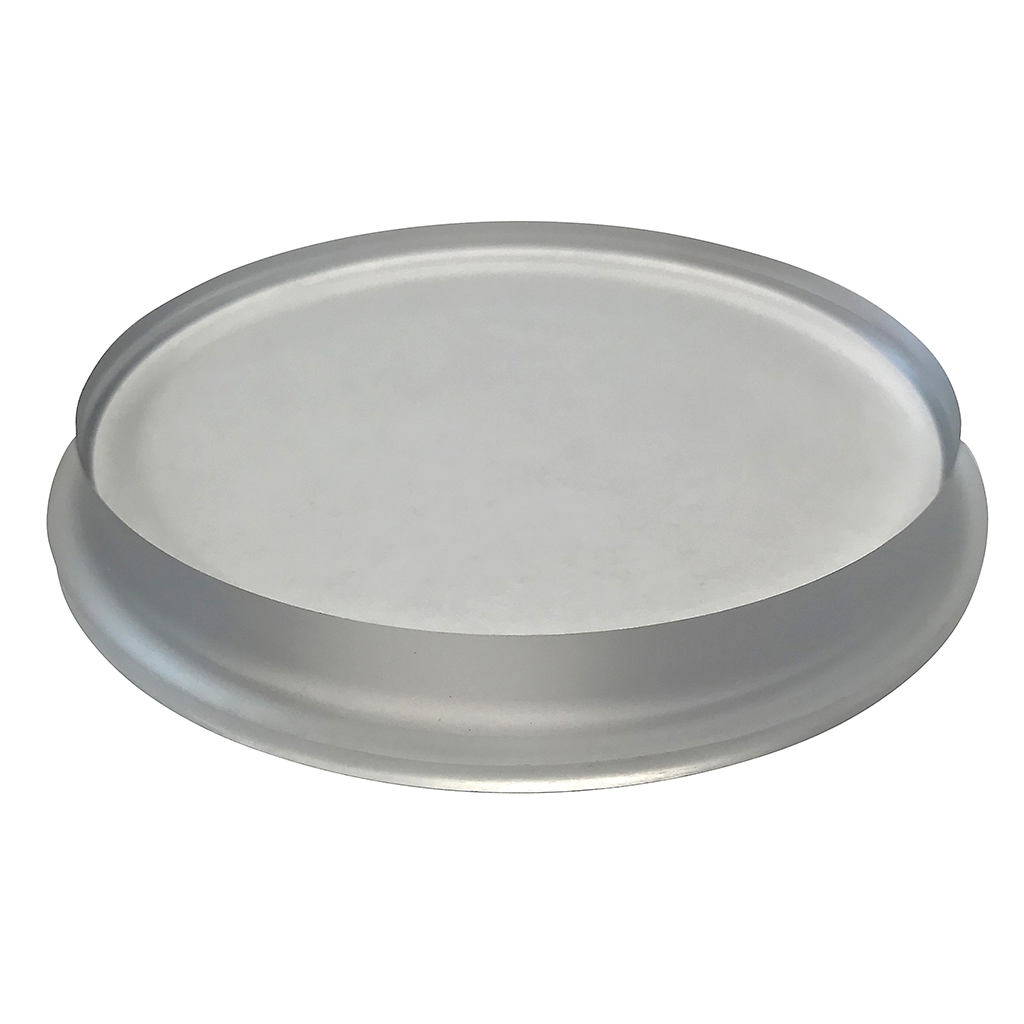

The 16AMP-SGL Sight Glass End Cap is a sanitary fitting designed for use in sanitary processing systems. The 16AMP-SGL is a transparent end cap for use with Tri-Clamp fittings, that allows you to end a piping system with a sight glass for visual inspections. It can also be used on pressurized tanks and hoppers or as a flow sight glass with a tee or a cross. The sight glass end cap is made of transparent acrylic for visibility and durability. It is available in polycarbonate for higher impact and temperature resistance by special order.

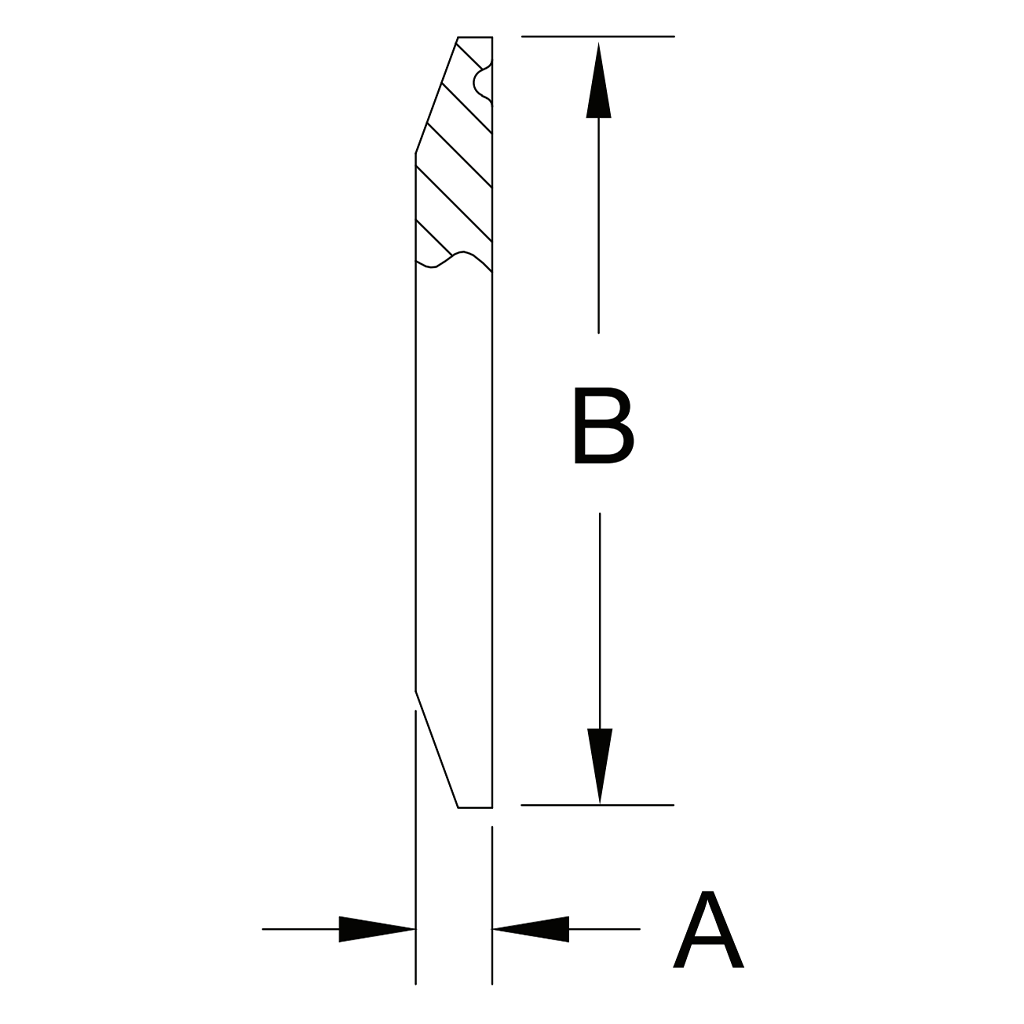

| Tube O.D. | A | B |
| 1" & 1-1/2" | 0.25 | 1.98 |
| 2" | 0.25 | 2.52 |
| 2-1/2" | 0.25 | 3.05 |
| 3" | 0.25 | 3.58 |
| 4" | 0.31 | 4.68 |
| 6" | 0.60 | 6.57 |
