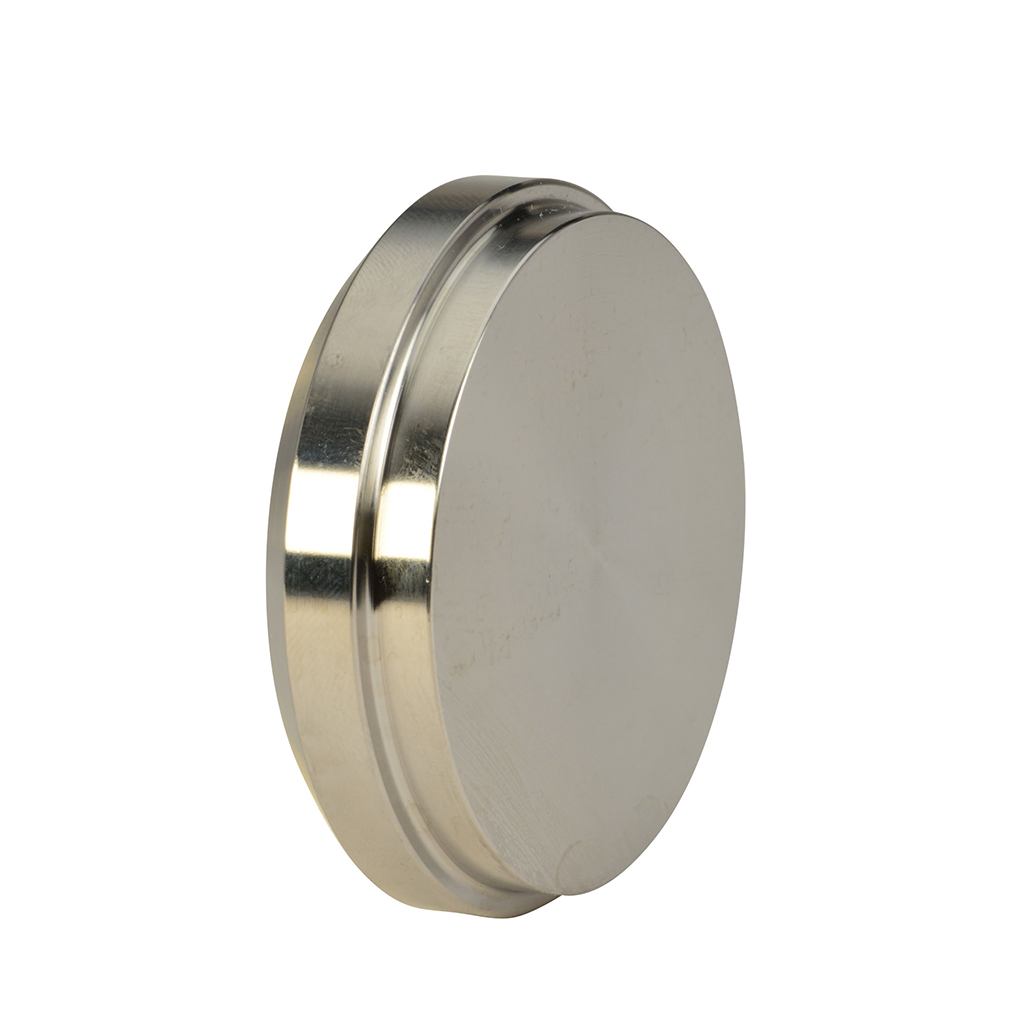

The 16A Plain Bevel Seat Solid End Cap is a sanitary fitting used to seal bevel seat connections when not in operation. This protects pipelines from introducing potential contaminants. The bevel seat end cap Is fitted to a threaded bevel seat ferrule with a Union Hex Nut.
These fittings are constructed of 304 or 316L Stainless Steel, and are available in sizes ranging between 1" and 4".

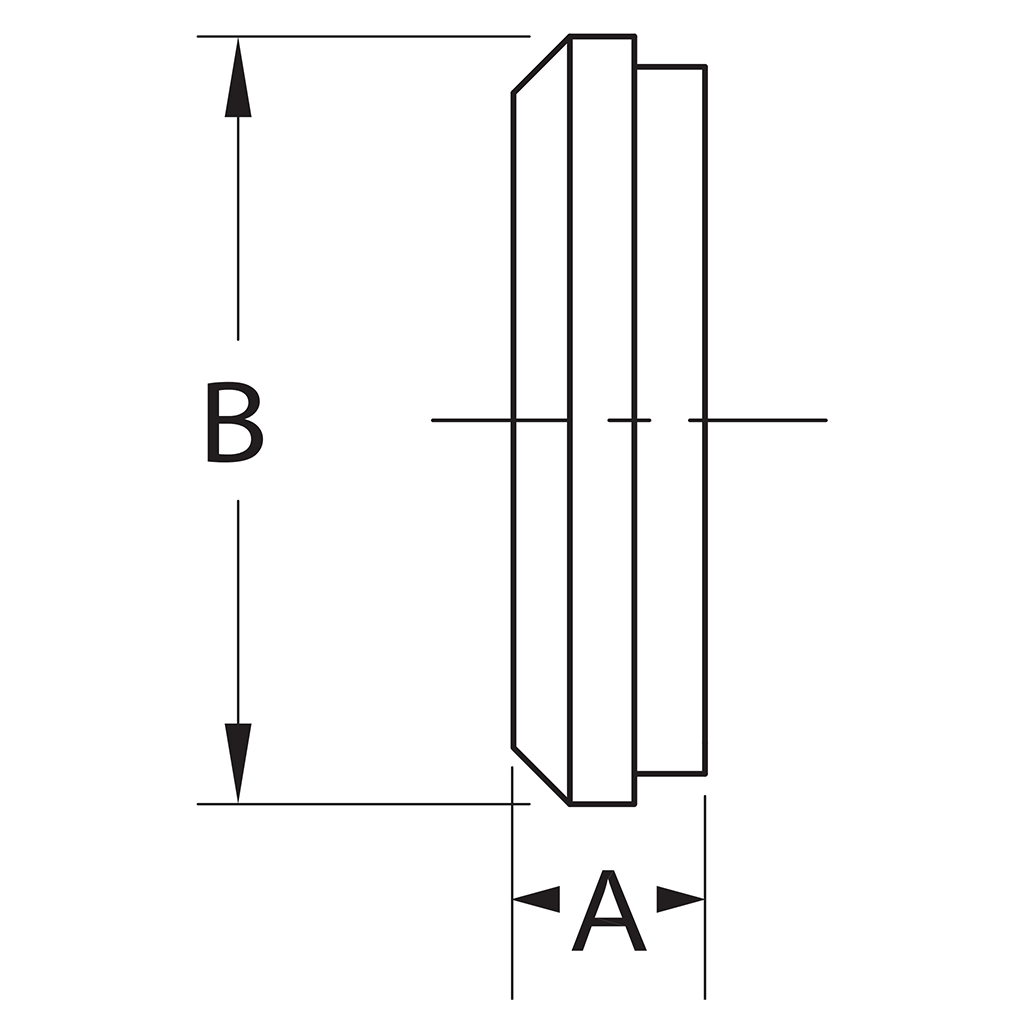

| Tube O.D. | A | B |
| 1" |
0.47 |
1.32 |
| 1-1/2" |
0.56 |
1.85 |
| 2" |
0.63 |
2.38 |
| 2-1/2" |
0.66 |
2.91 |
| 3" |
0.72 |
3.44 |
| 4" | 0.81 |
4.51 |
