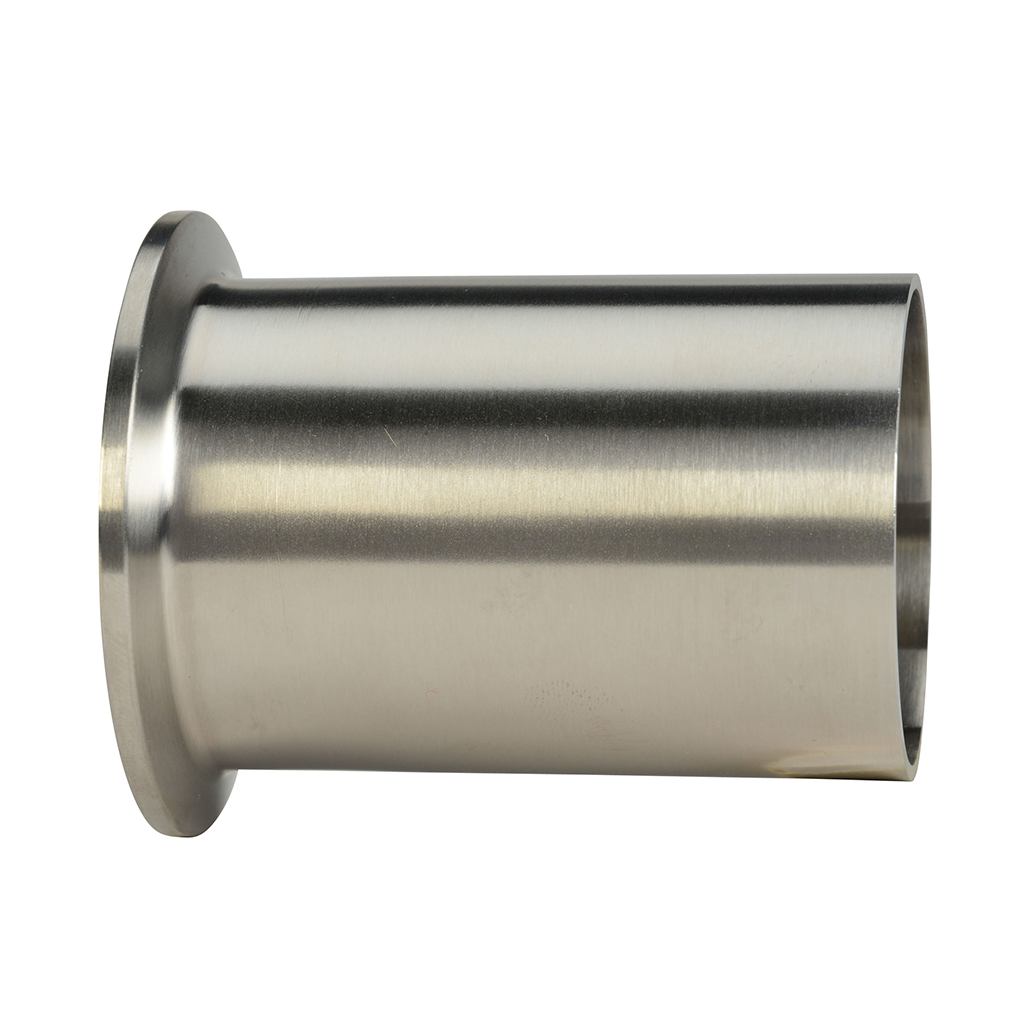

14WLMP - Tri-Clamp Light Duty Tank Ferrule
From$19.93
Unit price
/
Unavailable
Description
Description
The 14WLMP Tri-Clamp Light Duty Tank Ferrule is designed to add Tri-Clamp nozzles to stainless steel tanks. This sanitary fitting is 3A certified and is available in 316L or 304 Stainless steel. We also offer a heavy-duty tank ferrule, that has a thicker wall.

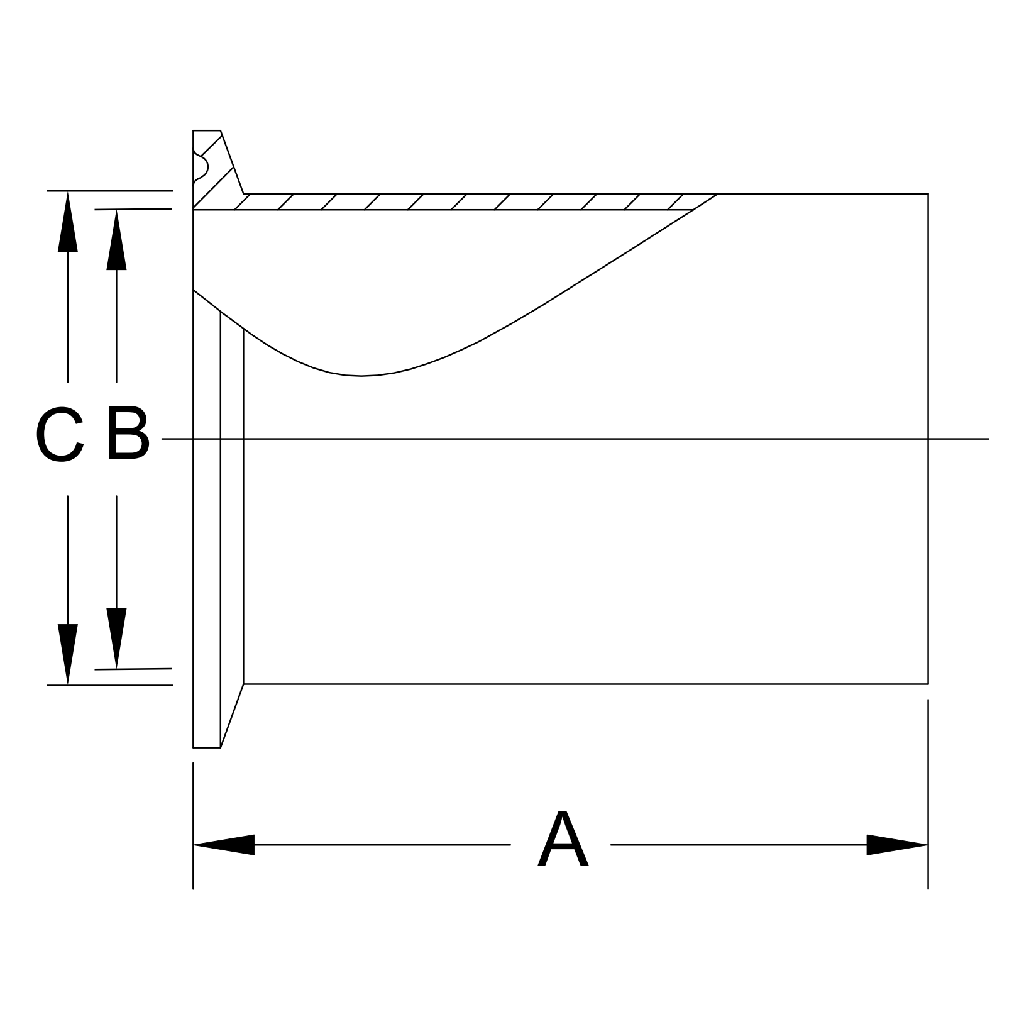

| Tube O.D. | A | B | C |
| 1/2" | 3.000 | 0.37 | 0.50 |
| 3/4" |
3.000 |
0.62 | 0.75 |
| 1" |
3.000 |
0.87 | 1.00 |
| 1-1/2" |
3.000 |
1.37 | 1.50 |
| 2" | 3.000 | 1.87 | 2.00 |
| 2-1/2" | 3.000 | 2.37 | 2.50 |
| 3" | 4.000 | 2.87 | 3.00 |
| 4" | 4.000 | 3.83 | 4.00 |
| 6" | 6.000 | 5.78 | 6.00 |
| 8" | 6.000 | 7.78 | 8.00 |
| 10" | 6.000 | 9.78 | 10.00 |
| 12" | 6.000 | 11.78 | 12.00 |
