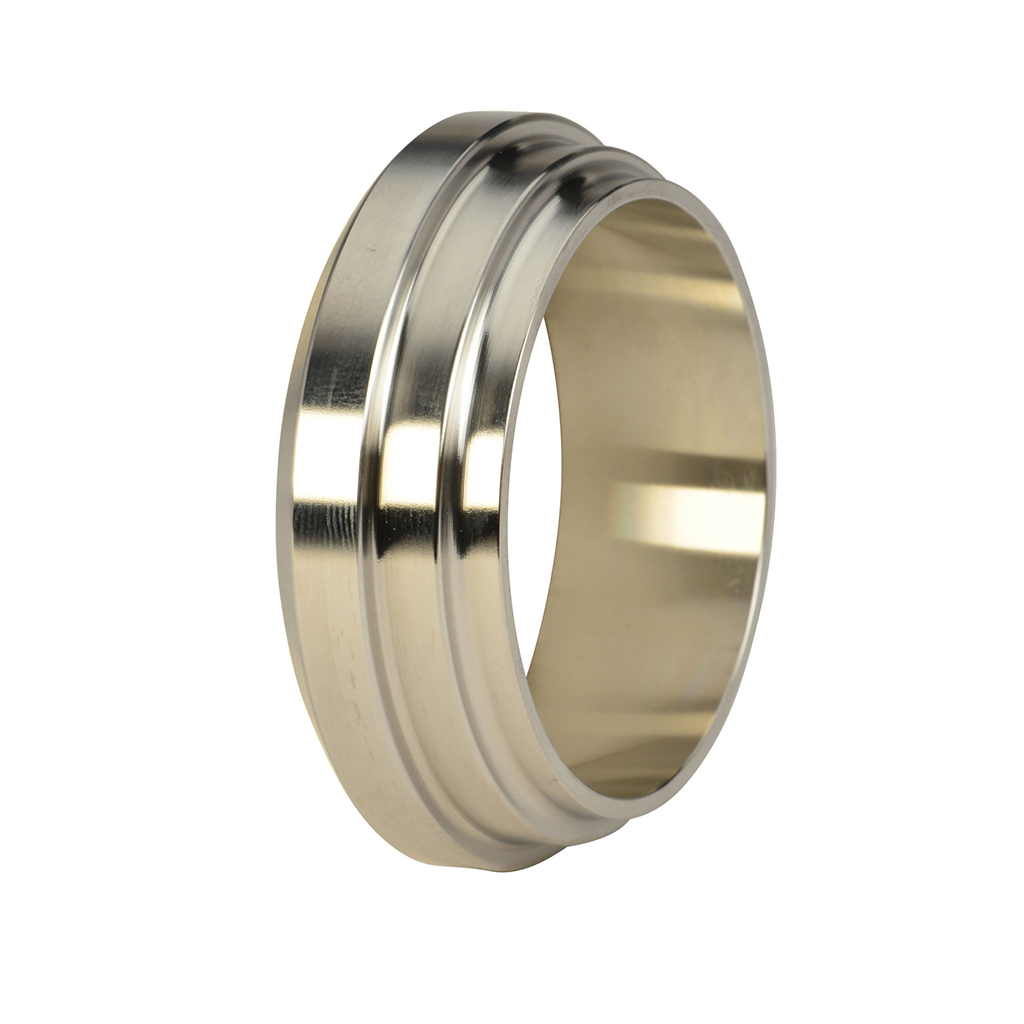

The 14PRF Short Plain Bevel Seat Ferrule is a sanitary fitting welded into place on process equipment and piping to create hygienic secure fittings without compromising the rigidity of the system. This ferrule gets mated with a Threaded Bevel Seat Ferrule by using a Union Hex Nut to complete a Bevel Seat Union.
Short Plain Bevel Seat Ferrules are constructed of 304 or 316L Stainless Steel, and are available in sizes ranging between 1" and 4".

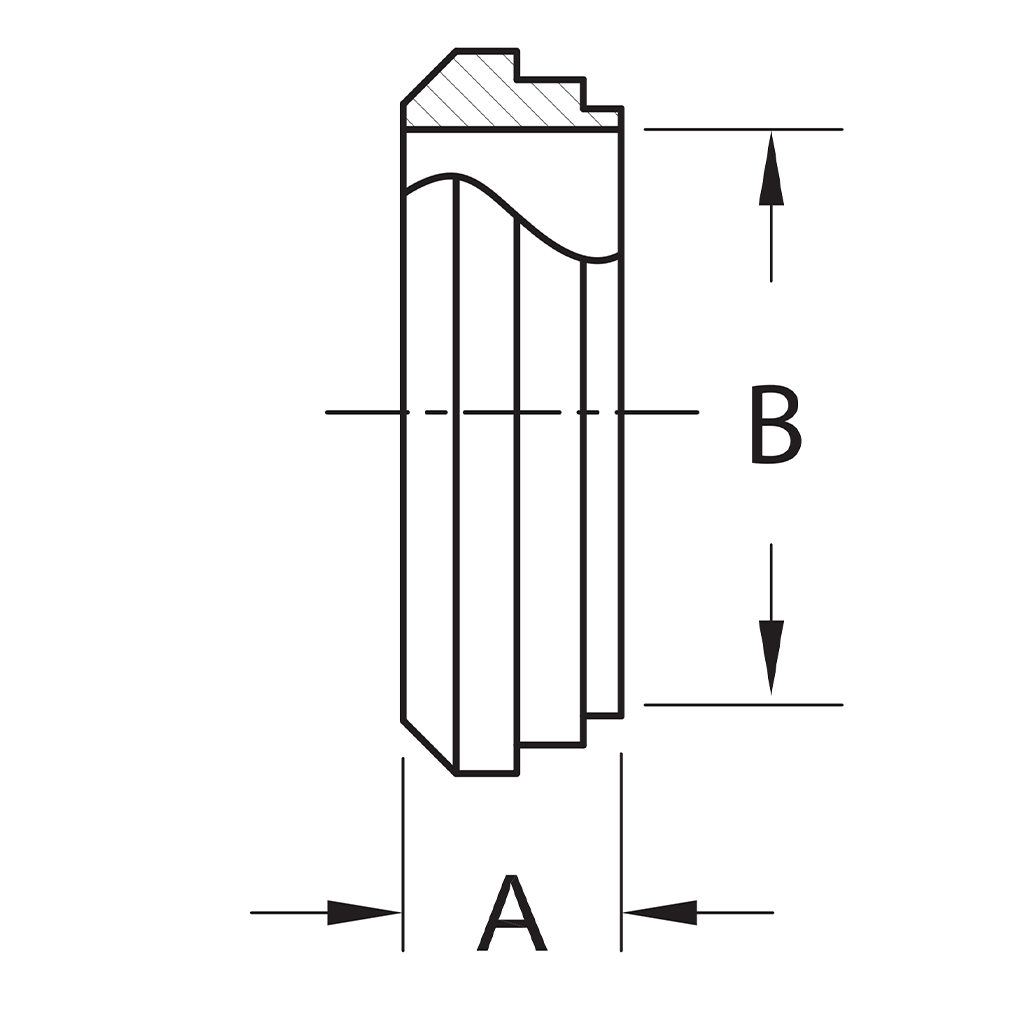

| Tube O.D. | A | B |
| 1" |
.72 |
0.87 |
| 1-1/2" |
.72 |
1.37 |
| 2" |
.75 |
1.87 |
| 2-1/2" |
.87 |
2.37 |
| 3" |
.91 |
2.87 |
| 4" | 1.03 |
3.83 |
