14MPHT - Tri-Clamp X Tygon Hose Adapter
From$33.49
Unit price
/
Unavailable
Description
Description
The 14MPHT Tygon Hose Adapter is a sanitary adapter that makes secure connections between Tri-Clamp ends and Tygon hose. This adapter is available in sizes ranging from 1/2" to 6". It is constructed of 316L stainless steel and is 3A certified for use in food and beverage processing industries.

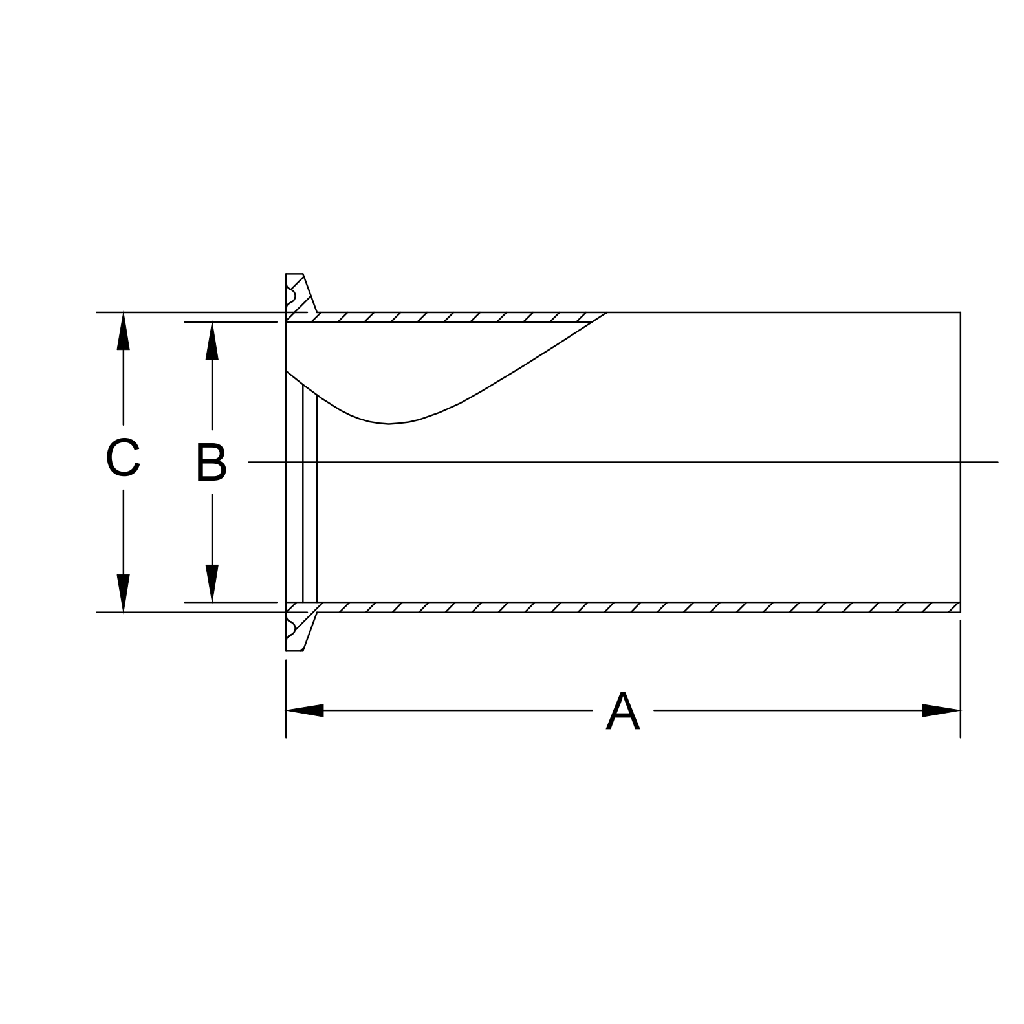

| Tube O.D. | A | B | C | Wall Thickness |
| 1/2" | 4.00 | 0.37 | 0.50 | 0.065" |
| 3/4" | 4.00 | 0.62 | 0.75 | 0.065" |
| 1" | 4.50 | 0.87 | 1.00 | 0.065" |
| 1-1/2" | 4.50 | 1.37 | 1.50 | 0.065" |
| 2" | 4.50 | 1.87 | 2.00 | 0.065" |
| 2-1/2" | 4.50 | 2.37 | 2.50 | 0.065" |
| 3" | 4.50 | 2.87 | 3.00 | 0.065" |
| 4" | 4.62 | 3.83 | 4.00 | 0.083" |
| 6" | 6.00 | 5.78 | 6.00 | 0.109" |
