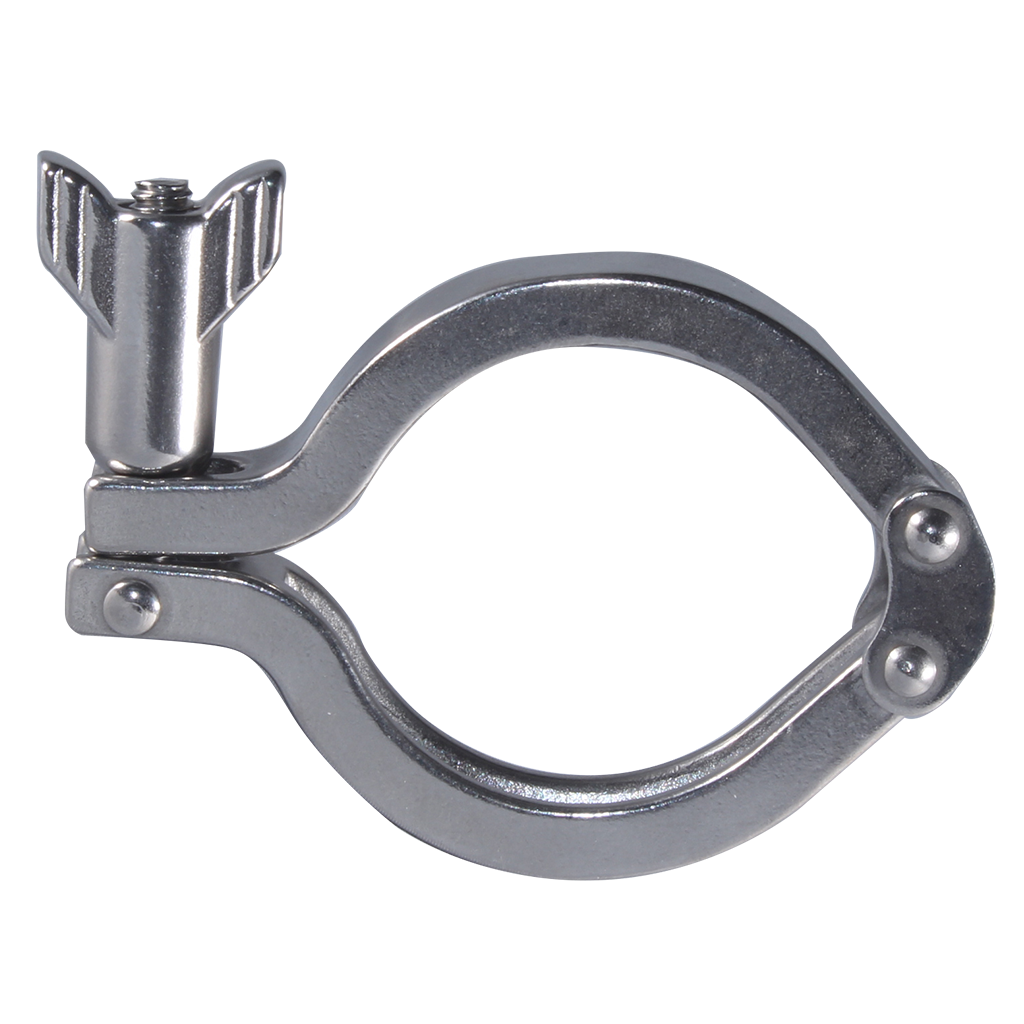

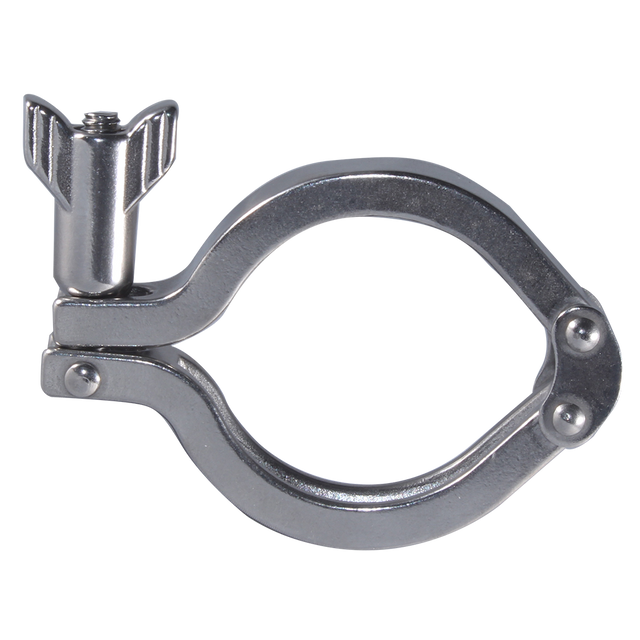

The Double-Pin Heavy-Duty Tri-Clamp is for use with Tri-Clamp ferrules. The double hinge design allows for even pressure distribution. This Tri-Clamp sanitary fitting is made of 304 Stainless Steel and is 3A certified. Other sizes are available upon request. Please call with any inquiries.
| Tube O.D. | Service Pressure Rating @70°F | Service Pressure Rating @250°F | A Measure |
| 1" & 1-1/2" | 500 | 300 | 2.11 |
| 2" | 450 | 250 | 2.64 |
| 2-1/2" | 400 | 200 | 3.17 |
| 3" | 350 | 175 | 3.71 |
| 4" | 300 | 150 | 4.81 |
* Wing nut is tightened to 25 in. lb. of torque
