SuperKlean Washdown Hose

$39793
SKU: SN/UW-25-3/4 + 8-3/4-B + 9-3/4-B
Hose
Colour
Hose Length
Hose Ends

The Standard SuperKlean Washdown Hose is designed for hot water and mild chemicals in cleaning and washdown applications. Like all SuperKlean hoses, the smooth cover washdown hose is flexible, lightweight, economical, durable, and safe. The SuperKlean washdown hose is available in two different materials: EPDM and Nitrile. The EPDM model has a smooth cover that is resistant to abrasion, heat, and ozone and have a max pressure of 300 PSI. The yellow nitrile hose has added resistance to flame, oil, weathering and can withstand up to 500 PSI. The SuperKlean Washdown Hose Assembly comes in standard lengths of 25', 50', 75', and 100', and with two adapters: a Brass Swivel Hose Adapter (1/2" NPT x 3/4" Hose barb) and a 3 piece Brass Mixer Adapter (3/4" NPT x 3/4" Hose Barb). An optional crimped external sleeve can be added for enhanced fitting security, and an internal hose guard can be added to prevent kinking. Other swivel adapters and mixer adapters are available and can be fitted onto your assembly upon special request. Pair the SuperKlean Washdown Hose with a SuperKlean spray nozzle, hose rack, and water mixer for the ultimate washdown setup.

Description

The Standard SuperKlean Washdown Hose is designed for hot water and mild chemicals in cleaning and washdown applications. Like all SuperKlean hoses, the smooth cover washdown hose is flexible, lightweight, economical, durable, and safe. The SuperKlean washdown hose is available in two different materials: EPDM and Nitrile. The EPDM model has a smooth cover that is resistant to abrasion, heat, and ozone and have a max pressure of 300 PSI. The yellow nitrile hose has added resistance to flame, oil, weathering and can withstand up to 500 PSI. The SuperKlean Washdown Hose Assembly comes in standard lengths of 25', 50', 75', and 100', and with two adapters: a Brass Swivel Hose Adapter (1/2" NPT x 3/4" Hose barb) and a 3 piece Brass Mixer Adapter (3/4" NPT x 3/4" Hose Barb). The crimped external sleeve adds enhanced fitting security, and an optional internal hose guard can be added to prevent kinking. Other swivel adapters and mixer adapters are available and can be fitted onto your assembly upon special request. Pair the SuperKlean Washdown Hose with a SuperKlean spray nozzle, hose rack, and water mixer for the ultimate washdown setup.

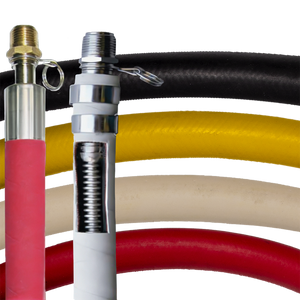

SuperKlean Washdown Hose Assembly Components:

  • Washdown hose with a smooth cover
  • Crimped hose ends
  • Two Adapters
    • Standard Edition:
      • 8-3/4-B Swivel hose adapter (1/2” NPT x 3/4” hose barb) brass and stainless steel
      • 9-3/4-B 3 piece mixer adapter (3/4” NPT x 3/4” hose barb) brass

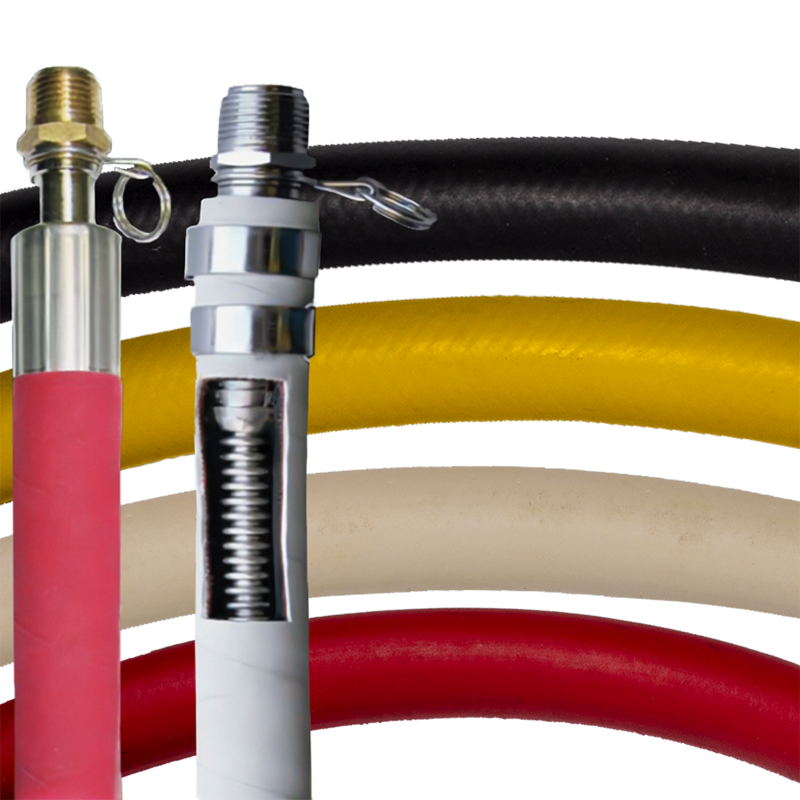

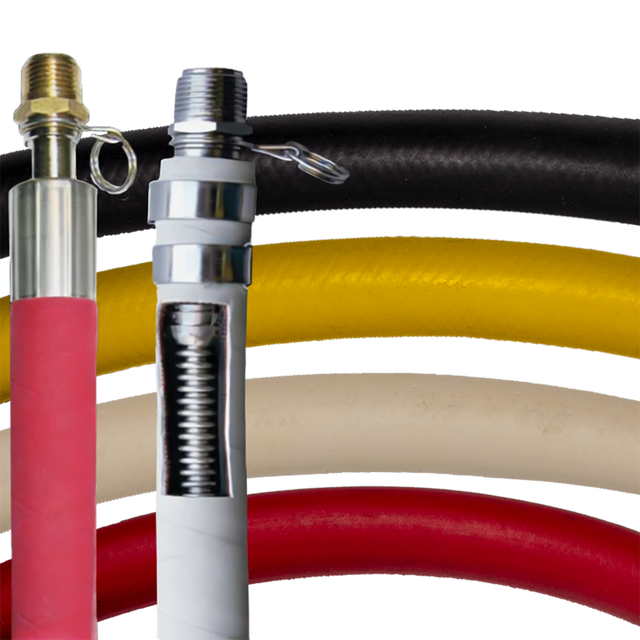

    • Hose Guard:
      • HG8-3/4-S Swivel hose adapter (1/2” NPT x 3/4” hose barb) stainless steel w/ 12” Long SS Hose Guard
      • HG9-3/4-S 3-piece mixer adapter (3/4” NPT x 3/4” hose barb) stainless steel w/ 12” Long SS Hose Guard

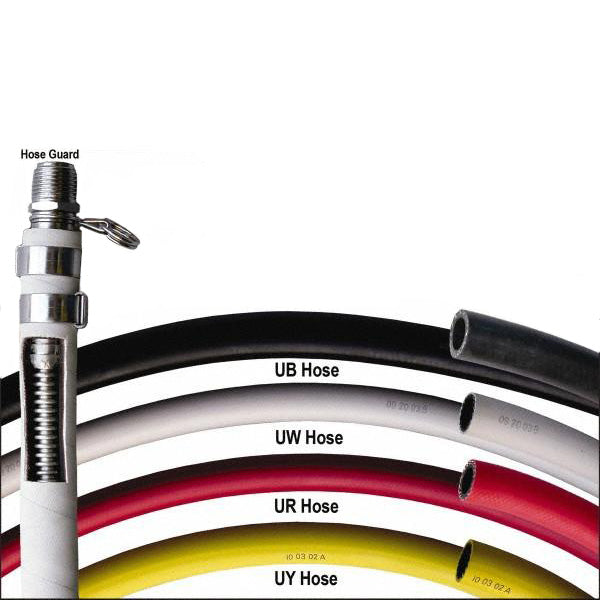

Part # Inner Diameter Outer Diameter Max. Pressure Cover Colour Cover Material  Tube Material Reinforcements

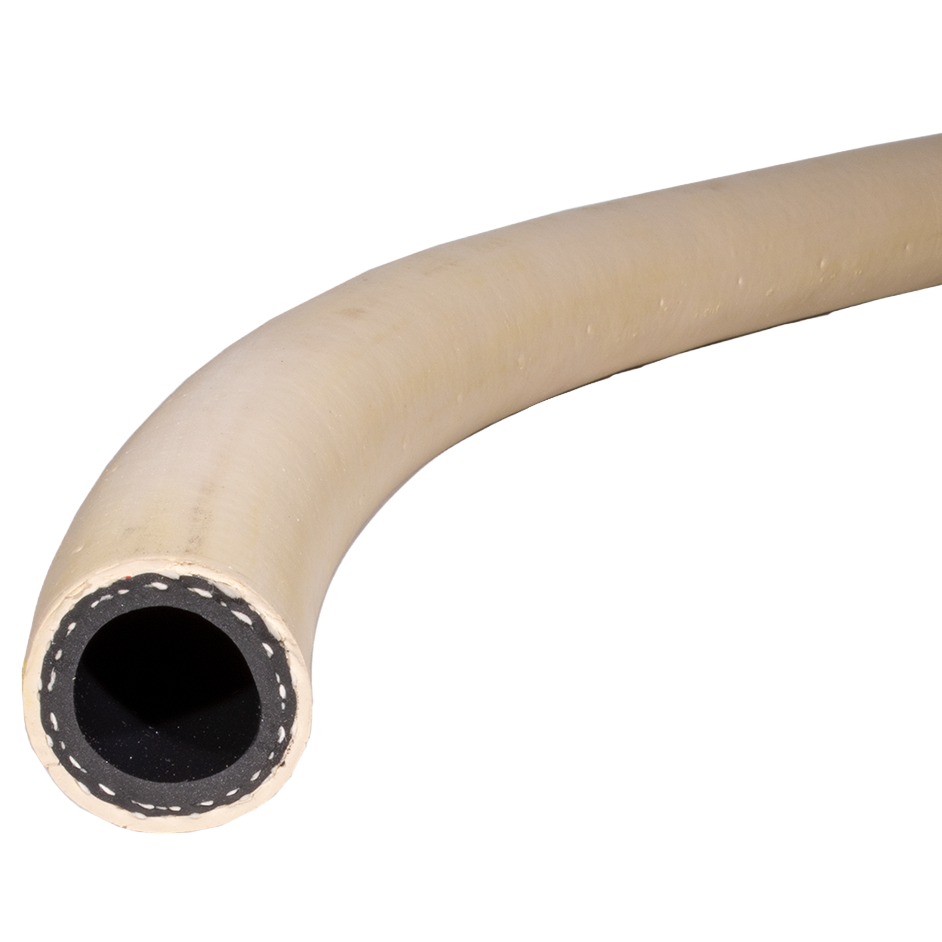

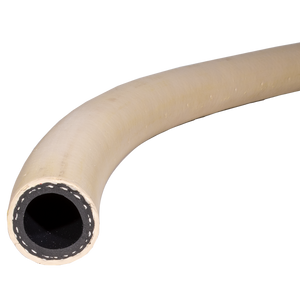

UW 3/4" (19.1 mm) 1.17" (30mm) 300 PSI White Smooth EPDM EPDM 4 Textile Plies

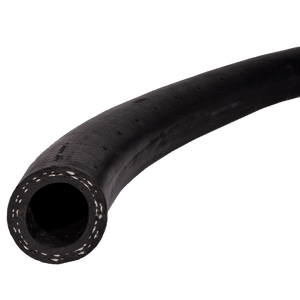

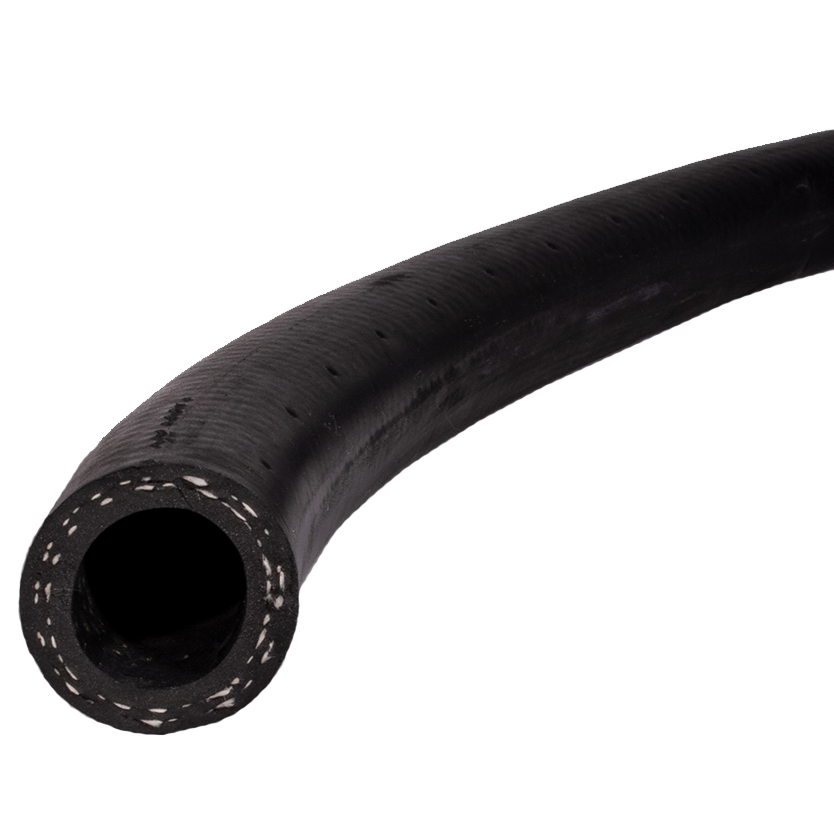

UB 3/4" (19.1 mm) 1.17" (30mm) 300 PSI Black Smooth EPDM EPDM 4 Textile Plies

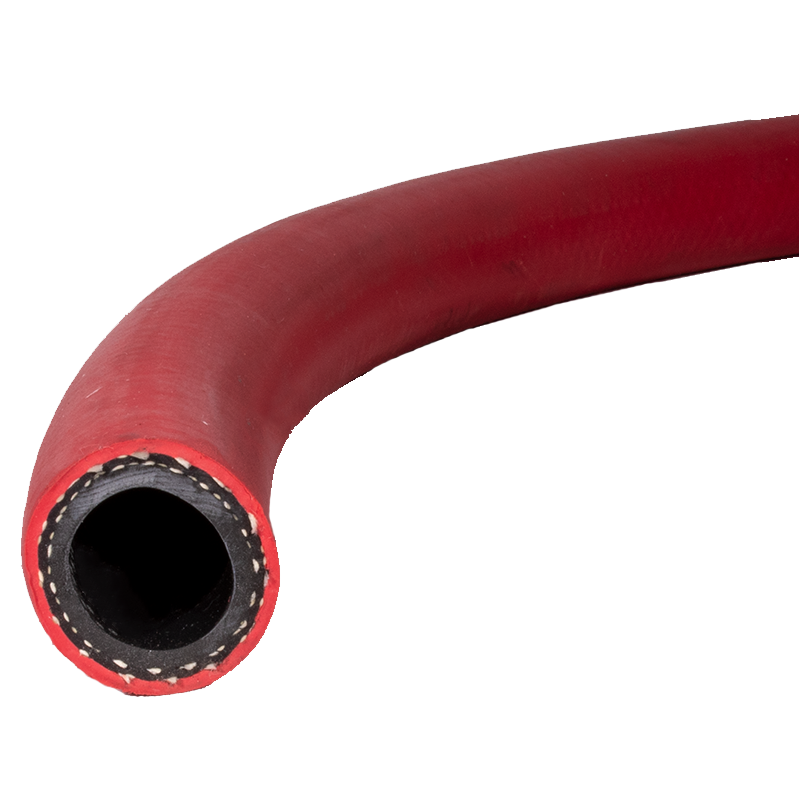

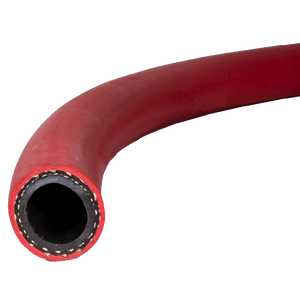

UR 3/4" (19.1 mm) 1.17" (30mm) 300 PSI Red Smooth EPDM EPDM 4 Textile Plies

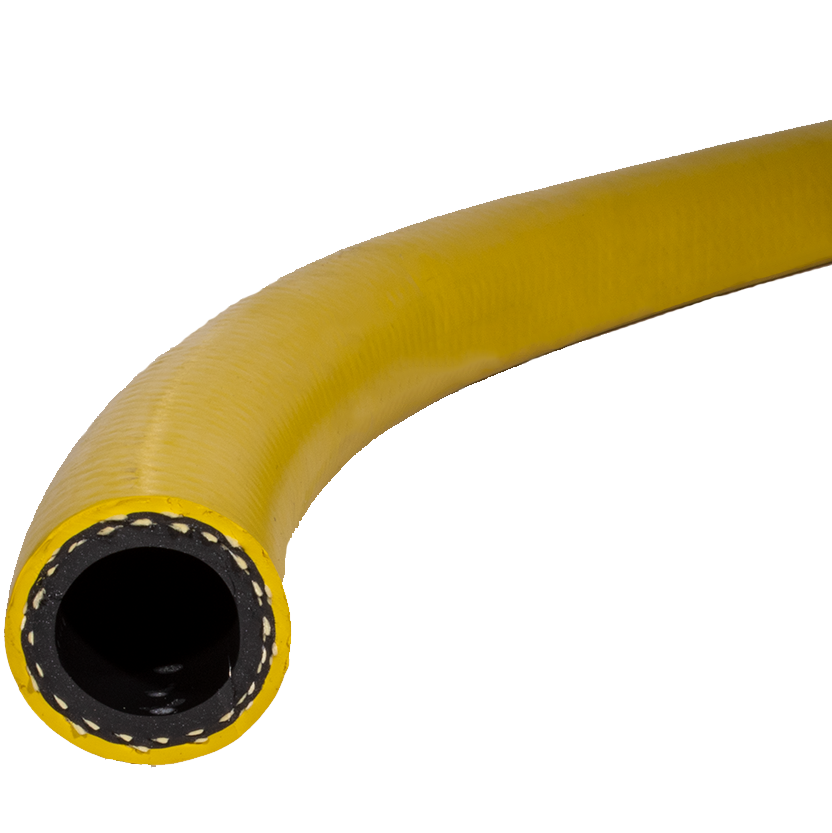

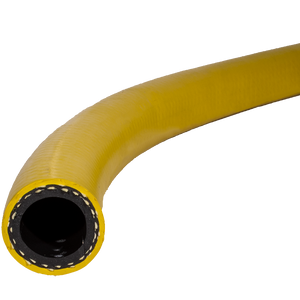

UY 3/4" (19.1 mm) 1.17" (30mm) 300 PSI Yellow Smooth Nitrile Nitrile 4 Aramid Plies

Specifications
  • Smooth cover that is resistant to abrasion, heat, and ozone
  • Weight: 0.4 lb/ft
  • Inner Diameter: 0.75” (19.1 mm)
  • Outer Diameter: 1.17” (30 mm)
  • Working Temperature Range: -40°F – 212°F (-40°C – 100°C)
  • Meets FDA requirements for washdown and sanitation
