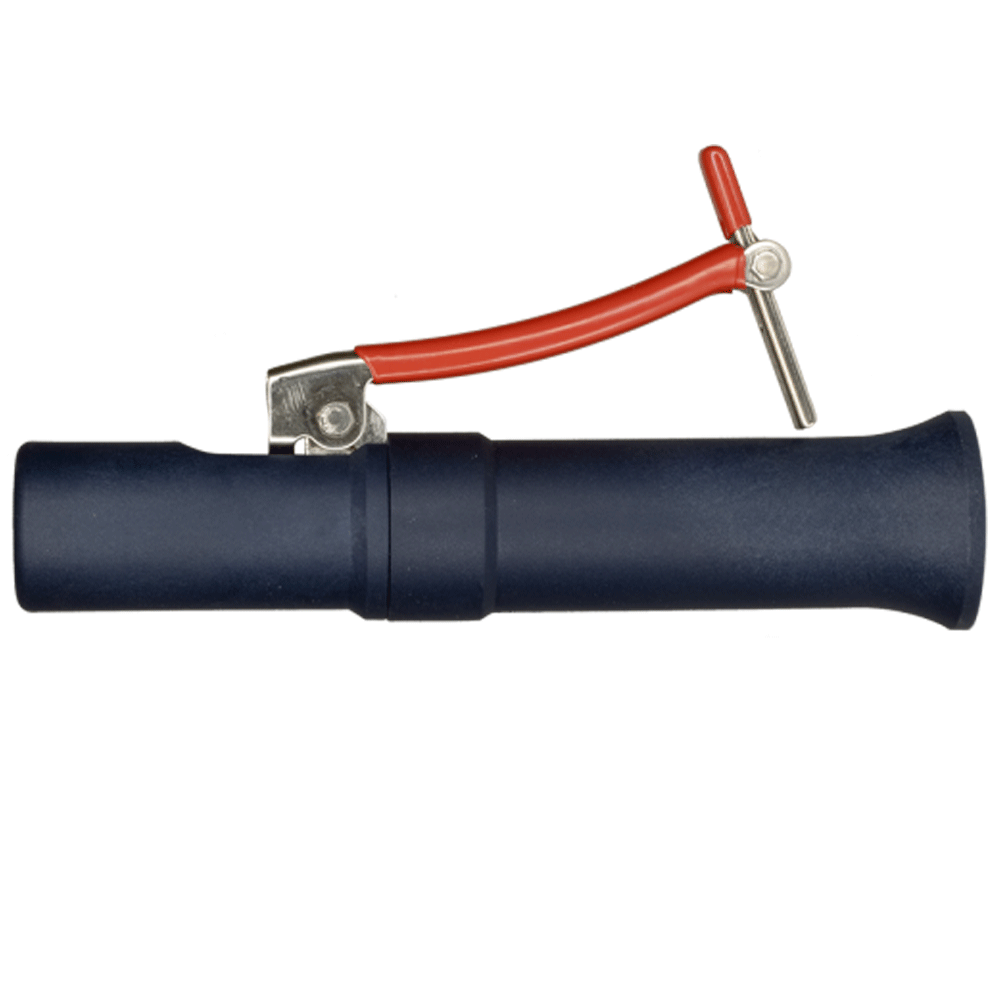

The Duraspray Nozzle by SuperKlean is a hanging nozzle specially designed for spraying hot water downward from a vertical hanging position. Originally designed for the meat processing industry, the DuraSpray is perfect for any processing plant that uses overhead hose mounts for sanitation and washdown. Overhead hose mounts are becoming more common in industrial environments as they are efficient on space and remove the labour of dragging hoses across the floor and prevents the resulting hose wear and damage. The DuraSpray nozzle has variable spray patterns and comes equipped with a locking mechanism to prevent any accidental water discharge. The drip-free automatic shutoff feature ensures water conservation upon lever release.
The DuraSpray Hanging Spray Nozzle has an 1/2" female NPT inlet and requires an adapter. We offer two standard adapters, and a full selection of adapters can be found here.
| Inlet Pressure (PSIG) | Flow Rate (GPM) |
| 25 PSIG | 4.39 GPM |
| 50 PSIG | 6.54 GPM |
| 75 PSIG | 8.18 GPM |
| 100 PSIG | 9.56 GPM |
| 125 PSIG | 10.83 GPM |
| 150 PSIG | 11.89 GPM |
Low Flow (Achieved with a flow restrictor adapter)
| Inlet Pressure (PSIG) | Flow Rate (GPM) |
| 25 PSIG | 2.93 GPM |
| 50 PSIG | 3.86 GPM |
| 75 PSIG | 4.91 GPM |
| 100 PSIG | 5.78 GPM |
| 125 PSIG | 6.71 GPM |
| 150 PSIG | 7.19 GPM |
