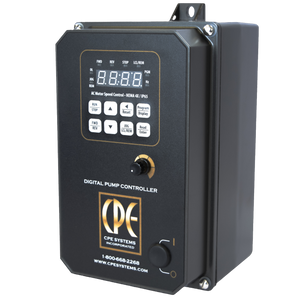

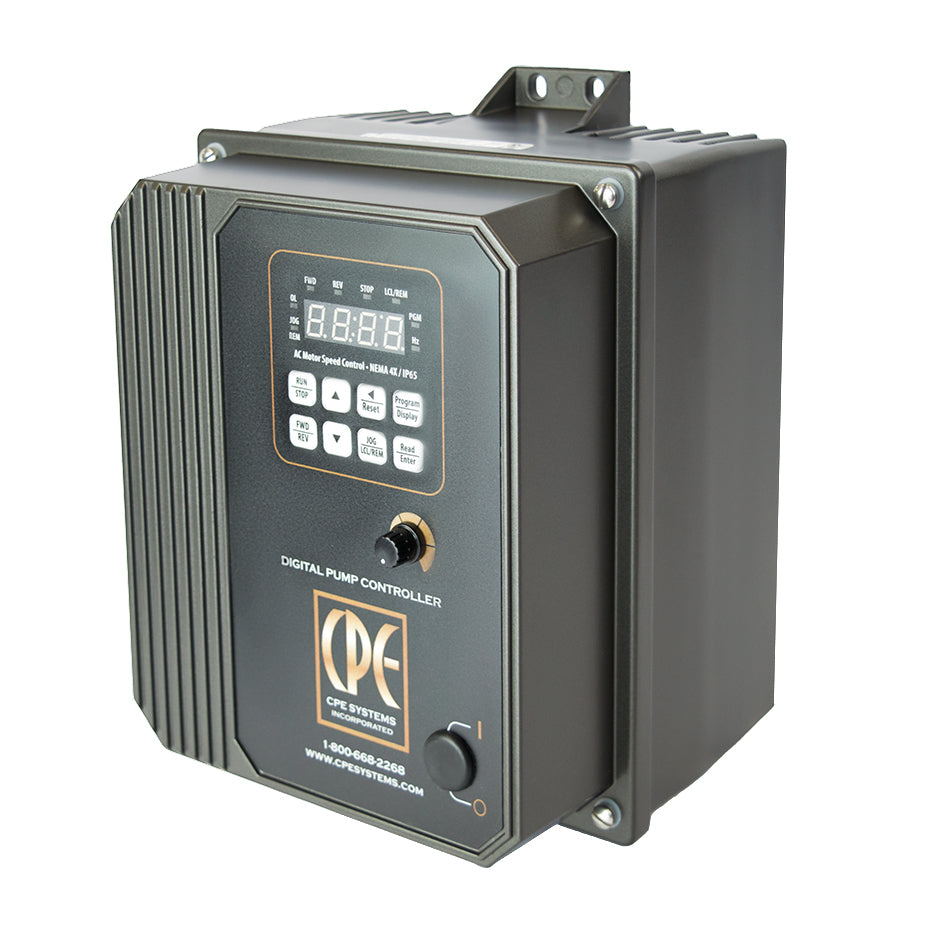

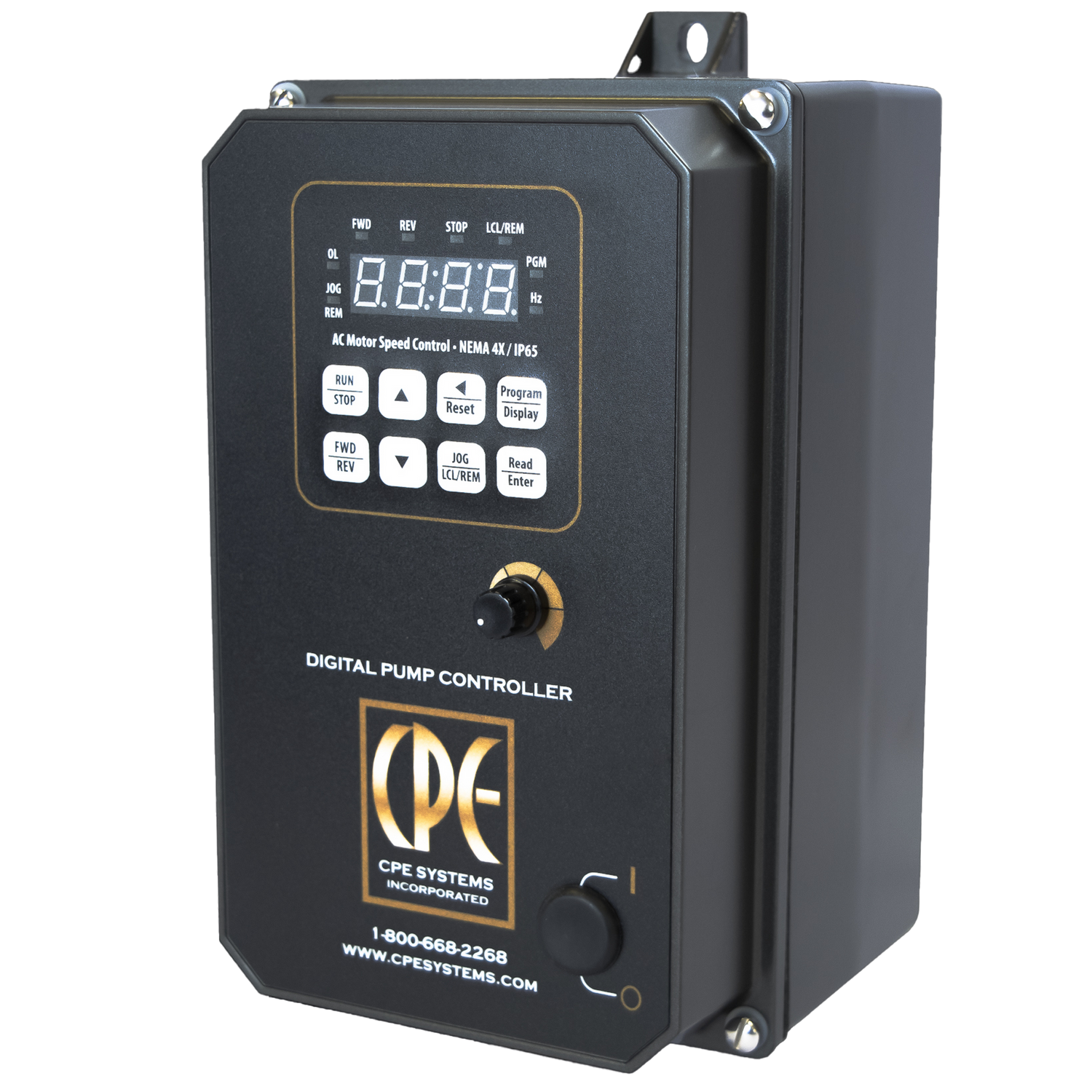

KBDA Digital VFD

The KBDA variable frequency drive is easy to use, easy to install, and programmable.  There are eight models available ranging from 1 to 3 HP, in both single and three phase configurations. The casing is powder-coated aluminum and is NEMA 4X approved for wet locations, both indoor and outdoor.

KBDA Specifications:

• Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure
• Horsepower: 1HP - 3HP

• Powerful 200% Starting Torque

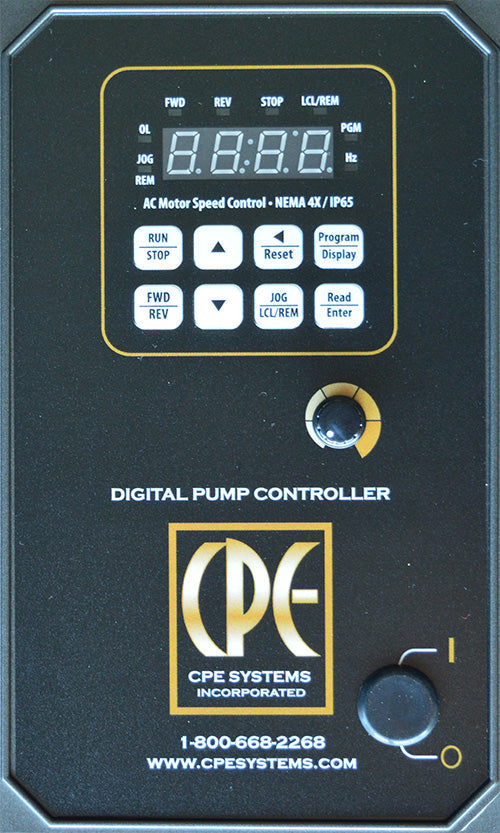

• Digital Display with LED Status Indicators
• Agency approvals:  UL, CE, CSA, C-Tick
• Built-in Potentiometer

KBDA Features:

• Sensorless Flux Vector Control
• Electronic Inrush Current Limit (EICLTM) Protection
• Run/Fault Relay Output Contacts
• Jog-Local Remote
• Holding Torque at Zero Speed in "Stop" mode
• Undervoltage and Overvoltage Protection
• Short Circuit Protection, phase to phase
• Ride-Through momentary power loss
• Regeneration eliminates tripping

Model	HP	Voltage	Size
KBDA-24P	1	230 Volt Three Phase	9.5" X 5.5" X 5.9"
KBDA-24D	1	115/230 Volt Single Phase	9.5" X 5.5" X 5.9"
KBDA-27D	2	115/230 Volt Single Phase	9.8" X 7.6" X 7.3"
KBDA-29(1)P	3	230 Volt Single Phase	9.8" X 7.6" X 7.3"
KBDA-29P	3	230 Volt Three Phase	9.8" X 7.6" X 7.3"
KBDA-42	1	460 Volt Three Phase	9.5" X 5.5" X 5.9"
KBDA-45	3	460 Volt Three Phase	9.5" X 5.5" X 5.9"

No manual available for download.
