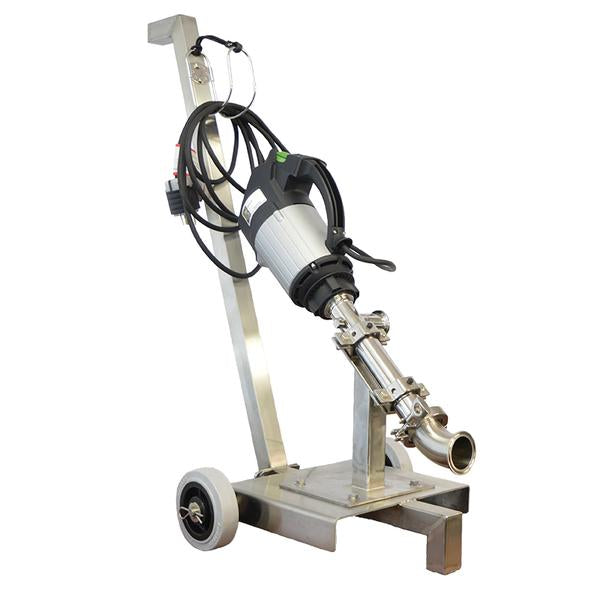

High Proof Alcohol Portable Pump Assembly - UL Approved

Features:

• Explosion proof
• 120V single phase electric, 700 Watts
• 1 ½” Tri-clamp discharge
• 2” Tri-clamp inlet
• 316 SS / PTFE Fitted / ETFE impeller
• Up to 1000 CPS
• Up to 60 GPM (based on water)
• Up to 40’ head
• Easy to clean – top pull-out
• Tested and certified according to ATEX-Directive 94/9/EC,
  category 2 for use in Zone 1
• UL approved for use in hazardous locations, Class I, Groups C and D, Class II, Groups E, F, and G.
• Mounted on a stainless steel cart

Download the spec sheet

Seals:

Standard seal

• Material: PTFE / FKM

Ultra low-temperature seal

• Designed for ethanol extraction and can handle ultra-low temperatures
• Material: FEP / PTFE
