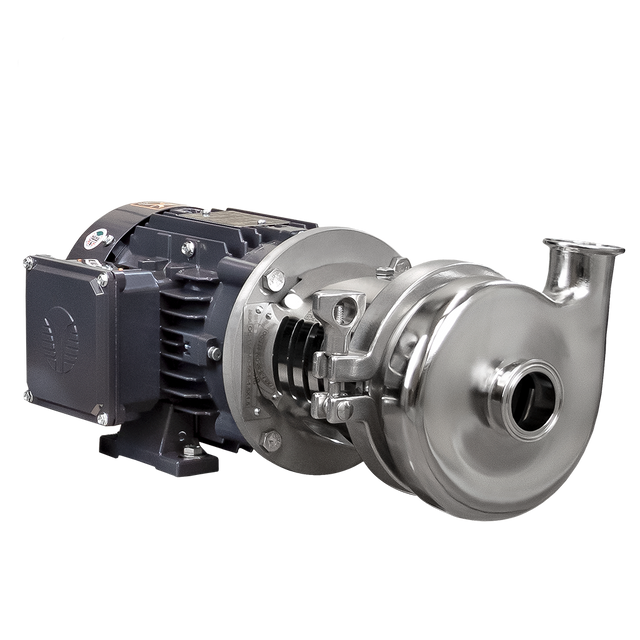

C114MD Centrifugal Pump With TEFC Motor

This pump assembly features the popular C114MD centrifugal pump head mounted on a TEFC motor. The C114 is a classic sanitary centrifugal pump with an external mechanical seal and stainless steel construction. The C114 pump head is attached to a premium efficient TEFC painted aluminum motor, which has IP55 enclosure protection, Class F insulation, and is Class I, Division II, Groups A, B, C and D compliant. The TEFC motor is a durable, efficient, and affordable option for processing facility applications where a washdown motor is not necessary.  For special applications requiring larger suction lines, the C214 features an enlarged 2" inlet.

C114/C214 Specifications:

• Tri-Clamp connections
  • C114 (Standard): 1-1/2" x 1-1/2"
  • C214 (Enlarged inlet): 2" x 1-1/2"
• Premium efficiency Painted TEFC Motor
• 316L stainless steel construction
• 304 stainless steel adapter
• External mechanical seal
• EPDM Elastomers

C114 SEAL OPTIONS:

"D" Single mechanical external seal

"DG" Single mechanical external seal with replaceable silicone carbide seat

"F" Single mechanical external seal with water cascade

C114 Horsepower Options

1/2 HP: The capacity of this pump is 50 GPM and it will put out 15 ft of head pressure, ideal for microbreweries (up to 2 BBL) and small farm gate wineries.

3/4 HP: The capacity of this pump is 75 GPM and it will put out 15 ft of head pressure, ideal for microbreweries (3 - 5 BBL) and small estate wineries.

1 HP: The capacity of this pump is 75 GPM and it will put out 65 ft of head pressure, ideal for microbreweries (5 - 10 BBL) and estate wineries.

1-1/2 HP: The capacity of this pump is 100 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (10 - 15 BBL) and estate wineries.

2 HP: The capacity of this pump is 125 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (> 15 BBL) and larger estate wineries.

3 HP The capacity of this pump is 150 GPM and it will put out 75 ft of head pressure, ideal for large microbreweries (>25 BBL) and larger estate wineries.
