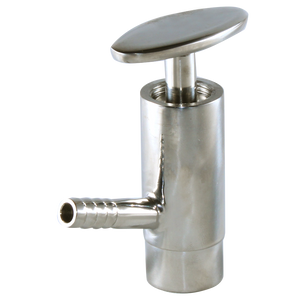

Sanitary Sample Valve

$9348
SKU: VA/W4SVWW-P-1
Valves
Connection

The SVW Sanitary Sample Valve is a sanitary valve that allows for sampling of products from a production line or tank, while maintaining a sanitary environment. This sampling valve can be used at various stages of the production process and is available with three different connections to accommodate a range of applications. This sample valve allows for mid-stream collection without contaminating the product.

Description

The SVW Sanitary Sample Valve is a sanitary valve that allows for sampling of products from a production line or tank, while maintaining a sanitary environment. This sampling valve can be used at various stages of the production process and is available with three different connections to accommodate a range of applications. This sample valve allows for mid-stream collection without contaminating the product.

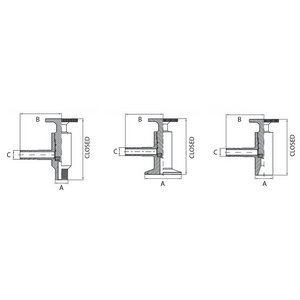

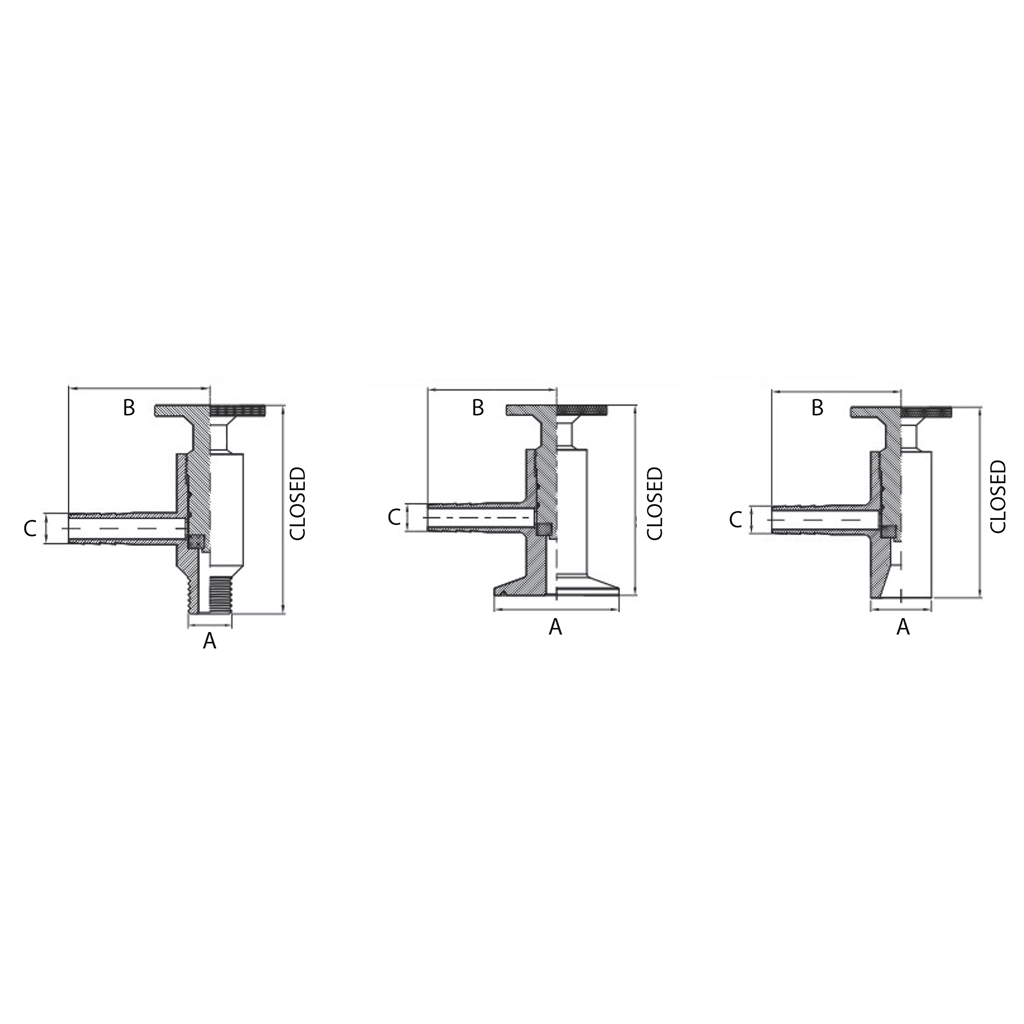

Sanitary Sample Valve Measurements

Size Style Seat Material A B  C Closed Weight

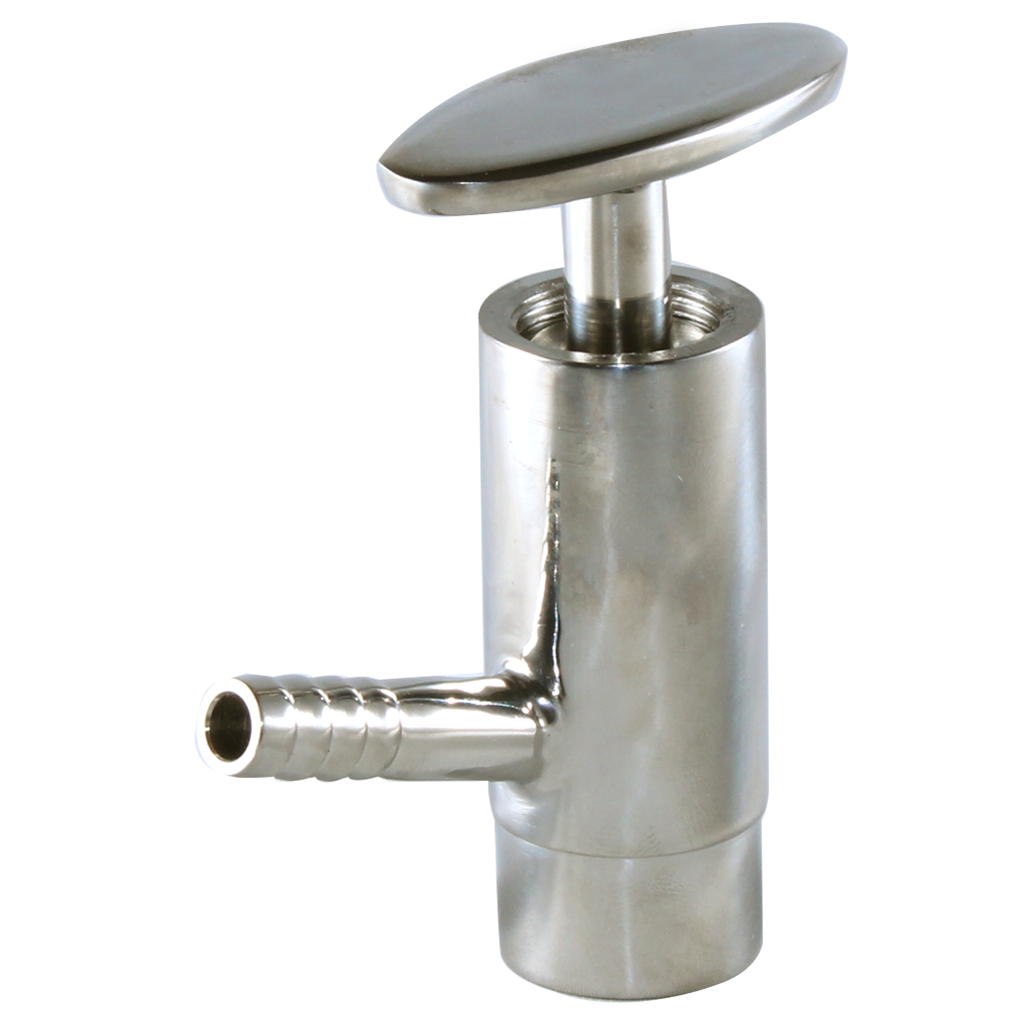

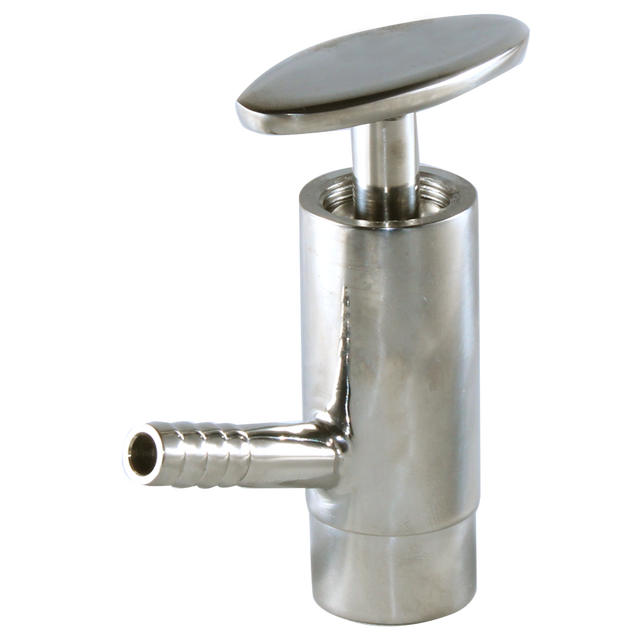

1" Butt-Weld PTFE 1.00 2.05 0.47 3.50 0.794

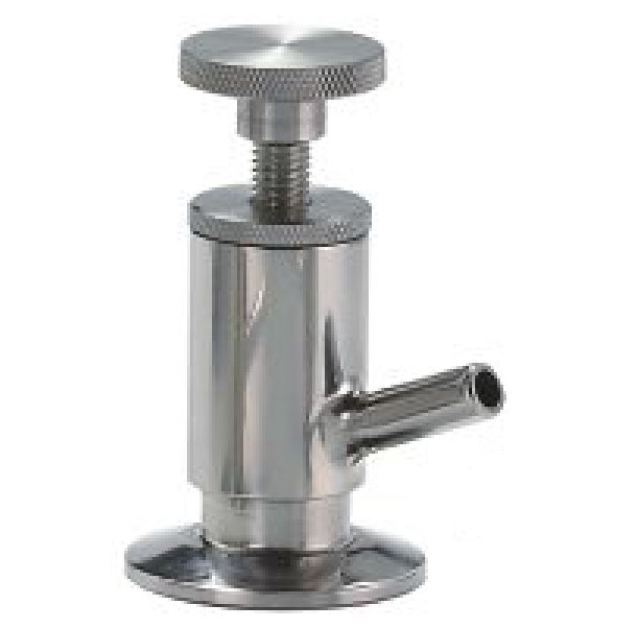

1" Tri-Clamp PTFE 1.99 2.05 0.47 3.50 0.838

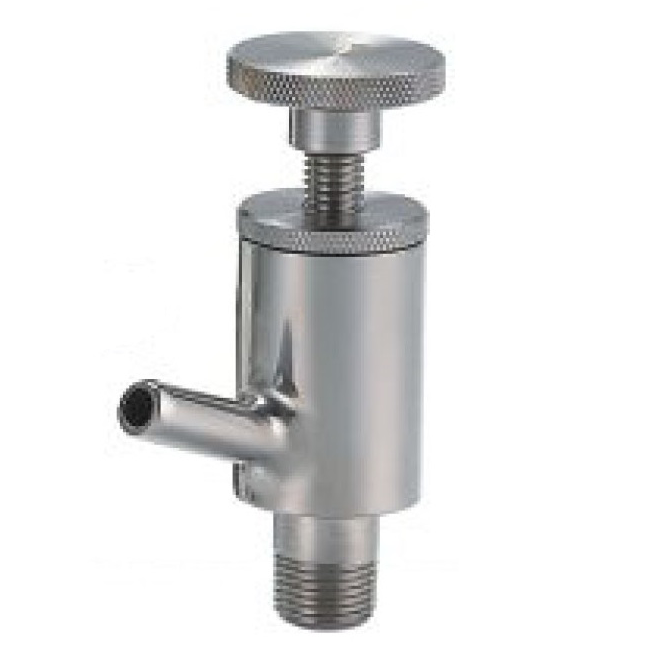

3/8" NPT PTFE 0.67 2.05 0.47 3.50 0.794

Specifications
  • Construction Material: 304 Stainless Steel
  • O-Ring Material: Double silicone O-rings
  • Seat Material: PTFE
  • Temperature Rating: 300°F
  • Pressure Rating: 200 PSI
  • Sample Port Connection: Hose Barb Connection
  • Connection Style: Buttweld, Tri-Clamp, or NPT
