Encapsulated 2-Way Ball-Valve

$13307
SKU: BV/W6BVETC-P-.50
Valves
Connection Type
Size

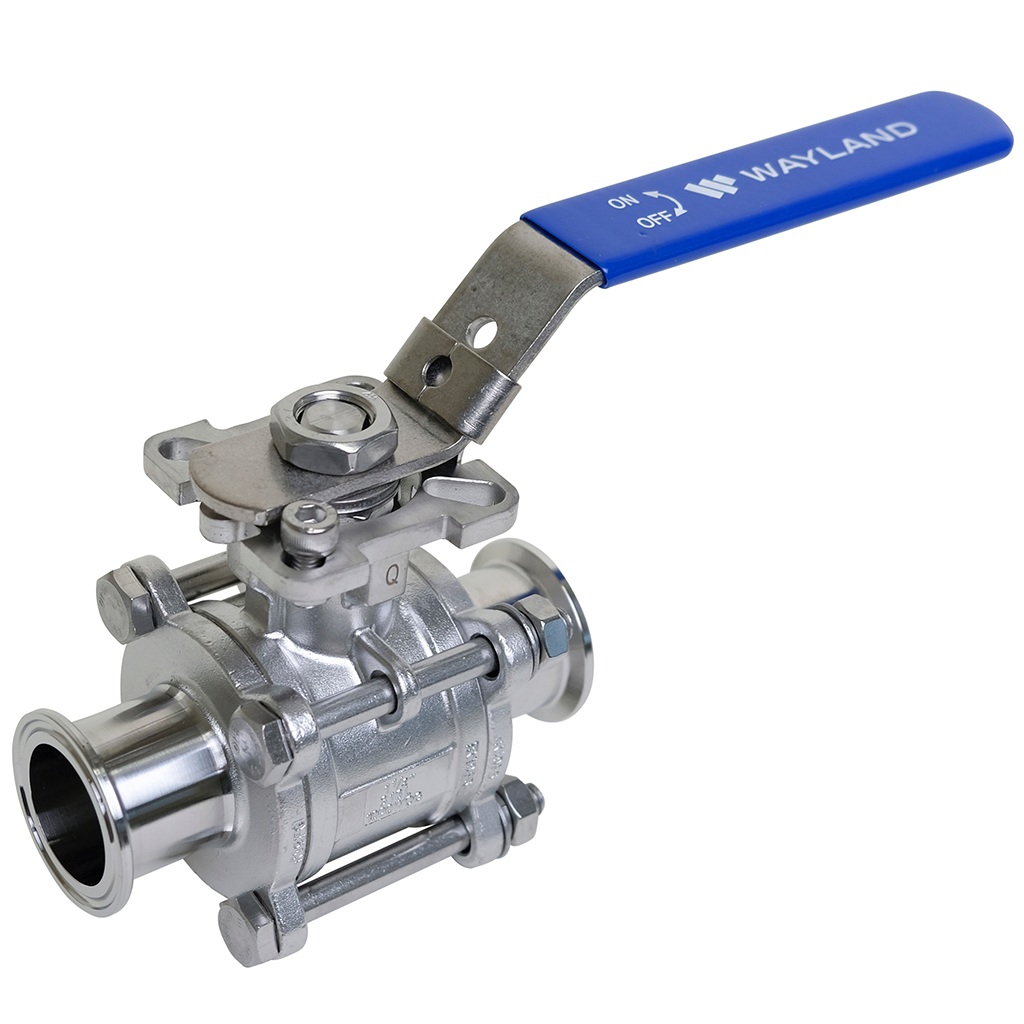

The Encapsulated 2-Way Ball Valve is a sanitary valve designed to control the flow of product in process lines. This style of ball-valve encases the ball and seats within the valve body, resulting in a lower pressure drop, less turbulent flow, reduced torque and friction losses, and improved efficiency and longevity. A stainless steel ball is used to restrict flow by sealing around matching PTFE seats, which provides a complete shut-off. The ball valve is designed to control flow of high volume, temperature, and pressure products in high-performance and sanitary applications. It delivers clean, reliable, and efficient service while remaining durable and easy to maintain.

Description
"

The Encapsulated 2-Way Ball Valve is a sanitary valve designed to control the flow of product in process lines. This style of ball-valve encases the ball and seats within the valve body, resulting in a lower pressure drop, less turbulent flow, reduced torque and friction losses, and improved efficiency and longevity. A stainless steel ball is used to restrict flow by sealing around matching PTFE seats, which provides a complete shut-off. The ball valve is designed to control flow of high volume, temperature, and pressure products in high-performance and sanitary applications. It delivers clean, reliable, and efficient service while remaining durable and easy to maintain.

Ball-Valve Features

• Blow-out proof stem

• ISO 5211 mounting pad for direct mount automation

• Lockable handle to prevent accidental opening and closing

• Fully encapsulated construction

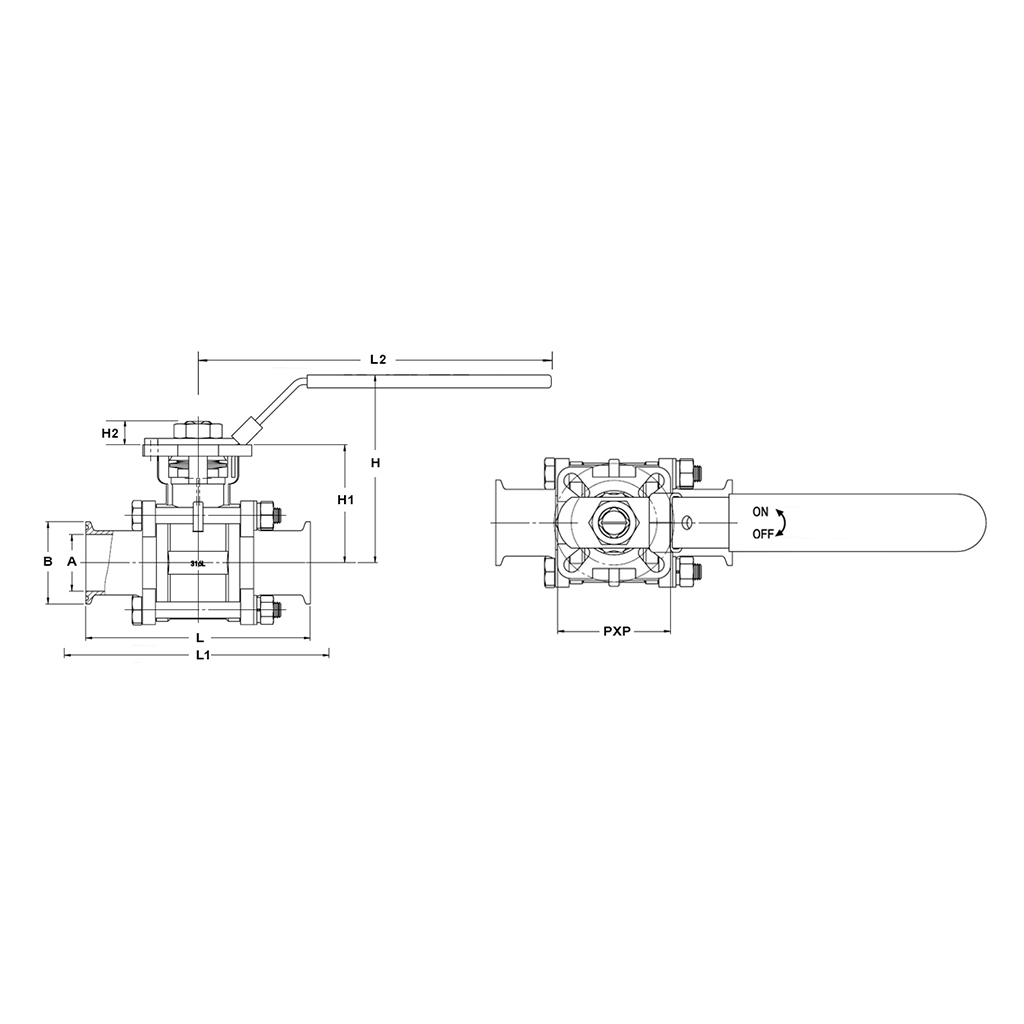

Encapsulated 2-Way Ball-Valve Dimensions

Size

A

B

L

L1*

L2

H2

H1

H

PXP

ISO5211

Stem Size

1/2""

0.37

0.99

3.54

4.72

5.12

0.33

1.42

2.68

1.654 X 1.654

F03 & F04

0.35 X 0.35

3/4""

0.62

0.99

4.02

6.14

5.12

0.51

1.67

2.68

1.654 X 1.654

F03 & F04

0.35 X 0.35

1""

0.87

1.99

4.53

6.46

6.69

0.49

2.07

3.54

1.969 X 1.969

F04 & F05

0.43 X 0.43

1-1/2""

1.37

1.99

5.43

7.64

7.09

0.57

2.85

4.61

2.559 X 2.559

F05 & F07

0.55 X 0.55

2""

1.87

2.52

6.14

8.74

8.46

0.57

3.13

4.92

2.559 X 2.559

F05 & F07

0.55 X 0.55

2-1/2""

2.37

3.05

6.69

9.25

9.84

0.59

3.74

5.51

2.559 X 2.559

F05 & F07

0.55 X 0.55

3""

2.87

3.58

7.76

9.76

12.79

0.81

4.35

6.10

3.563 X 3.563

F07 & F10

0.67 X 0.67

4""

3.83

4.68

9.53

12.80

12.95

0.87

5.04

6.89

3.563 X 3.563

F07 & F10

0.87 X 0.87

6""

5.78

6.57

15.51

-

26.77

1.10

8.66

9.65

4.685 X 4.685

F10 & F12

1.063 X 1.063

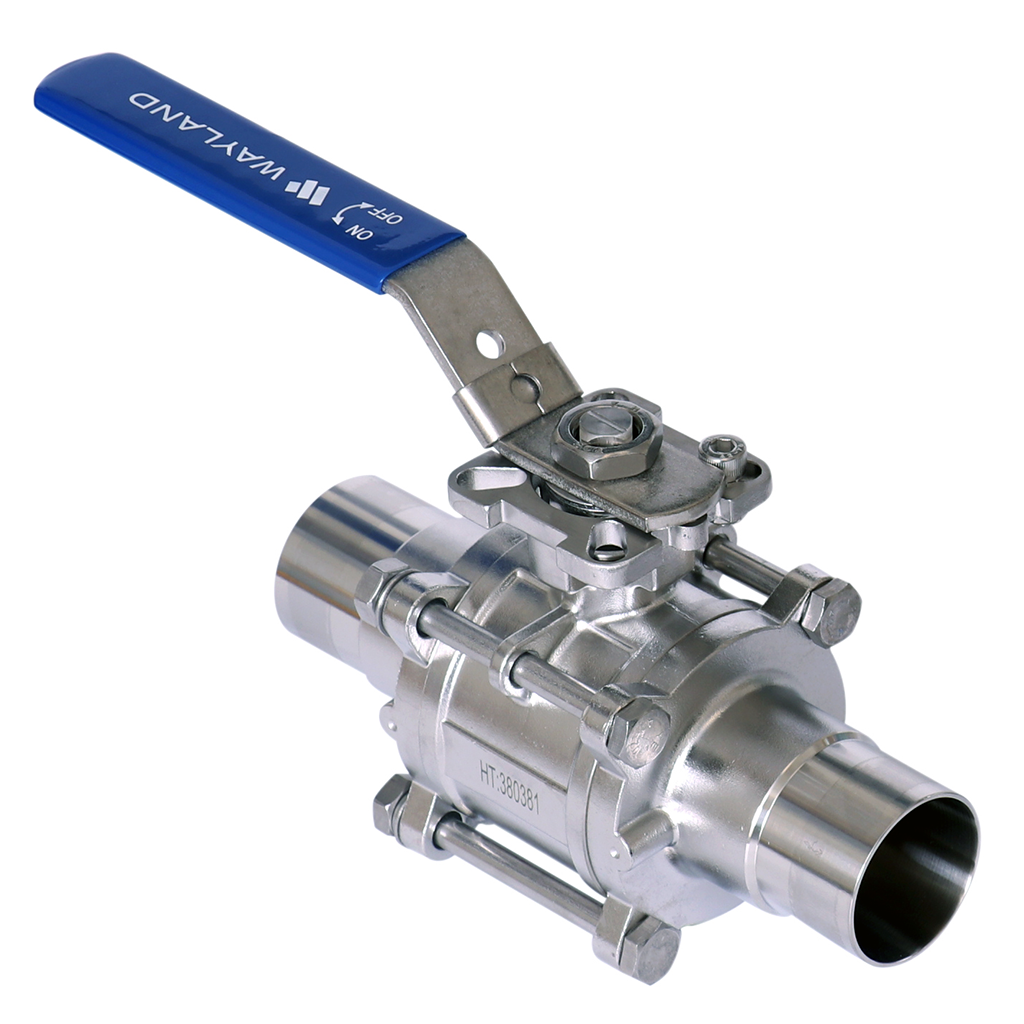

* Extended Butt-Weld End

Encapsulated 2-Way Ball-Valve Specifications

Size

Weight (lbs)

Break Torque (in. lbs.)

1/2""

1.20

124

3/4""

1.70

124

1""

3.10

159

1-1/2""

5.70

257

2""

8.60

332

2-1/2""

14.40

518

3""

27.25

788

4""

44.00

885

6""

148.00

1947

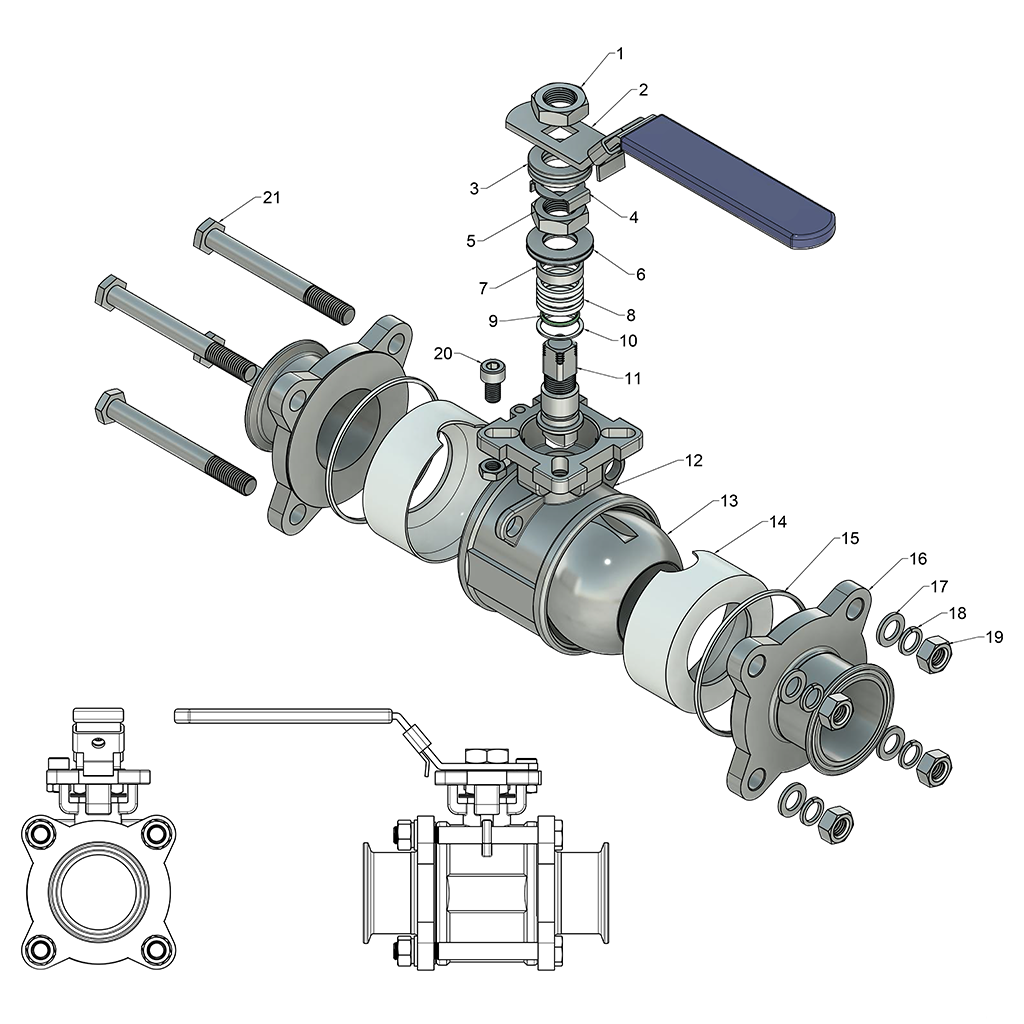

Encapsulated 2-Way Ball Valve Parts

Item #

Description

Material

Quantity

1

Handle Nut

304 SS

1

2

Handle

304 SS

1

3

Flat Washer

304 SS

2

4

Lock Tab Washer

304 SS

1

5

Packing Nut

304 SS

1

6

Belleville Washer

304 SS

2

7

packing Bushing

304 SS

1

8

Triple Packing

PTFE

3

9

O-Ring

FKM

1

10

Stem Seal

PTFE

1

11

Stem

316L SS

1

12

Valve Body

316L SS

1

13

Ball

316L SS

1

14

Seat

PTFE

2

15

Body Seal

PTFE

2

16

End Piece

316L SS

2

17

Washer

304 SS

4

18

lock Washer

304 SS

4

19

Hex Nut

304 SS

4

20

Stop Pin

304 SS

1

21

Body Bolt

304 SS

4
"

Specifications
  • Material: 316 Stainless Steel
  • ID Polish is ≤ 32Ra
  • Pressure Rating (Body)
    1/2" to 2": 1000 PSI WOG
    2-1/2" to 4": 800 PSI WOG
    6": 700 PSI WOG
  • Material: CF3M (316L) stainless steel
  • PTFE seats and gaskets are compliant with FDA specifications
