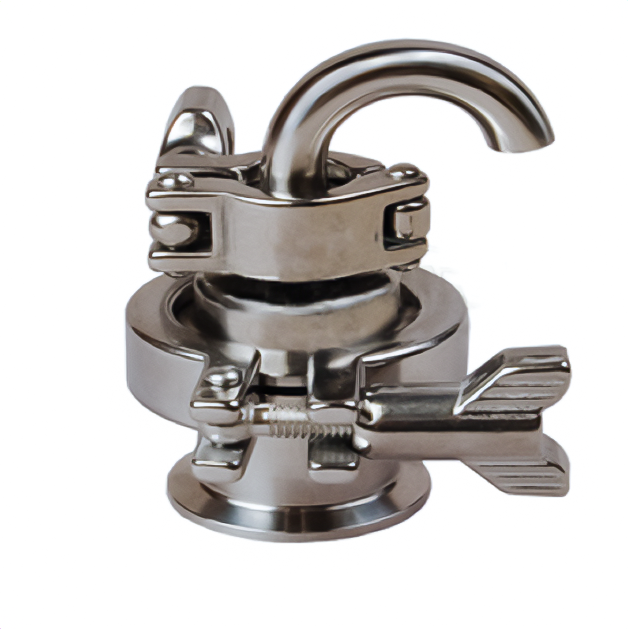

Air Relief Valve

$23843
SKU: VA/GC60ARV-2.0
Relief Valve
Size

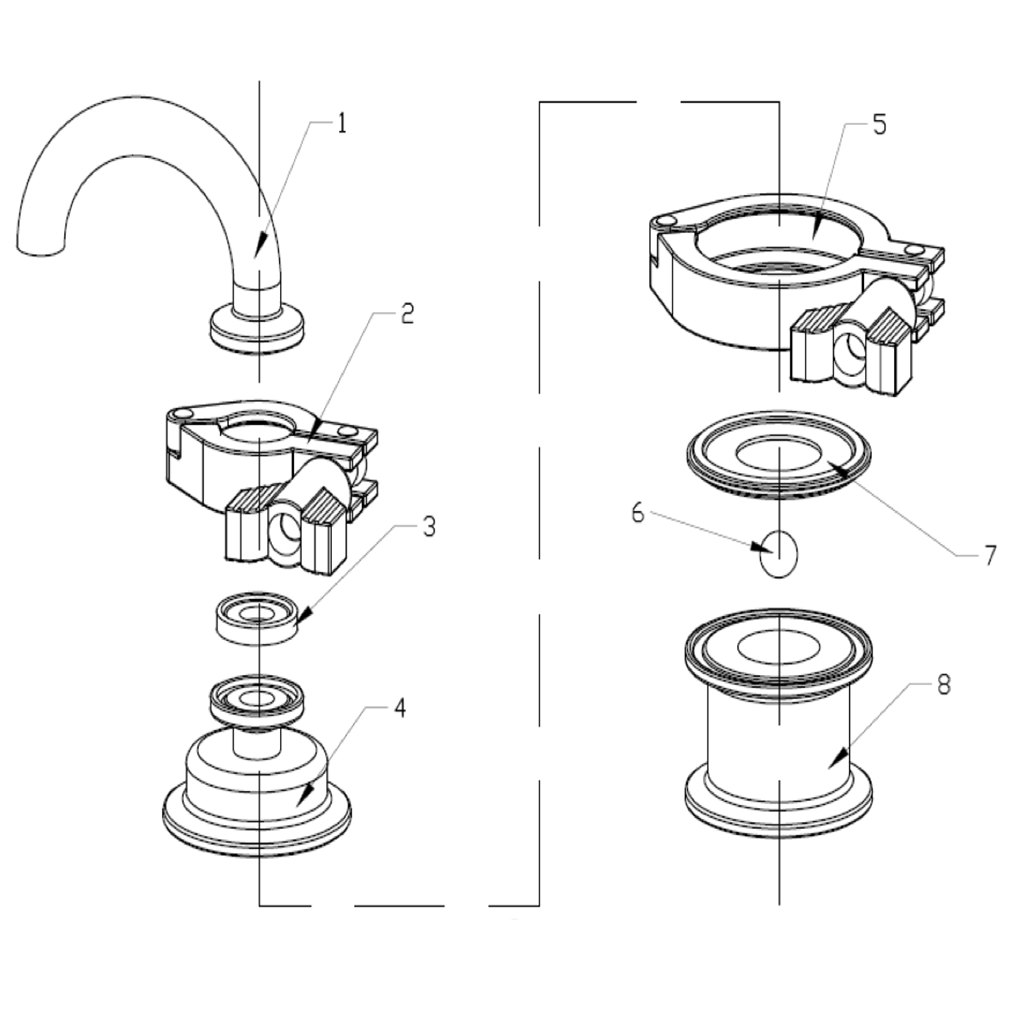

The Air Relief Valve is used primarily when the removal of air from a line without loss of product is a concern. The design is simple: a ferrule, a housing with a plastic ball, and a vent pipe, all connected using 2 standard heavy duty clamps. This design will not let air enter the line or container under negative pressure.

Description

The Air Relief Valve is used primarily when removal of air from a line without loss of product is a concern. The design is simple: a ferrule, a housing with a plastic ball, and a vent pipe all connected using 2 standard heavy duty clamps. This design will not let air enter the line or container under negative pressure.

The 60ARV is double seated. The lightweight ball is freely moving and depending on pressure conditions will close against the upper or lower seat. This valve is not designed for use in operation with liquids having less than 1.0 specific gravity.

This is the new model based off the 60ARV relief valve.

Air Relief Valve Dimensions:

Size A C E Weight
1.5" 2.516 4.488 0.370 2.10
2" 3.047 4.488 0.370 1.90


Specifications
  • 304 Stainless Steel construction
  • Polypropylene ball (PTFE available by special order)
  • EPDM gaskets (Viton and Silicon available by special order)
  • Sizes: 1.5" and 2"
  • Max. Operating Temperature: 210°F
  • Max. Operating Pressure: 140 PSI
