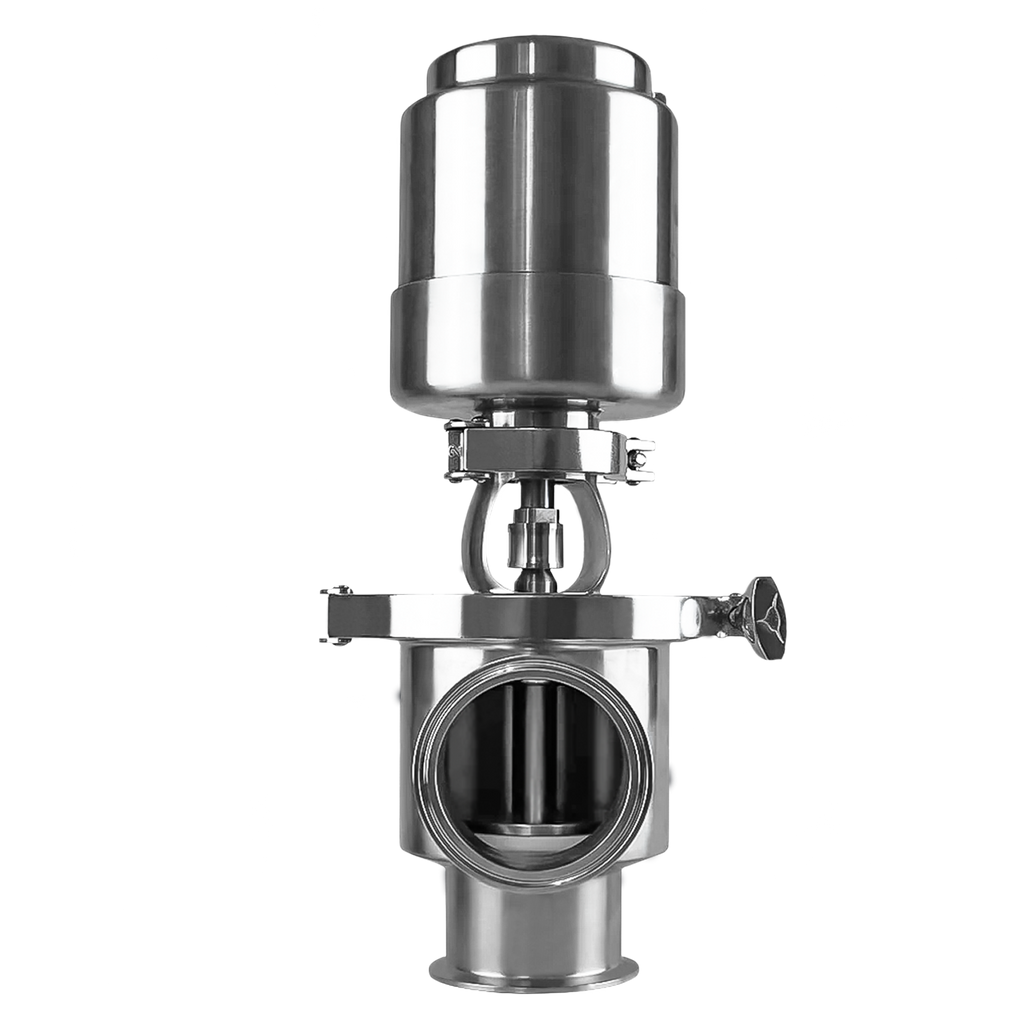

361 Series Air Actuated Seat Valve

The 361 series valve is a classic sanitary seat valve for the sanitary beverage, food, dairy, and pharmaceutical industries. The 361 valve can be a divert valve or a shut-off valve, depending on the chosen body type. This model is remote-controlled via compressed air, allowing them to be integrated into automated systems and valve matrices. Popular in dairy plants, the 361 valve is 3A certified and food safe. It meets all clean-in-place standards and is completely sanitary. These valves were designed to be durable, reliable, and able to withstand harsh operating conditions. The 361 Valve is a direct replacement for the discontinued Tri Clover 361 series valves. The dimensional and performance compatibility means they will fit into a valve matrix featuring Tri Clover valves. The 361 valve is repairable and spare parts are available (and compatible with Tri-Clover 361 valves).

361 Valve Materials

• Wetted Steel Surfaces material: 316L Stainless Steel

• Finish: 32 Ra Standard ID

• Plug Stem: PTFE (LP bonded Buna available on special order)

• Product Wetted Seals: EPDM (NBR available on special order)

• Other Seals: EPDM (Buna available on special order)

361 Valve Design

• Tri-Clamp connections

• Temperatures up to 285>°

• Open yolk design

• Short stroke actuator

• Precision moulded bonnet gaskets

• Shut-off and divert valves

• Valve porting flush with the bottom surface (ensures full drainage)

• Highly polished surface

• Clean-in-place design

The 361 valve is available in a wide range of bodies, actuators, and setups. If you cannot find the model you are looking for, please contact us.
