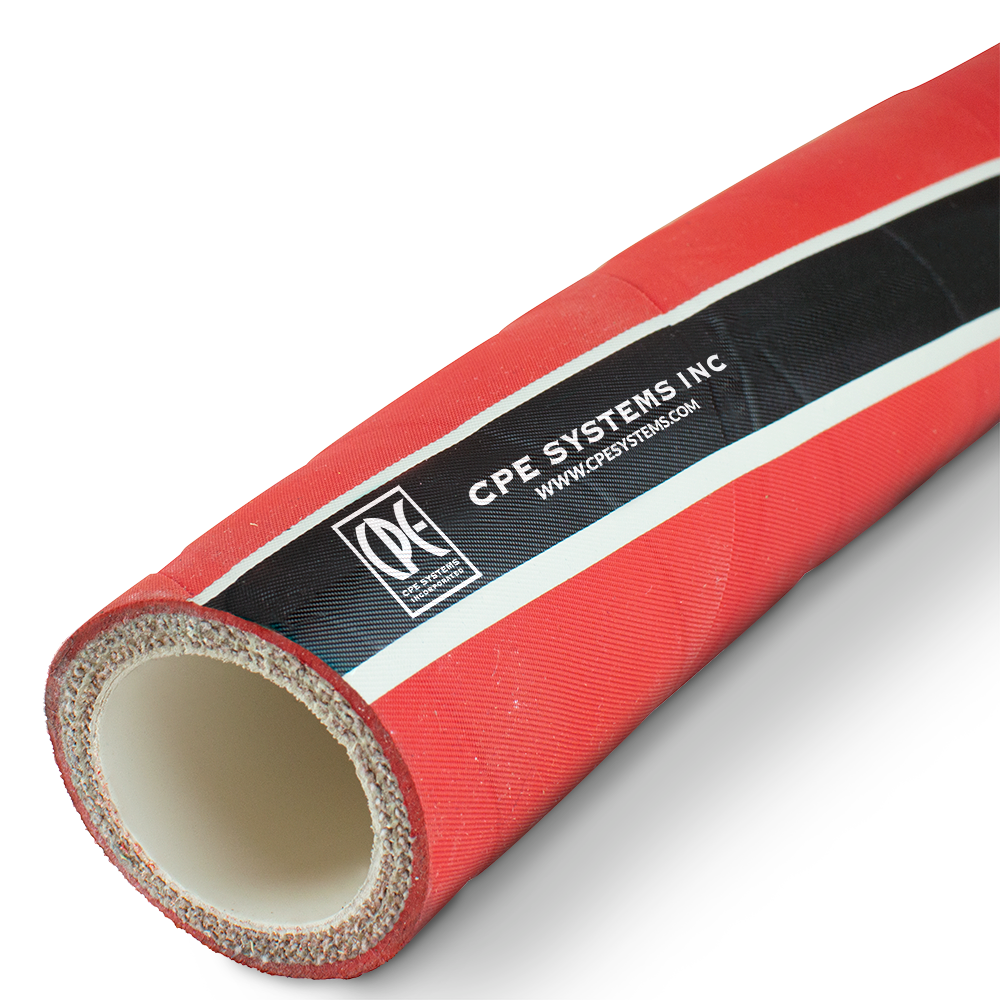

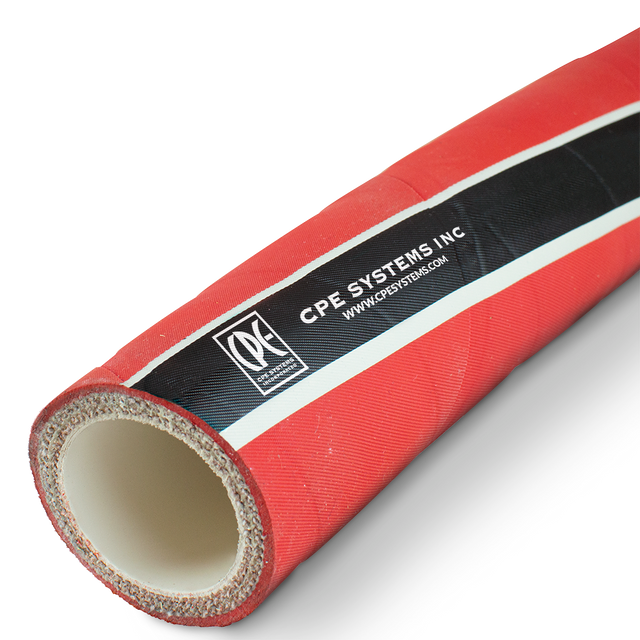

Our Red Brewers Hose by Contitech is the replacement for the popular Goodyear BREWLINE and is designed with breweries in mind. It is lighter in weight and more flexible than the old-style Brewline while maintaining its toughness and is built to withstand the wear and tear of brewery life.
This hose is perfect for non-oily product transfer and its smooth cover and tube prevent material and bacteria buildup.
This hose has also been branded as "Drinkline" by Contitech and is FDA/USDA approved for use in beverage and food processing plants of all types.
Tube: EPDM
Cover: Red EPDM with a white stripe
Reinforcement: Spiral-plied synthetic fabric 4 plies on 3/4" to 1-1/2" sizes, 6 plies on 2" and up
Temperature Range: -40°F to 220°F (-40°C to 104°C)
Certifications: FDA/USDA compliant, 3-A Sanitary approved (Standard 18-03)
Working Pressure: 250 PSI
| Inner Ø (in) | Outer Ø (in) | Weight (lbs/ft) | Working Pressure (PSI) | Vacuum HG (in) |
| 3/4 | 1.319 | 0.45 | 250 | 20 |
| 1 | 1.598 | 0.62 |
250 | 20 |
| 1 1/4 | 1.862 |
0.74 |
250 | 20 |
| 1 1/2 | 2.114 |
0.88 |
250 | 20 |
| 2 | 2.772 |
1.46 |
250 | 20 |
| 2 1/2 | 3.346 |
2.01 |
250 | 20 |
| 3 | 3.846 |
2.34 |
250 | 20 |
| 4 | 4.846 |
3.03 |
250 | 20 |
