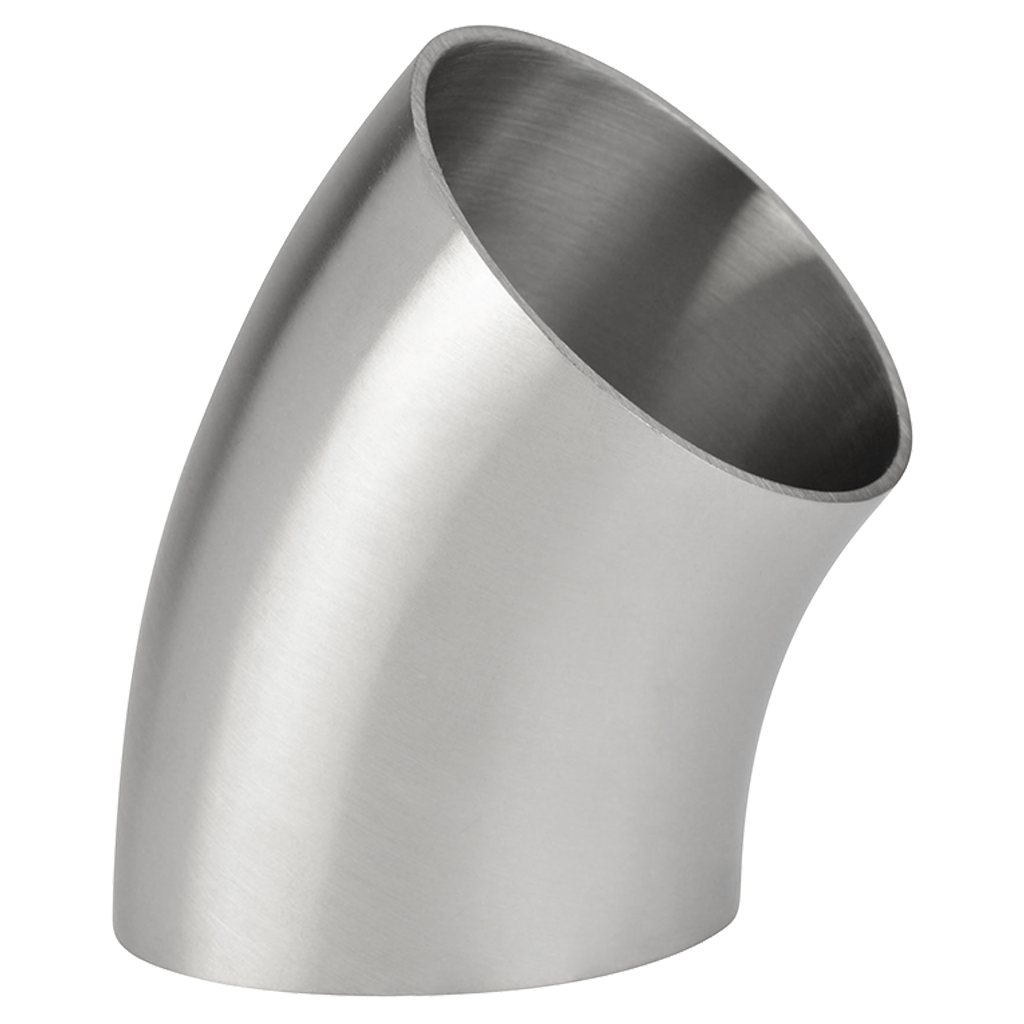

2WK - Butt-Weld Short 45° Elbow - Polished
$8.54
Unit price
/
Unavailable
Description
Description
The 2WK - Butt-Weld Short 45° Elbow is a sanitary fitting that is designed to be welded into permanent sanitary tubing installations to create 45° change in direction. This fitting is constructed of either 304 or 316 stainless steel, and comes in sizes ranging from 1/2" to 12".
Other sizes are available upon request; please call with any inquiries.

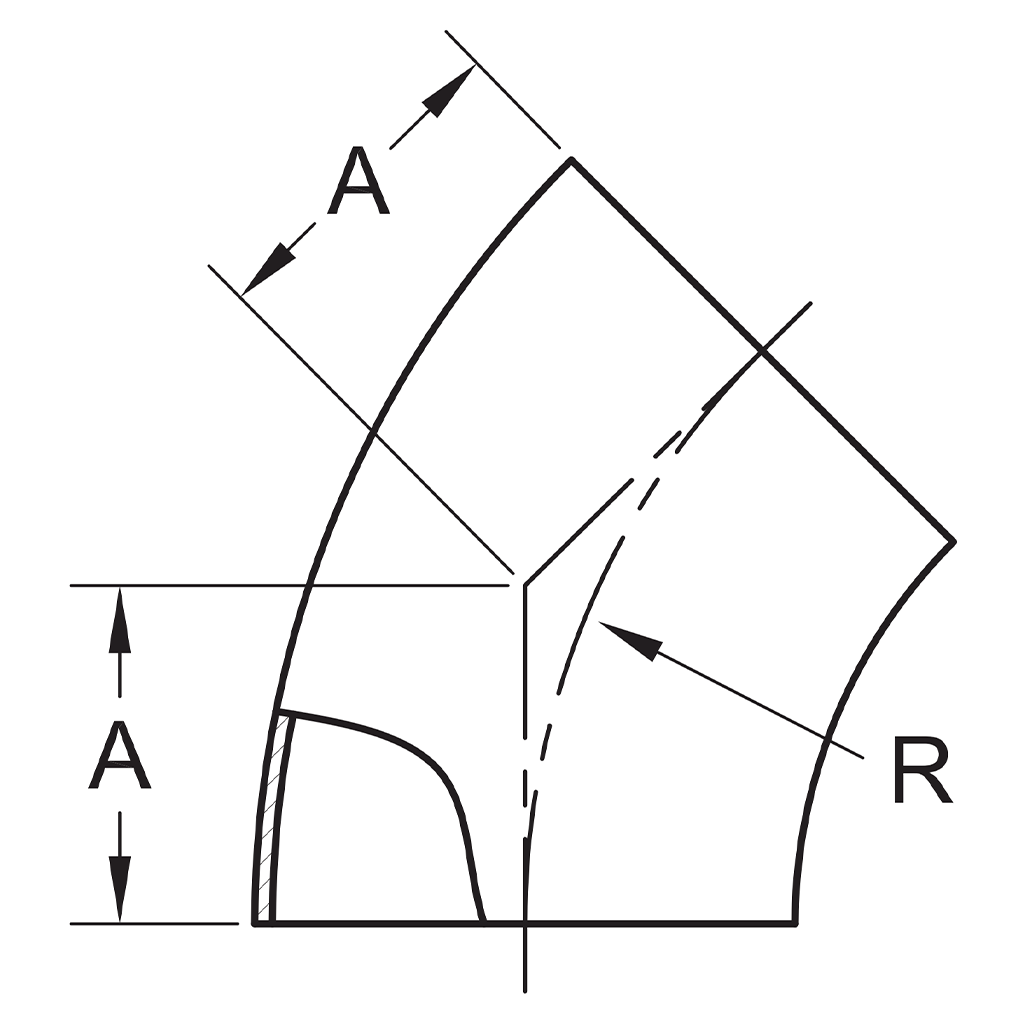

| Tube O.D. | A | R |
| 1/2" | 0.47 | 1.12 |
| 3/4" |
0.47 |
1.12 |
| 1" | 0.62 | 1.50 |
| 1-1/4" |
0.78 |
1.87 |
| 1-1/2" |
0.94 |
2.25 |
| 2" | 1.25 | 3.00 |
| 2-1/2" | 1.56 | 3.75 |
| 3" | 1.87 | 4.50 |
| 4" | 2.50 | 6.00 |
| 5" | 3.12 | 7.50 |
| 6" | 3.75 | 9.00 |
| 8" | 5.00 | 12.00 |
| 10" | 6.25 | 15.00 |
| 12" | 7.50 | 18.00 |
