28WB - Butt-Weld True Wye - Polished
$123.75
Unit price
/
Unavailable
Description
Description

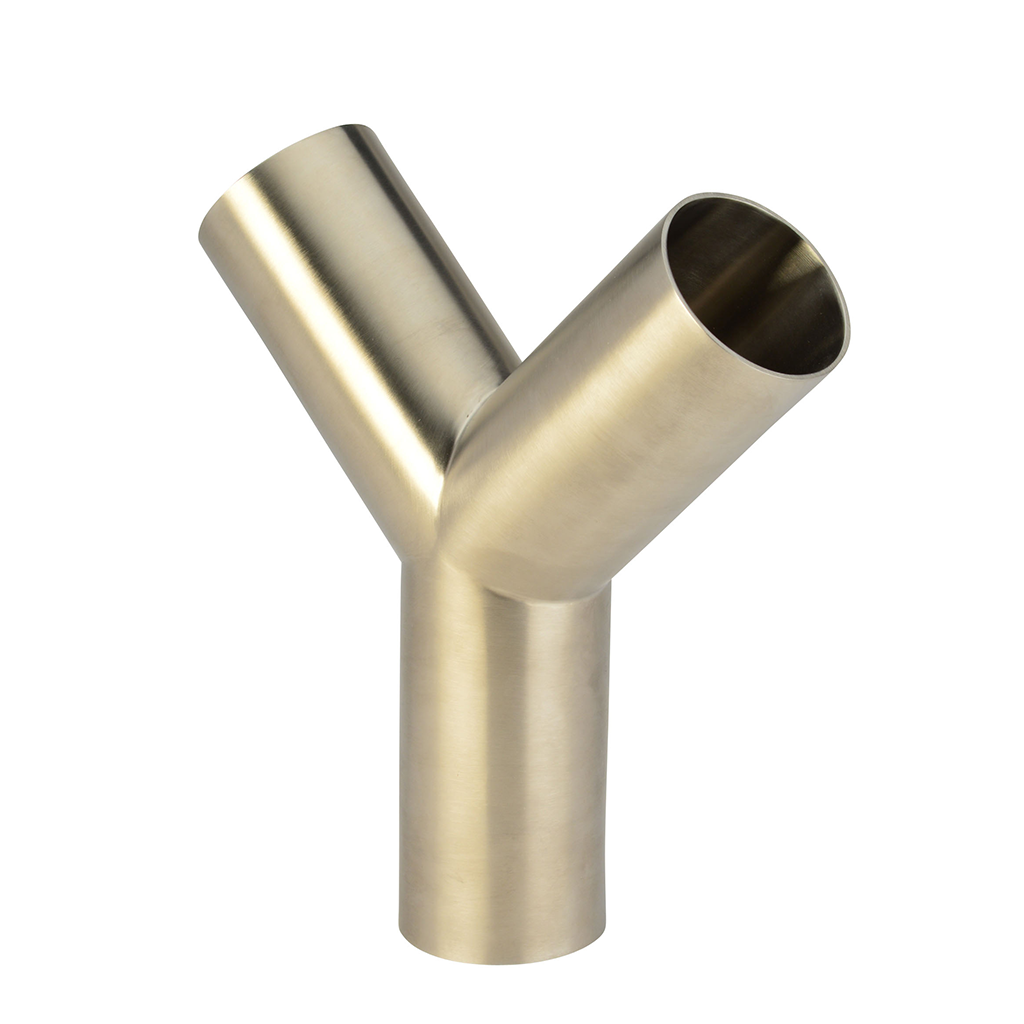

The 28WB Butt-Weld True Wye is a 3A-certified sanitary fitting designed to be welded into permanent piping lines. It is made of either 316L or 304 stainless steel and polished to 32Ra ID/OD. Other sizes are available upon request; please call with any inquiries.

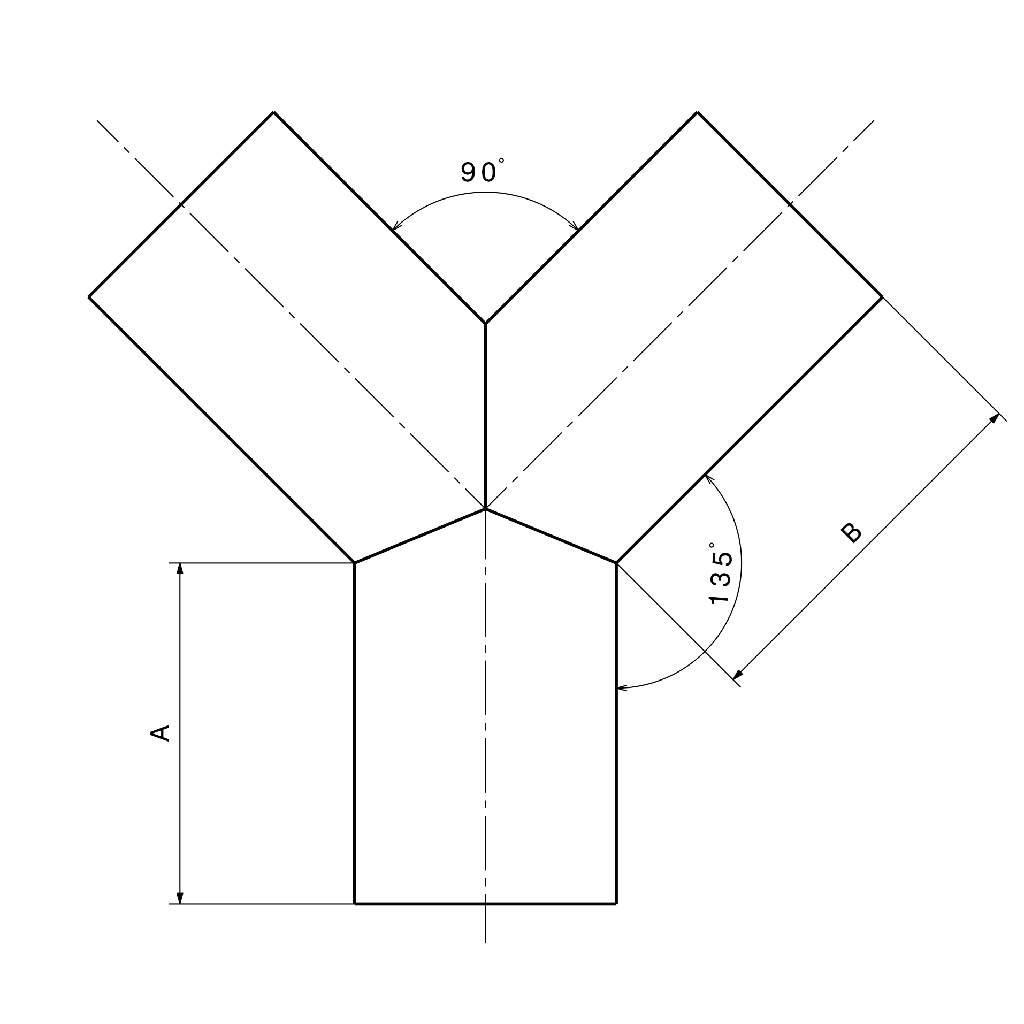

| Tube O.D. | A | B |
| 1" | 2.00 | 2.44 |
| 1-1/2" | 2.00 | 2.44 |
| 2" | 2.62 | 3.25 |
| 2-1/2" | 3.37 | 4.12 |
| 3" | 4.00 | 4.87 |
| 4" | 5.37 | 5.60 |
| 6" | 7.81 | 8.62 |
