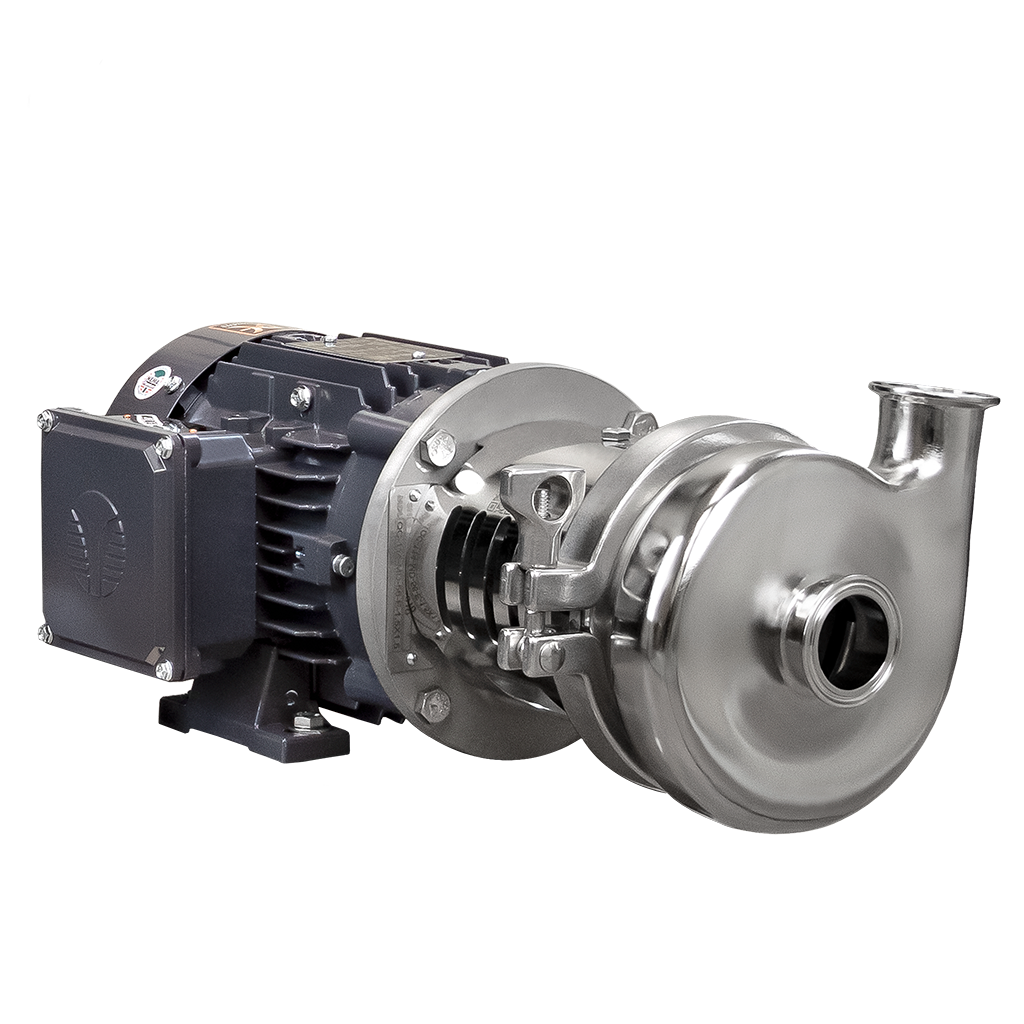

This pump assembly features the popular C+114MD centrifugal pump head mounted on a TEFC motor.
The C+114MD is a redesign of the popular C-series centrifugal pump, keeping he original casing design and popular external mechanical seal options, but the set screwed shaft is replaced with a shaft collar and the impeller pin is replaced with an impeller nut. These two new design features remove minor wobbles and rattling noises and create a more secure impeller and shaft element. For special applications requiring larger suction lines, the C+214 features an enlarged 2" inlet.
The C+114 pump head is attached to a premium, efficient TEFC painted aluminum motor. The TEFC motor has IP55 enclosure protection, class F insulation, and is Class I, Division II, Groups A, B, C and D compliant, making it perfect for processing facility applications where a washdown motor is not necessary.
C+114/C+214 Specifications:
- Tri-Clamp connections
- C+114 (Standard): 1-1/2" x 1-1/2"
- C+214 (Enlarged inlet): 2" x 1-1/2"
- Premium efficiency painted TEFC Motor
- 316L stainless steel construction
- 304 stainless steel adapter
- External mechanical seal
C+114 SEAL OPTIONS:
"D" Single mechanical external seal
"DG" Single mechanical external seal with replaceable silicone carbide seat
"F" Single mechanical external seal with water cascade
Horsepower
1 HP: The capacity of this pump is 75 GPM and it will put out 65 ft of head pressure, ideal for microbreweries (5 - 10 BBL) and estate wineries.
1-1/2 HP: The capacity of this pump is 100 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (10 - 15 BBL) and estate wineries.
2 HP: The capacity of this pump is 125 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (> 15 BBL) and larger estate wineries.
3 HP The capacity of this pump is 150 GPM and it will put out 75 ft of head pressure, ideal for large microbreweries (>25 BBL) and larger estate wineries.
