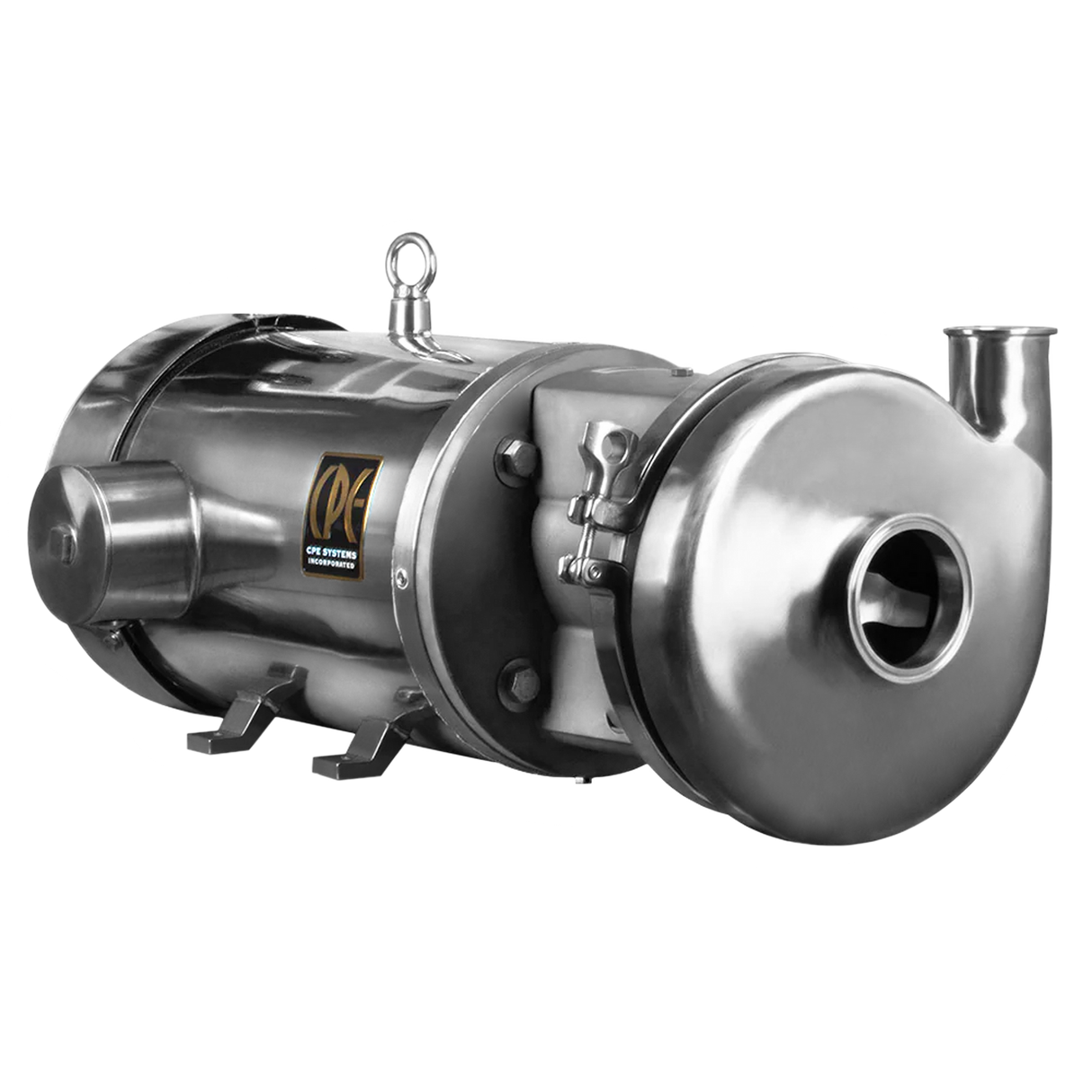

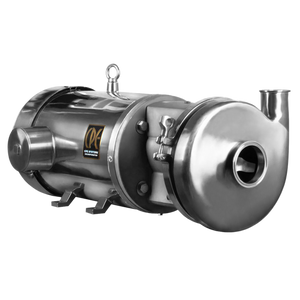

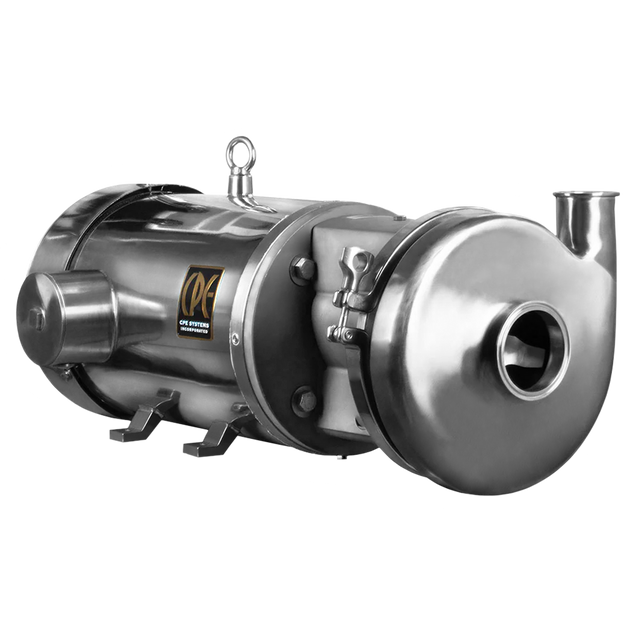

C328MD Centrifugal Pump (7 1/2 - 15 HP)

The CPE C328MD is ideal for large production beverage, dairy and food facilities with models up to 50 HP and flow capacity up to almost 700 GPM.

The CPE C328MD belongs to the C+series centrifugal pump family. This is a member of the C-Series family of pumps, permitting component intercompatibility with other C-Series pumps. This model has a 3 inch inlet, 2 inch outlet, and an 8 inch impeller, allowing it to move high volumes of fluid at higher pressures. It is built with a stainless steel washdown motor that makes cleaning easier and quicker, reducing the issues caused by spillage. The C328 Portable Assembly will give you years of reliable and excellent service.

​All pumps come standard with Tri-Clamp connections, but we can supply other connection types by special order. To order a pump larger than 15 HP please call us so we can help you select the correct configuration.

C328 Pump Curve

CPE C328MD Portable Pump​ Features and Options

• 3" X 2" Tri-clamp connections
• All stainless steel construction
• 25 ft cord with a standard NEMA locking plug
• NEMA 4X digital VFD
• Stainless steel cart

Voltage Options:

• 230/460 volt 3 phase

Seal Options:

• "D" Single mechanical external seal
• "DG" Single mechanical external seal with replaceable ceramic seat
• "F" Single mechanical external seal with water cascade

7 1/2 HP: The capacity of this pump is 350 GPM and it will put out 55 ft of head pressure

10 HP: The capacity of this pump is 425 GPM and it will put out 55 ft of head pressure

15 HP: The capacity of this pump is 525 GPM and it will put out 160 ft of head pressure

No manual available for download.
