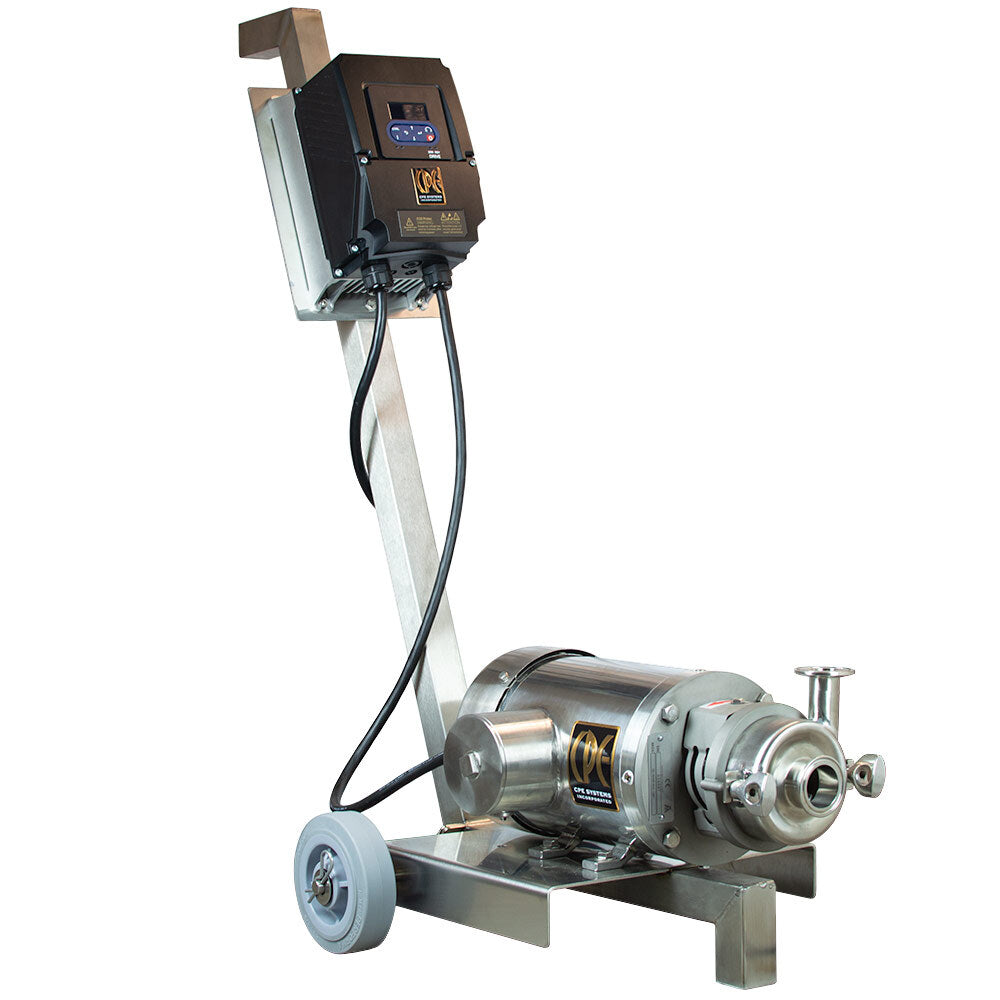

C+100MD Portable Pump Assembly

The C+100 is CPE’s next-generation centrifugal pump targeted at small applications. It maintains most compatibility with the C100 line, while bringing new innovation in pump design. This includes a collar that clamps down on the drive shaft over the full 360 degrees removing the minor wobble that can occur from set screwed shafts. The C+ is attached to our efficient stainless steel washdown motor.

Features:

• 1 1/2" X 1" Tri-clamp connections
• Stainless steel washdown motor
• 316L stainless steel construction
• 304 stainless steel adapter
• External mechanical D seal
• Canadian-made stainless steel cart

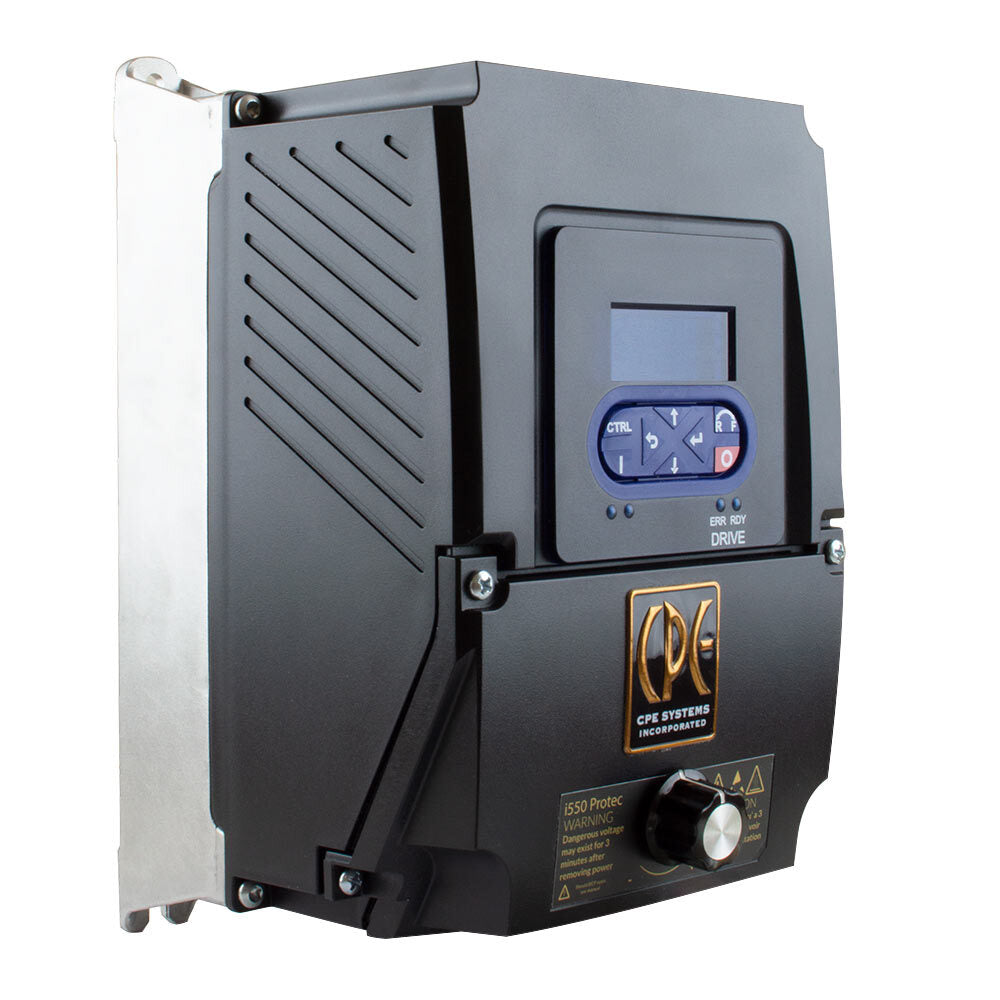

• NEMA 4X VFD with a Potentiometer

Technical Specifications

Horsepower

3/4 HP: This pump is ideal for Nano breweries and small wineries. The maximum flow is 50 GPM and the maximum discharge head is 45 feet.

1 HP: This pump is ideal for Nano breweries and small wineries in need of a bit more power for CIP applications. Maximum flow is 65 GPM and maximum discharge head is 55 feet

1 1/2 HP: This pump is ideal for small microbreweries and wineries needing more power for CIP applications. Maximum flow of 75 GPM and maximum discharge head of 55 feet for more demanding applications.
