Types of Centrifugal Pumps
The different types of centrifugal pumps sold by CPE Systems Inc.
February 14, 2023
We ship with FedEx across the USA and Canada →

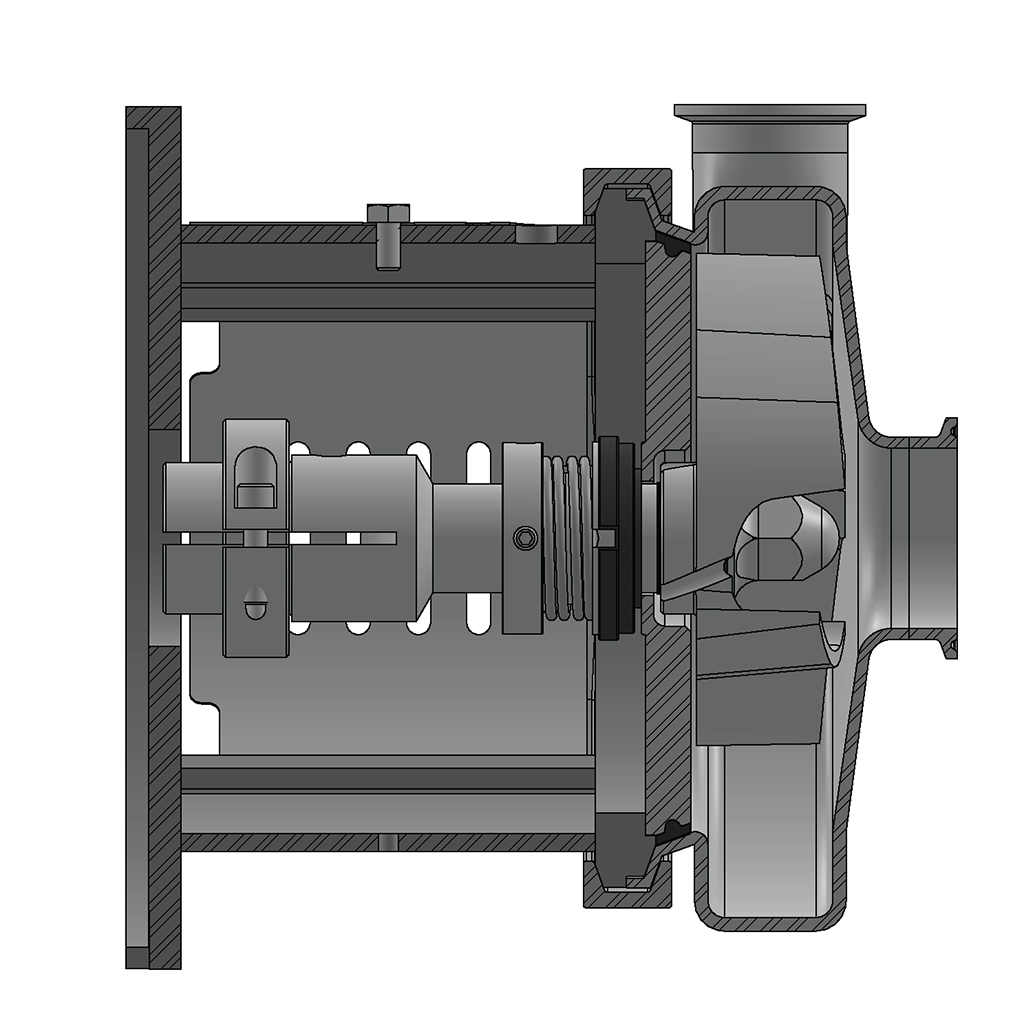

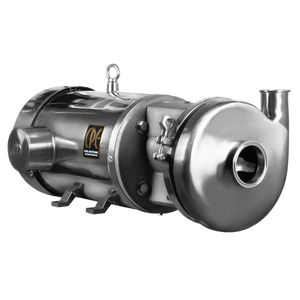

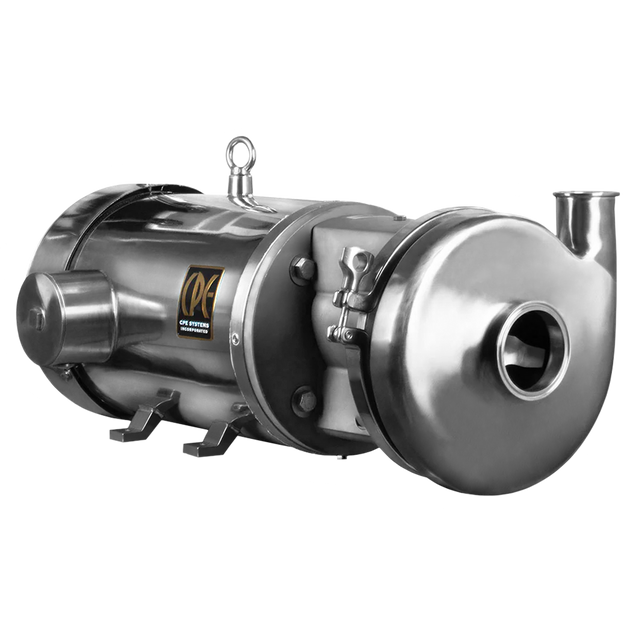

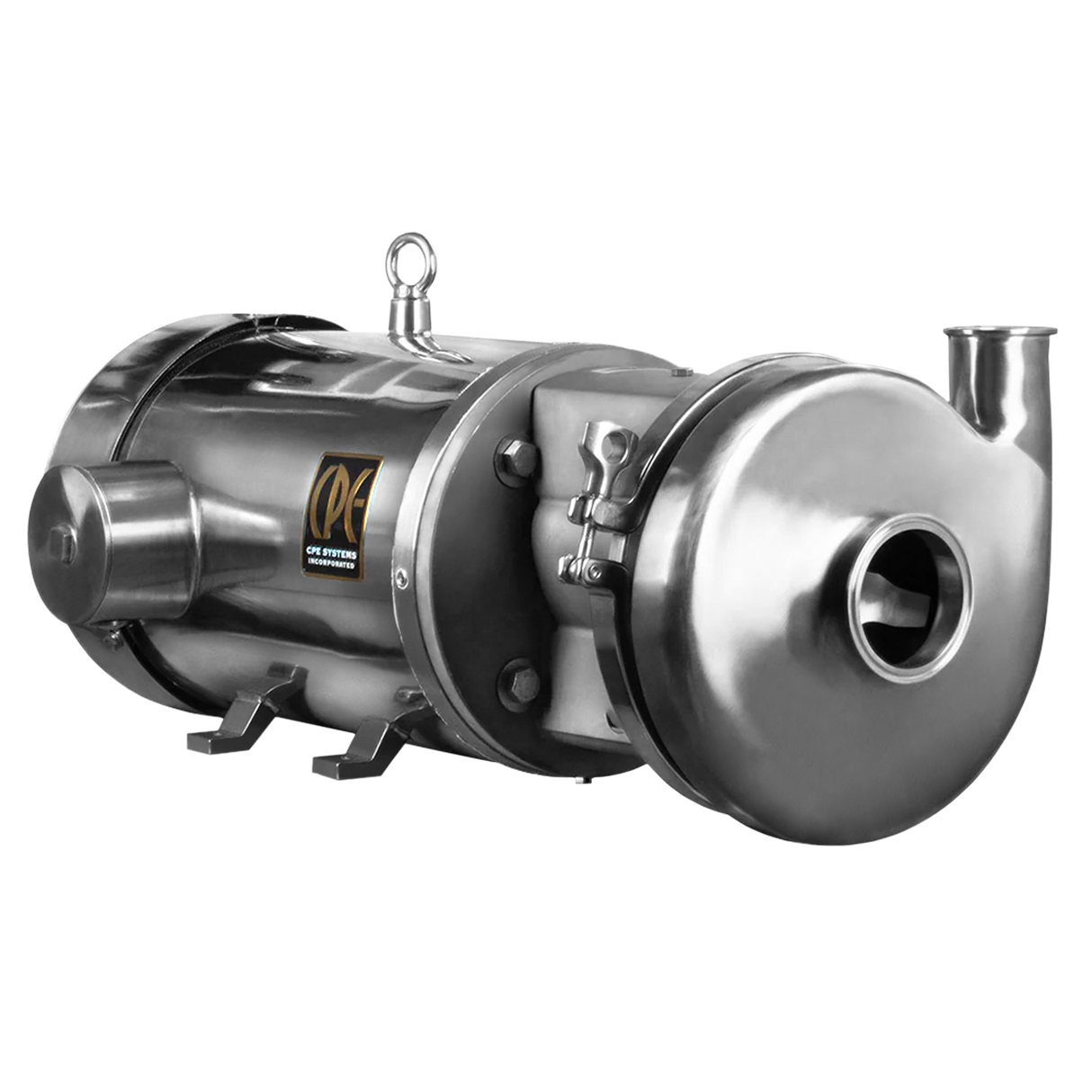

The CPE C+218/318MD is part of the C+series centrifugal pump family. This family of pumps are based on the C-Series, but feature a number of enhancements, including a collar that clamps down on the drive shaft over the full 360 degrees removing the minor wobble that can occur from set screwed shafts and two specialized gaskets to seal the shaft while still allowing a CIP procedure to clean behind the impeller. It is built with a stainless steel washdown motor that makes cleaning easier and quicker, reducing the issues caused by spillage. These pumps are workhorses that will give you years of excellent service.
The C+218 provides a 2 inch inlet, 1 1/2 inch outlet, and an 8 inch impeller, making it a very flexible pump for medium to large volume fluid processing.
The C+318 provides a 3 inch inlet, 1 1/2 inch outlet, and an 8 inch impeller, making it a very effective pump for scenarios in which a lower NPSH is available.
All pumps come standard with Tri-Clamp connections, but we can supply other connection types by special order. We have models up to 40 HP so for a pump larger than 15 HP please call us for pricing.
CPE C218/318MD Portable Pump Features and Options
Seal Options:
7 1/2 HP: The capacity of this pump is 170 GPM and it will put out 55 ft of head pressure
10 HP: The capacity of this pump is 225 GPM and it will put out 150 ft of head pressure
15 HP: The capacity of this pump is 250 GPM and it will put out 175 ft of head pressure
