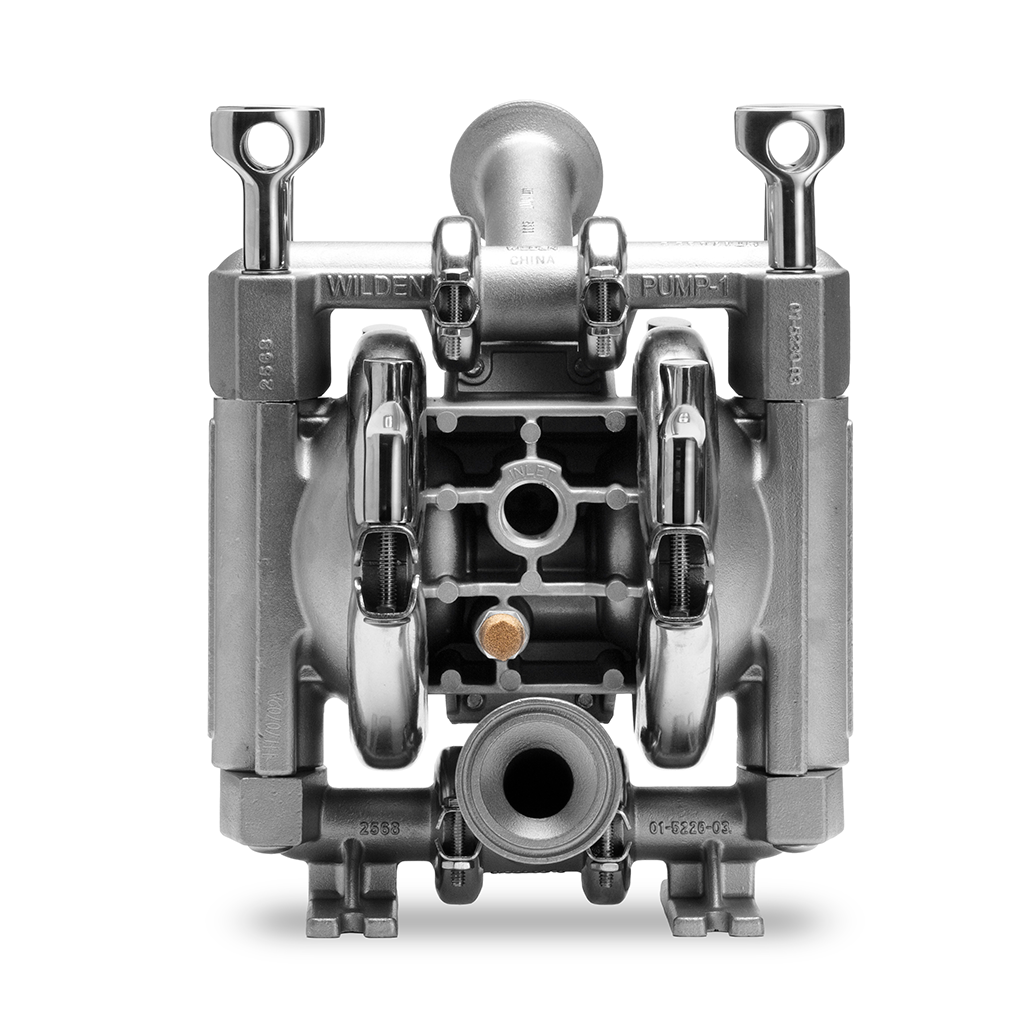

Wilden PS1 (1" Tri-Clamp) Saniflo FDA AODD Pump

The PS1 Saniflo Pro-Flo SHIFT FDA Pump by Wilden is an air operated double pump designed for use in food processing and other sanitary applications. It is built to meet FDA standards while delivering on durability and reliability. The PS1 pump features Pro-Flo SHIFT  technology, Wilden's state of the art air intake system that prevents overfilling of the air chambers and reduces air usage by up to 60%. The PS1 meets FDA and ATEX standards, making it perfect for sanitary applications where hygienic and CIP capabilities are not required.

The Wilden pump lines are highly customizable. If you require a specific configuration or help tailoring the PS1 to your application, please contact our sales team.

PS1 Saniflo FDA Diaphragms

All diaphragms are FDA compatible. Other diaphragms are available upon request.

Traditional Diaphragm

Wilden's traditional "pie shaped" diaphragm is the industry standard for AODD pumps. It is durable and reliable. The traditional diaphragm comes standard in Saniflex, but is also available in EPDM, Wil-Flex, Polyurethane, Buna-N, Neoprene, and FKM upon special request.

Full-Stroke PTFE Diaphragm

The Full-Stroke PTFE Diaphragm is designed to handle a variety of different abrasive products and aggressive chemicals. PTFE is chemically inert and is recommended for acids, caustics, ketones, aldehydes, and acetates. The PTFE diaphragm has increased displacement per stroke when compared to other diaphragms, resulting in enhanced flow rates and suction lift. This diaphragm has the same hardware and general design as the standard diaphragms, but has a more contoured shape and smooth surface than the TPE and rubber variations. Its unique shape and chemical and abrasion resistance makes this diaphragm ideal for aggressive applications. This diaphragm is available standard with Wil-Flex or Saniflex back-up material, while Buna, neoprene, and EPDM back-up materials are available upon special request.

PS1 FDA Saniflo Technical Specifications

• Wetted Parts and outer piston material: 316L stainless steel
• Liquid Inlet: 1" (25 mm)
• Liquid Discharge: 1" (25 mm)
• Connection Type: 1" Tri-Clamp
• Tube O.D.: 1/2" (13 mm)
• Air Inlet: 1/2" FNPT
• Valve: Ball Valve
• Max Diameter Solids: 1/16" (1.6 mm)
• Max Pressure: 125 psi (8.6 bar)

No manual available for download.
