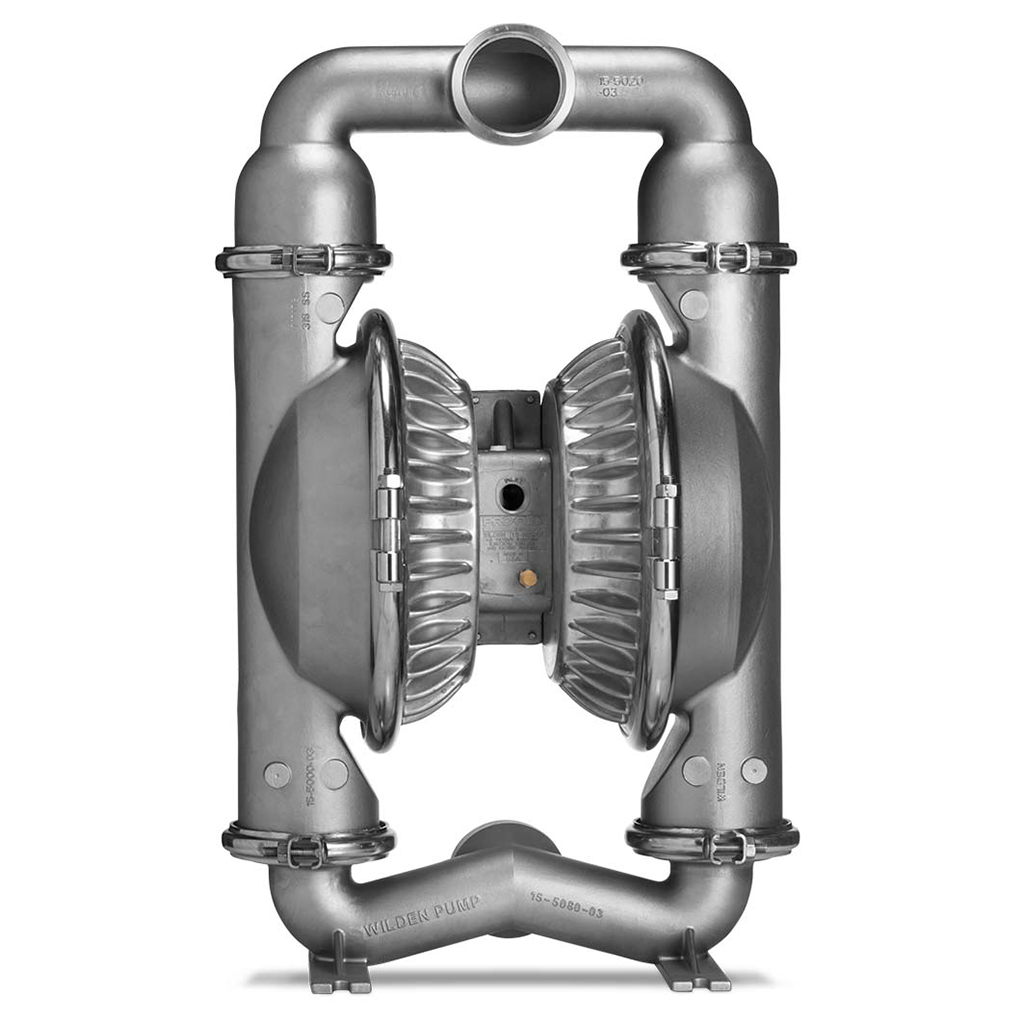

Wilden PS15 (3" Tri-Clamp) Saniflo FDA AODD Pump

The PS15 Saniflo FDA AODD pump is a stainless steel heavy-duty air operated diaphragm pump designed by Wilden for large scale sanitary processing facilities. It is designed to handle the wear and tear found in processing plants while delivering on reliability and saving you money on air. The PS15 features Wilden's Pro-Flo SHIFT technology, a newly designed air intake system that prevents overflow of the air chambers and uses up to 60% less air than the standard design. The PS15 meets both FDA and ATEX requirements, allowing it to be used in sanitary and hazardous environments.

The Wilden pump lines are highly customizable. There are a variety of materials, diaphragms, and valve styles to choose from. We have selected several standard configurations. If you require a specific configuration or help tailoring the PS15 to your application, please contact our sales team.

PS15 FDA Diaphragms

All diaphragms are FDA compliant and other diaphragms are available upon request.

Traditional Diaphragm

Wilden's traditional "pie shaped" diaphragm is the industry standard for AODD pumps. It is durable and reliable. The traditional diaphragm comes standard in EPDM and Saniflex, but is also available in Wil-Flex, Polyurethane, Buna-N, Neoprene, and FKM upon special request.

Full-Stroke IPD

The Integral Piston Diaphragm (IPD) is a popular choice in the food, beverage, and chemical industries. This diaphragm does not have an outer piston. The piston is fully integrated into the diaphragm. It is ideal for applications involving abrasive products and harsh environments. The IPD meets higher sanitary standards as the integrated piston removes the cavity between the outer piston and diaphragm found in a traditional design.  This also makes it easier to clean. Reduced stroke IPD is available upon request for applications with highly viscous products. The IPD diaphragm is available in Wil-Flex and Saniflex.

EZ-Install Diaphragm

The EZ-Install diaphragm is designed for applications where regular maintenance is required. The EZ-Install diaphragm does not need to be inverted, making it easy to install as it can be accessed without specialty tools. Easier maintenance means less downtime, and lower maintenance costs. This diaphragm is a direct replacement for traditional diaphragms, with the same performance, durability, and footprint. The PS15 EZ-Install diaphragm comes standard in Wil-Flex but is also available in Saniflex, Polyurethane, and Bunalast.

Full-Stroke PTFE Diaphragm

The Full-Stroke PTFE Diaphragm is designed to handle a variety of different abrasive products and aggressive chemicals. PTFE is chemically inert and is recommended for acids, caustics, ketones, aldehydes, and acetates. The PTFE diaphragm has increased displacement per stroke when compared to other diaphragms, resulting in enhanced flow rates and suction lift. This diaphragm has the same hardware and general design as the standard diaphragms, but has a more contoured shape and smooth surface than the TPE and rubber variations. Its unique shape and chemical and abrasion resistance makes this diaphragm ideal for aggressive applications. This diaphragm is available standard with Wil-Flex or Saniflex back-up material, while Buna, Neoprene, and EPDM back-up materials are available upon special request.

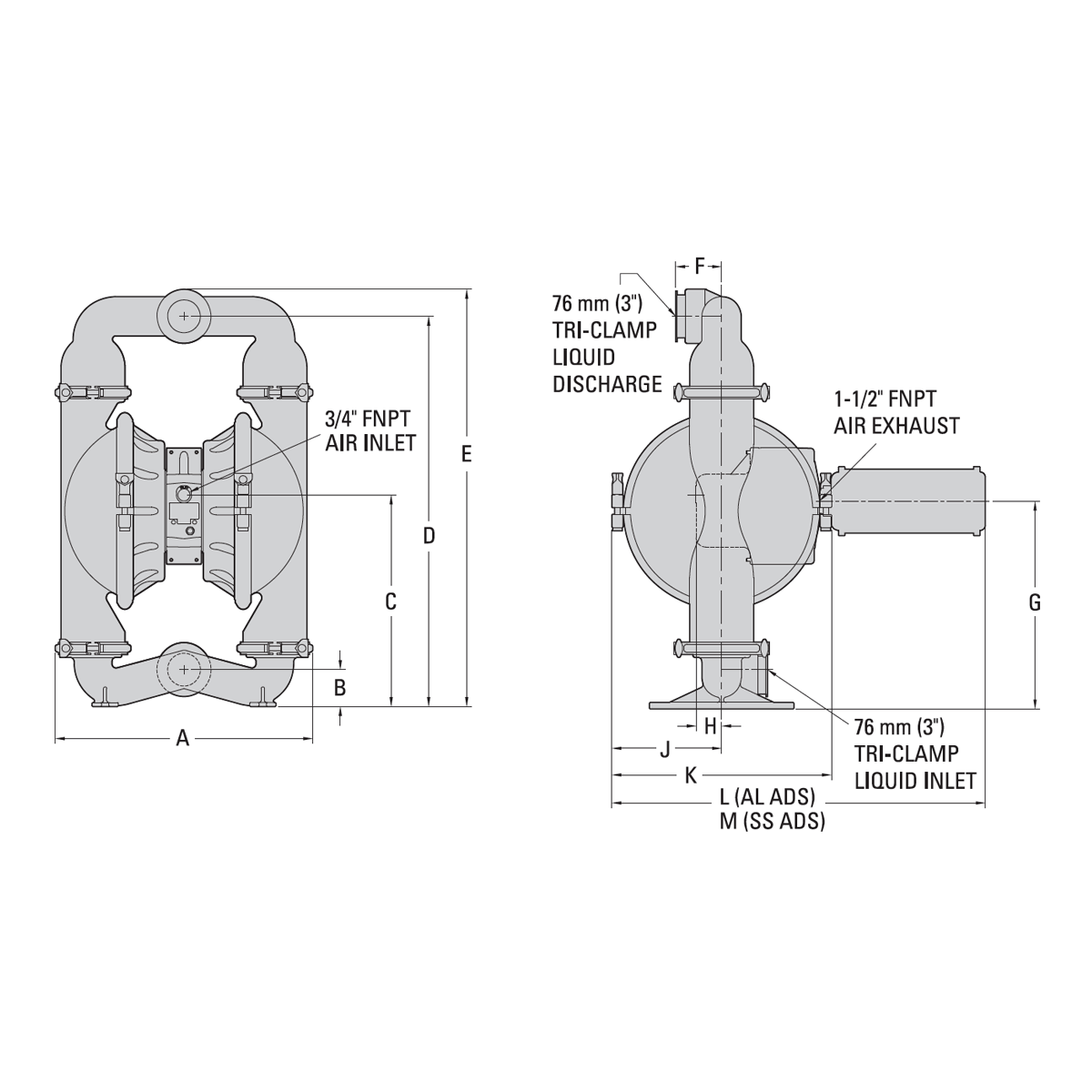

PS15 FDA Saniflo Technical Specifications

• Wetted Parts and outer piston material: 316L stainless steel
• Liquid Inlet: 3" (76 mm)
• Liquid Discharge: 3" (76 mm)
• Connection Type: 3" Tri-Clamp
• Tube O.D.: 3" (76 mm)
• Air Inlet: 3/4" FNPT
• Valve: Ball Valve

• Max Diameter Solids: 3/8" (9.5 mm)

• Max Pressure: 125 psi (8.6 bar)
• Finish: ~200 u-in finish

No manual available for download.
